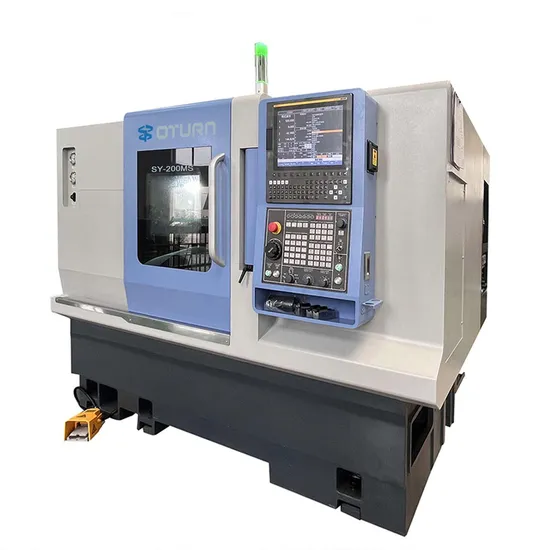

Precision Double Spindle CNC Lathe Machine with A2-6 Spindle and Mitsubishi Control

Precision Double Spindle CNC Lathe Machine with A2-6 Spindle and Mitsubishi Control

US$28,500.00-182,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SY200MS
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Control System
Fanuc, Siemens, Mitsubishi
Spindle
A2-6,A2-8,A2-11
Chuck
6,8,10,12inch
Tool Turret
Vdi or Bmt
Motor Power
11,15,18.5,22kw
Transport Package
Plywood Case
Specification
2600*2100*1900
Trademark
Oturn
Origin
China
HS Code
8458110090
Production Capacity
1000/Year

Product Description



Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability. It can maintain long-term reliable precision, processing stability, and tool life. Stress relief treatment improve accuracy and stability. The high-strength roller rail design and screw pre-tension drive system enhance response rigidity.
Both ends of the workpiece can be machined simultaneously in a single clamping, significantly simplifying manual operations, boosting output, and reducing processes. The second spindle, capable of full turning, handles workpieces during machining to reduce cycle times.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminates spindle vibration spindle, with nose end deflection accuracy within 0.002mm. This improves the surface finish of the workpiece.
The rear-mounted rotor ensures easy installation and maintenance.
The spindle motor features a cooling system that mitigates thermal displacement effects, maintaining consistent spindle working temperature. The spindle system undergoes rigorous dynamic balance testing, exhibiting excellent precision retention, high rigidity, and high efficiency. This enables the machine to perform both finishing and rough machining, as well as heavy cutting. Ideal for mass-producing complex, high-finish components.product.
2. High rigidity integral servo power turret: Known for rapid and precise tool changes. The tool holder features a high-rigidity BMT interface, driven by a servo spindle motor for power transmission.
3. Equipped with THK linear guide rails and ball screws, the heat-treated, precision-ground ball screws ensure optimal precision and durability. Each axis uses a direct transfer shaft structure with a double-anchor pre-relay method to minimize thermal displacement, significantly improving machining accuracy. High rigidity, large size, and heavy-duty linear slide rails maintain machine accuracy under impact, allow smooth displacement, and low noise, extending service life.
4. Standard configuration includes the FANUC system, with the feed drive utilizing a FANUC servo motor.
5. Perfect hydraulic and lubrication systems, incorporating high-quality hydraulic pumps, valves, and components, greatly reduce failure rates. The design is simple yet reliable.
6. Features a Taiwan rotary chuck, oil cylinder, and automatic chip removal device, significantly reducing operator labor intensity while ensuring safe, efficient production. These components can be programmed for control. Special fixture.
Product Parameters
Name Unit SY200MS
The largest diameter rotating bed mm Ф600
Max processing diameter mm Ф400
Max.Swing Over Cross Slide mm Ф300
Max processing length mm 290
Bar diameter mm Ф45/45
Spindle nose / A2-5
Spindle hole diame mm Ф56
Max speed of spindle rpm 5500
Spindle motor power kw 11
Spindle motor power Nm 61-125
Hydraulic Cylinder/Chuck / 6"
Spindle nose / A2-5
Spindle hole diame mm Ф56
Max speed of spindle rpm 5500
Spindle motor power kw 11
Spindle motor power Nm 61-125
Hydraulic Cylinder/Chuck / 6"
X/Z/S motor power kw 2.4/2.4/1.8
X/Z/S travel mm 240/230/360
X/Z/Y/S axis moving fast mm/min 20/20/20
Slide rail type mm 35
Positioning accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003
The Tool tower type mm/pcs BMT55-12T
Power cutter tower motor Kw 5
Max speed of spindle rpm 5000
The tool biock specifications mm 25x25
Circular cutter holder specification mm Ф40
The adjacent tool change time sec 0.15
Machine size mm 2600*2100*1900
Machine Weight kg 4500
Cutting fluid tank volume L 150
Volume of hydraulic unit box L 40
Hydraulic oil pump motor power kw 1.5
Volume of lubricating oil tank L 2L
Auto lube pump motor power W 50
Cooling water pump power W 750
