Monthly Deals Full Enclosed Cover Fiber Laser Marking Machine 20W with Raycus Laser Source

Monthly Deals Full Enclosed Cover Fiber Laser Marking Machine 20W with Raycus Laser Source

US$1,999.00-6,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
HBS-GQ-20E
Laser Visibility
Visible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Laser Source
Raycus
Guarantee
24 Monthes
Power
20W/30W50W
Average Lead Time
5 Days
Transport Package
Cartons
Specification
890*680*1050mm
Trademark
HBS Laser
Origin
China Beijing
HS Code
8456110090
Production Capacity
10000000

Product Description

fiber laser marking machine 20w with Raycus laser source/laser engraver with full enclosed cover
FIBER LASER MARKING MACHINE 20W
Technical Parameter:
Model HBS-GQ-20E
Laser Power 20W, 30W, 50W
Laser Wavelength 1060nm
Beam Quality <1.5
Laser Repetition Frequency ≤100KHz
Marking Area 110mm x 110mm
Making Depth ≤1.2mm (Adjustable with different materials)
Marking Speed ≤12000mm/s
Min. Line Width 0.01mm
Min. Character Size 0.05mm
Repetition Precision ±0.001mm
Power Consumption ≤500W
Power Supply 220V/50Hz/10A
Cooling method Air cooled

Optional Lens:
Focal Length 100mm 250mm
Marking Area 65mm x 65mm 175mm x 175mm

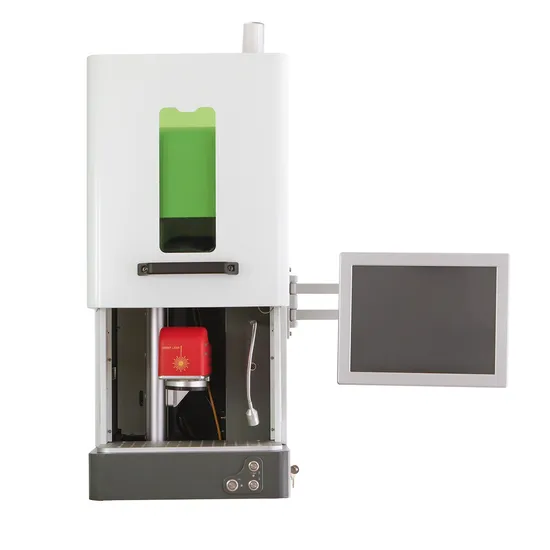

Products illustration & Parts introduction for HBS-GQ-20E
Complete Safety Cover: the machine is with complete cover design, fully comply with Germany laser safety regulations. The cover have safe system inside: when the door is not completed closed, or open when marking, the laser will shut off;
Warning Light: the warning light have three functions: when the machine is ready for marking or marking procedure is completed, the light will becomes green; when the machine is in operation or marking, the light will becomes orange or yellow; when the machine is not closed properly(someone open the door when the machine is working), or the machine is not safe, the light will becomes red and it will also alarm.
Touch Screen Panel Industry Computer: this computer is in integrated design, computer and the screen is in one part, it's touch screen, or it can controlled by remote mouse and keyboard.
The whole machine can be equipped with air fume extractor, which can absorb and filter the dust from air, prevent the inhalation of dust air and protect the operator.
Motorized Z axis: the marking head can moves up/down automatically with motorized motor system;
High Speed Scanner Head: installed with high speed scanner and achieves fast marking and engraving;
Focus Finder System: two extra focus pointer will showing the exactly focus(when two red line cross into one point, that means the marking head is in right position), helps the operator to find the focus very easily, enhance the production efficiency.
Calibration Aluminum Plate: used for fixing jigs for mass production. used for positioning of the parts exactly;
Button for Motorized A axis: there are two buttons for control the marking head moves up or down;
Internal controlling systems: inside of the door, it's the controlling system for the whole machine. This controlling system is specially designed, with fine lines layout, high safety and consistency of performance;
Detailed Technical Information
Machine Model HBS-GQ-20E
Laser Source Raycus Advanced+
Average power 20 watts
Laser Power Lifetime 100,000 hours (Theoretical data)
Fiber cable length 2.5m
Cooling Air cooling
Marking Wavelength 1064nm
Beam Quality <1.5
Laser Repetition Frequency ≤100kHz
Marking Depth 0-1.5mm (adjustable with power setting, speed, materials)
Marking Speed ≤12000mm/s
Minimum Line Width 0.01mm
Minimum Character Size 0.05mm
Repetition Precision ±0.001mm
Standard Marking Area(mm) 110*110
Optional Marking Area(mm) 75*75, 150*150, 160*160, 175*175, 200*200, 300*300
Focal Length Depends on marking area requirements
Power Consumption ≤500W
Machine Requirements AC220V(±10%), 50Hz(±10%), 10A
Operation Temperature -10ºC-60ºC
Humidity 5-95%
Control System Win7, Win8, Win10, Win XP,
RAM 2GB-16GB
HDD 500G
Marking Formats AI., PLT., DXF., TIFF., PNG., BMP., JPG. etc.
Computer Connection 2.0USB
Software Ezcad 2.9.0

Fiber Laser Marking Machine is the latest generation of laser marking system, resulting from our own research using the world's most advanced laser technology.
Adoption of fiber laser system for outputting laser, and then achieve marking functions by high-speed scanning galvanometer mirror system.
The electro-optical conversion efficiency of fiber laser marking can reach to 90% or above, it has higher beam quality in comparison to semiconductor laser marking machine.
The machine is designed for long-time maintenance-free.

Product Features
Extremely fast, with high-speed galvanometer.
Small volume, light weight.
No consumables, low power consumption, less than 500W.
Completely air cooled, do not need water chiller, lower power consumption.
Robust under harsh environment and temperature change, can operate with batteries or supply from automobile cigarette lighter in case of power failure.
Low product depreciation cost. Ability to meet customers' mass and stable production.
Marking sample
Product Application
The machine is assembled with fiber laser from Germany or Britain, or RAYCUS. The working time can reach 100,000 hours or above, competent in different work locations.
Fiber laser marking machines are used in a wide variety of applications such as in the marking of gold, silver diamond and other jewelries, sanitary tools, food packaging, tobacco packaging, beer and beverage packaging, pharmaceutical packaging, medical equipments, watches & glassware, automotive parts, plastic & paper material, electronic hardware, gold bullion, and also in other areas such as aviation, aircraft manufacturing, projectile body and explosion proof materials.
