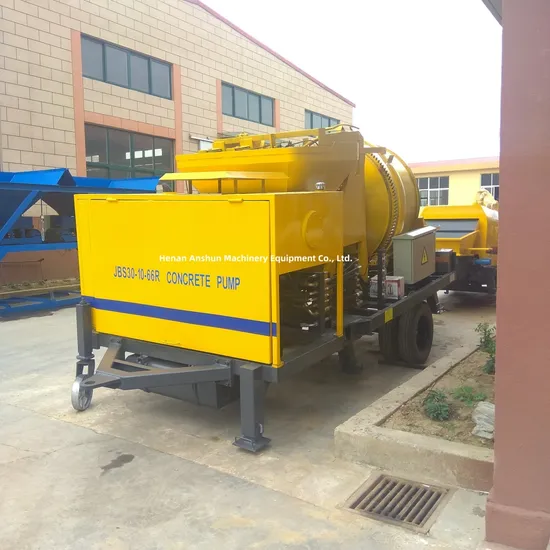

Factory Price Portable Concrete Mixer and Pump Machine Static Concrete Mixer Pump

Factory Price Portable Concrete Mixer and Pump Machine Static Concrete Mixer Pump

US$17,000.00-29,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
Optional
Type
Concrete Mixing Pump
Shotcrete Type
Wet
Machining Process
Welded Molding Machine
Structure
Cylinder Type
Productivity
20, 25, 30, 40, 50, 60, 80cbm/H
Feeding Height
1370mm
Vibrating Amplitude
Trailer Concrete Pump with Electric or Diesel
Certification
ISO9001: 2000, CE, BV
Condition
New
Color
Optional
Supporting Outrigger
4 Pieces Hydraulic Legs Supporting
Mixing Drum
0.45 Cubic Meter
The Type of Distribution Valve
S Tube Valve S
Pumping Capability
40 Cubic Meter Per Hour
Mixing Capability
20 Cubic Meter Per Hour
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Brand
Anshun Machinery
Power
Electric, Diesel, or Generator
Capacity
1000 Set /Year
Transport Package
Standard Exporting Package
Specification
According to model
Trademark
Anshun
Origin
Henan, China
HS Code
84134000
Production Capacity
4000 Sets/Year

Packaging & Delivery

Package Size
4960.00cm * 2050.00cm * 2000.00cm
Package Gross Weight
5000.000kg

Product Description

Product Description
A concrete mixer pump is a construction equipment that combines concrete mixing and pumping functions. It is widely used in construction engineering, bridge construction, tunnel engineering and rural infrastructure construction. The equipment integrates the functions of a concrete mixer and a concrete pump. It can directly mix concrete on site and transport it to a designated location through a high-pressure delivery pipeline, greatly improving construction efficiency and reducing labor costs.
Product Parameters
Items
Units
Parameters
JBTS30
Whole performance of machine Max. theo. concrete output
m3/h 30
Max.concrete throughput
m3/h 15
Mixer rated feed capacity m3 0.65
Mixer rated discharge capacity m3 0.45
Max.concrete pumping pressure
MPa 10
Distribution valve type S Valve
Concrete cylinder diameter×stroke mm Ф140×845
Hopper capacity L 700
Outlet diameter mm Ф100
Power system Diesel engine kw 66
Electrical engineering power kw 66
Rotate speed r/min 1800
Winding motor power kw hydro-motor
Stir the motorPower kw
Water pump motor powe kw
Hydraulic system Circuit type Open circuit
Pumping system pressure MPa 32
Mixing system pressure MPa 6-8
Capacity of oil tank L 350
The biggest transportation is away from vertically (/Level) m 120/300
Other parameters Max. aggregate diameter mm Scree: 40
Aggregate mixer mm 60mm
Inside diameter of delivering pipe mm Ф80
Dimensions:length×width×height mm 6000x2300x3150
Total weight kg 5000

Performance Features
1.One machine for two purposes: It combines mixing and pumping in one, reduces equipment investment and improves construction efficiency.
2.Strong adaptability: It can be applied to various working conditions, such as rural construction, building construction, road construction, etc.
3.High degree of automation: It is easy to operate and equipped with a remote control system to reduce manual intervention and improve safety.
4.Energy saving and environmental protection: It adopts efficient power system and hydraulic technology to reduce energy consumption and pollution.
5.Efficient and stable: It adopts advanced S-valve reversing technology and hydraulic system to ensure stable concrete delivery.


Product Application
1.Rural and urban residential construction: suitable for small projects such as new rural construction and building construction.
2.Road, bridge and tunnel construction: can be operated in narrow or complex terrain to improve construction efficiency.
3.Water conservancy projects: used in dams, flood control projects and other scenes to achieve efficient concrete transportation.
Mixer trailer pumps have become one of the indispensable important equipment in modern construction due to their high efficiency, convenience and strong adaptability.
Company Profile
Henan ANSHUN Machinery Equipment Co., Ltd. is a modern enterprise that integrates research and development, production, sales, and service of mining crushing, construction sand and gravel aggregate, and crushing and sand making. As one of the first companies to pass the ISO9001 quality certification system and an EU CE-certified company, the company produces and sells products to Southeast Asia, Central Asia, Africa, the Middle East, and other countries and regions. The perfect after-sales service management system has made the company′s products recognized and praised by the industry. The ANSHUN brand is well-known at home and abroad and has become a shining pearl in the mining machinery manufacturing industry.
Packaging & Shipping

Certifications
FAQ
Support:
We can not only provide the good machines, but also wholeheartedly provide the comprehensive for our clients. The series of professional technology service will make you have an excellent product experience.
After-sales service support :
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Technological support :
ANSHUN Machinery has been largely adopting new technologies, new techniques and high-tech equipment. And ANSHUN Machinery also has strict and effective quality control system. We have obtained ISO9001:2000, TUV and CEquality system certificate.
