Basic Info.
Automatic Grade
Automatic
Type
Two Roll Mill Machine
Place of Origin
Shandong, China
Diameter of Roll(mm)
400 mm
Roll Ratio(Front/Back)
1:1.27
Warranty of Core Components
1 Year
Video Outgoing-Inspection
Provided
Applicable Industries
Manufacturing Plant
Key Selling Points
Long Service Life
Core Components
PLC, Motor
Cooling Mode
Water Cooling
Length of Roll(mm)
1000 mm
Machinery Test Report
Provided
Transport Package
Suitable for Long Time Sea Transportation
Production Capacity
200sets Per Year
Product Description
Best Quality Two Roll Open Rubber Mixing Mill With Factory Price XK-450 Product Description
Introduction: Rubber mixing mill is engineered to provide unmatched performance for masticating and kneading natural rubber, synthetic rubber, eva or pvc pellets with various chemical materials, the final materials can be fed to calender, hot presses or other processing machine for making rubber or plastic products. This machine is mainly used to plastic, hot mill and mixing mill of natural and synthetic rubber for rubber product factory. Rubber mixing mill is used for plasticizing, mixing, thermal refining and sheeting of rubber(plastic), widely used for tyre factory,conveyor belt factory, reclaimed rubber factory and shoes factory, etc. Advantages: 1) Hardened gears reducer ,low noise ,high quality, competitive price. 2) The machine main uses are following in rubber product factory: Natural rubber refining, raw rubber and compound mixing. Rubber beating, mixing and rubber tab letting. 3) This machine is double roller opening to be used for rubber mixing. It consists of seat, Frame, Rubber, Driving device, Lubricator and cooler, range adjusting device of roller. Safety brake, Motor and reducer, etc. 4) The roller is made from safety cooled and hard cast steel, smooth surface is polished. in term of different case. Saturated steam and cooling water can be inputted in the empty roller to adjust speed of roller. Colloidal particles are drawn into the gap of the two rollers which make relative rotation in different velocity to mix rubber. 5) Complete Emergency stop &interlock protection system with reverse running function ensures a 100% safety 6) High efficiency, energy saving and brand new mill design significantly reduces installation space. 7) Rollers are made of NiCrMo alloy steel through centrifugal casting, hardness is around HS76. 8) Roller bearings are adopted with ZWZ, best brand in China, other brand is optional upon requirement. 9) Roller bearing supports and glands are made of superior casting steel through annealing treatment. 10) Frame is made of casting iron through annealing treatment, steel welding structure is also available. 11) Bedplate is integral welding structure, made of superior steel through annealing treatment. 12) Rducer adopts with precision hard gears secures high torque, low noise and extra long service life. 13) Speed ratio gears are made of 42CrMo through heating treatment. Features: 1) The roll is made of chilled cast iron of vanadium and titanium alloy, so the surface is hard and wearable.The internal processing can make the temperayure of the roll surface well-proportioned. 2) This machine has overload protection devices,and the major comonents cannot be damaged because of over loading. 3) This machine is equipped with emergency braking device. When an emergent accident haens, draw the pull rod, and then the machine will stop at once. It is safe and reliable. 4) The transmission system adopts hardened teeth reducer, which has comact structure, low noise and high efficiengy. 5) The base of the machine is a complete frame, it's very convenient for installation and not vibration. Product Parameters
Model | XK-300 | XK-360 | XK-400 | XK-450 |
Working diameter of rolls(mm) | 300 | 360 | 400 | 450 |
Working length of rolls(mm) | 750 | 900 | 1000 | 1200 |
Working linear speed of front roll(m/min) | 15.73 | 16.25 | 18.65 | 24.5 |
Speed ratio of front and rear roll | 1:1.17 | 1:1.25 | 1:1.27 | 1:1.27 |
Max. gap (mm) | 10 | 10 | 10 | 10 |
Max. Capacity per batch(kg) | 10-20 | 20-25 | 18-35 | 25-50 |
Driving motor power(kw) | 22 | 37 | 45 | 75 |
Overall size(L*W*H) mm | 3580*1550*1695 | 3940*1780*1740 | 4200*1850*1870 | 5200*2380 *1770 |
Around weight(tons) | 5.2 | 6.5 | 7.6 | 12.0 |
Model | XK-550 | XK-560 | XK-610 | XK-660 |
Working diameter of rolls(mm) | 550 | 560/510 | 610 | 660 |
Working length of rolls(mm) | 1530 | 1530 | 2000 | 2130 |
Working linear speed of front roll(m/min) | 22.5 | 22.5 | 30 | 28.6/25.8 |
Speed ratio of front and rear roll | 1:1.2 | 1:1.2 | 1:1.098 | 1:1.24 1:1.09 |
Max. gap (mm) | 15 | 15 | 15 | 15 |
Max. Capacity per batch(kg) | 50-65 | 50-65 | 90-120 | 100-150 |
Driving motor power(kw) | 110 | 110 | 160 | 180/250 |
Overall size(L*W*H) mm | 6320*2180*1880 | 6500*2300*2000 | 6475*3146*2035 | 7465*3662*2750 |
Around weight(tons) | 22 | 22 | 34.5 | 43/47 |

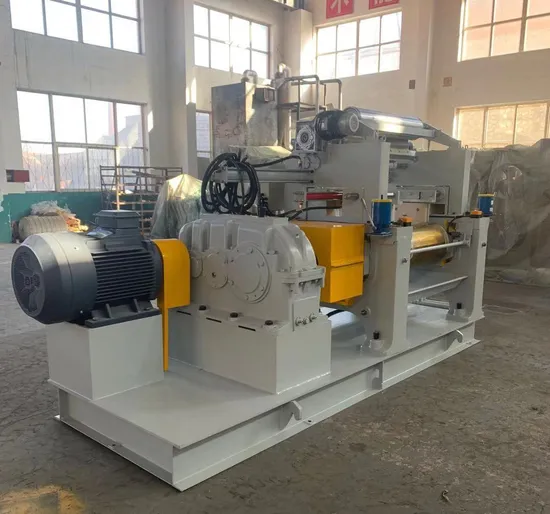

Detailed Photos
Packaging & Shipping
Company Profile Qingdao Libang Industry Products Co.,Ltd is a professional manufacturer of rubber machines for over 20 years.
