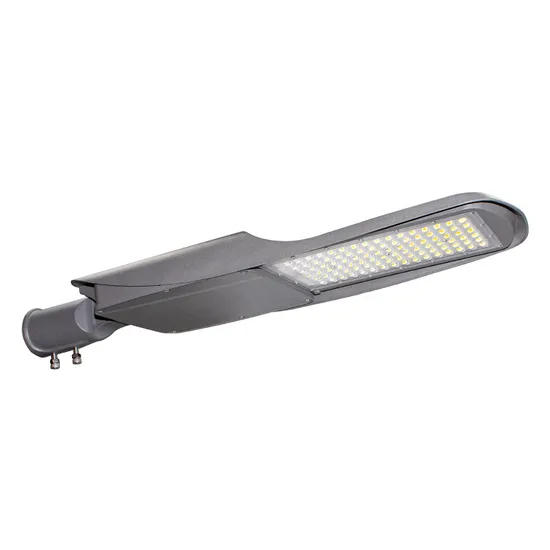

CE, ENEC, CB, RoHS, IP66, Jyl06m 160lm/W High Brightness 100W LED Street Light

Product Description

Dear friend,
Here is vivi, sales from Zhejiang Jinyuan Optoelectronics Co,.ltd. I started in this field since 2008.
I am really happy to share you our new arrival JYL06M led street light in this special day. Here is some information about our lamp.
Jinyuan is one of the most trusted lighting brands. Since 1994, Jinyuan has been synonymous with high-quality, reliable, innovative technology that improve people's lives.
Jinyuan brand covers the complete range of lighting applications, from home, office, and industry to street lighting, horticulture, sports, and more.
Features:
• Optics of Type2 to Type4 available on request;
• High-transmittance and anti-UV Polycarbonate lens;
• Excellent thermal management design;
• Die-casting aluminum with polyester powder coat finish;
• IP66/IK09 rating for outdoor usage;
• Easy installation and low maintenance;
• Energy savings, no UV and IR radiations, emits low heat;
• Optional light-controlled and microwave induction function;
• ENEC/CE/RoHS/IK09/IP66 approval;
• 2-5 years warranty
1 Application
Mainly used for outdoor lighting.
2. Product Features
(1). Patented technology, "Flying" appearance.
(2). Integrated structure design, simple and beautiful.
(3). Use of 5050 high thermal conductivity EMC bracket, LED junction temperature is lower.
(4). Electrostatic spraying, strong corrosion resistance, durable.
(5). Angle adjustable, horizontal installation -15° to +15° adjustable, vertical installation: 0° to +15°.
(6). Human ergonomic light distribution, uniform road lighting.
Products characteristics:

1	Model	JYL06-100M	JYL06-120M	JYL06-150M	JYL06-200M
2	Work voltage	AC100-277V 50/60HZ
3	Power	100W	120W	150W	200W
4	Driver efficiency	≥90%
5	Power factor	≥0.95
6	LED quantity	96pcs
7	LED TYPE	5050
8	Light efficiency	140-170lm/W
9	Color temperature	2700K-6500K
10	CRI	Ra70
11	Beam angle	155*60°
12	Pin temperature rise	≤45ºC
13	Operating temperature	-30ºC~+45ºC,10%~90%RH
14	Storage temperature	-30ºC~50ºC
15	LED life	>50,000h
16	Luminous flux Maintenance rate	5 years ≥90%
17	Surge voltage	≥4KV
18	Body material	Aluminum+PC
19	Product size(mm)	785*236*84
20	Packing size(mm)	800*250*120
21	N.W.(KG)	3.24~3.8
22	IP	IP66
25	Electric Shock Protection Class	1
26	Service Life	≥3-5years

If you need more information, like price, datasheet, original photos, IES file, Test report, we will support you. Please contact us.
Our production line:
We welcome you to shop our superior line of led outdoor streetlights, flood lights, path lights, wall washer lights, garden lights which are all crafted for professional results. At Jinyuan optoelectronics, we have the perfect led lighting system for all of your outdoor lighting design applications.
