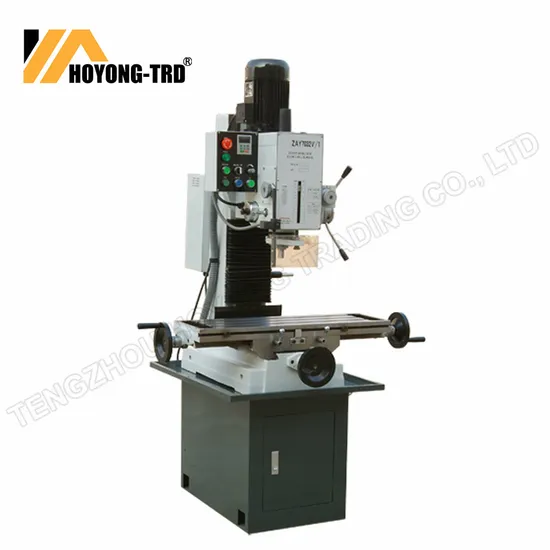

Zay7032V Zay7040V Zay7045V Variable Speed Portable Mini Bench Type Drilling Milling Machine
| US$700.00-2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZAY7032V
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Program Control
Automatic Grade
Automatic
Precision
Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Layout
Vertical
Number of Shaft
3
Hole Diameter
<50mm
Drill Capacity
32mm
Taper
Mt3
Motor
1.1kw
Spindle Travel
130mm
Table Size
800X240mm
Transport Package
Plywood Case
Specification
125kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84595900
Production Capacity
10 PCS/Month
Product Description
DRILLING MILLING MACHINE FEATURES:
The main performance characteristics:
Variable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
PRODUCT MAIN TECHNICAL PARAMETERS:
| ITEM | ZAY7032V | ZAY7040V | ZAY7045V |
| Drilling capacity | 32mm | 40mm | 45mm |
| Max Face mill capacity | 63mm | 80mm | 80mm |
| Max End mill capacity | 20mm | 32mm | 32mm |
| Distance from spindle nose to table | 400mm | 400mm | 400mm |
| Min.distance from spindle axis to column | 285mm | 285mm | 285mm |
| Spindle travel | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Range of spindle speed (2 steps) | 100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, | 100-530,530-2800r.p.m, |
| Swivel angle of headstock (perpendicular) | ±90° | ±90° | ±90° |
| Table size | 800×240mm | 800×240mm | 800×240mm |
| Forward and backward travel of table | 175mm | 175mm | 175mm |
| Left and right travel of table | 500mm | 500mm | 500mm |
| Motor power(DC) | 1.1KW | 1.1KW | 1.5KW |
| Voltage/Frequency | 110V or 220V | 110V or 220V | 110V or 220V |
| Net weight/Gross weight | 300kg/350kg | 310kg/360kg | 310kg/360kg |
| Packing size | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
