DC Control AC Heat Sink 220V Relay to 3-32VDC SSR Relay-25da 40da Plastic Cover Solid State Relay SSR

Product Description

Product Description Solid state relay(SSR) is an electronic switch, which contains no moving parts. Its load current is conducted by one or more semiconductors. The types of SSR are photo-coupled SSR, transformer-coupled SSR, and hybrid SSR.Solid state relays are widely used in testing instruments, displays, power plant, household appliances and automobiles etc.
Detailed Photos
Product Parameters Specification

Model	HHG1-1/032F-22 2A (SSR-DA)
	HHG1-1/032F-38 2A (SSR-DA)
	HHG1-0/032F-20 2A (SSR-DD)
Control Voltage	032:3-32VDC
Control Current	6-35mA
Make-on Voltage	3VDC
Break-off Voltage	1VDC
Reverse Voltage	32VDC
Load Voltage	AC:22:30-240VAC,38:40-440VAC
	DC:20:12-200VDC
Load Current	2A
Instant Voltage	AC:22:600VAC;38:900VAC
	DC:20:220VDC
Voltage Drop	AC:<1.6VAC,DC:<1.2VDC
On-off Time	AC:≤10mS,DC:≤5mS
Leakage Current	AC:≤10mA, DC:≤5mA
Dielectric Strength	≥1500VAC
Insulation Resistance	500MΩ,500VDC
Ambient Temperature	minus30 to 80ºC
Indicate Methods	/

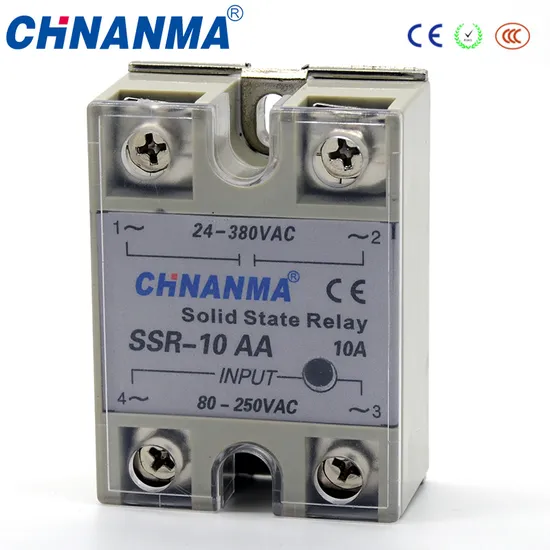

Description of solid state relay

Control Voltage		90-250VAC
Control Current		5-30mA
Turn-on Voltage		90VAC
Turn-off Voltage		10VAC
Load Voltage		22:30-240VAC,38:40-440VAC
Load Current		10A,15A,20A,25A,30A,40A,60A,80A
Transient Voltage		22:600VAC,38:900VAC
On-state Voltage Drop		<1.6VAC
ON-OFF Time		≤10mS
Off-state Leakage Current		≤10mA
Dielectrics Voltage-resistance		≥2500VAC
Insulation Resistance		500MΩ 500VDC testing
Ambient temperature		-30~80?
Dimensions		63L*45W*26H
Indicated Methods		LED
Installation		Screw fixing
