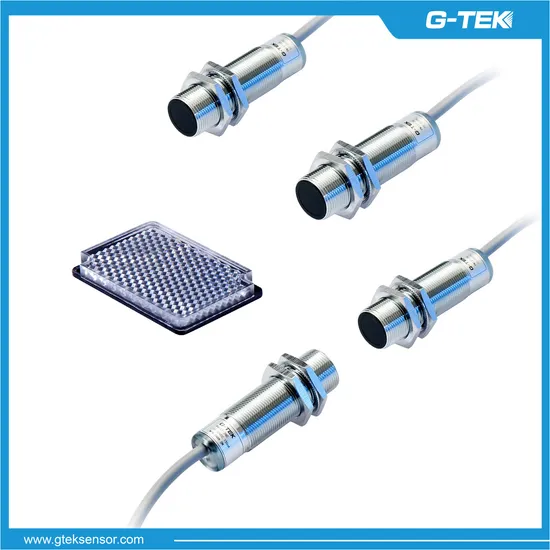

Cylindrical Round Shape Through Beam Photoelectric Switch, Photo Sensor for Rapid Doors

Product Description

Product Description PM18T opposed type photoelectric sensor is our most popular model used at turnstiles. PM18T photoelectric sensor installed at the turnstile gate entrance is used to detect whether people intrude into the turnstile gate. When swiping the card outside the yellow line, there is no object at the gate entrance, and the sensor signal is normal, the wing door will open; if the person goes inside the yellow line, the sensor signal at the gate entrance changes, even if swiping the card, the wing door will not open. The purpose of this design is to prevent the opening and closing of the wing gate when swiping the card at a short distance, which may cause potential safety hazards, and also prevent ticket evasion. The product detection distance is 20m , with Reverse polarity protection, over-current and over-voltage protection functions, Epoxy resin sealing against rugged environment.

Product Series	Product Model	Supply Voltage	Sensing Distance	Housing	Output Mode	Action Mode
PM18T	PM18T-2ND	10~30V DC	20m	stainless steel	NPN	Dark On
	PM18T-2NL				NPN	Light On
	PM18T-2PD				PNP	Dark On
	PM18T-2PL				PNP	Light On

Photoelectric sensor	PM18T-2ND
Detection Type	Opposed type
Detecting Object	Min Φ18mm opaque object
Detecting Distance	20m
Supply Voltage	10~30V DC
No-load Current	Max.40mA
Response Time	Max.15ms
Light Source	Infrared LED(modulated)
Action Mode	Dark On
Control Output	NPN open collector
Indicator	Power indicator:Green Action indicator:Red
Circuit Protection	Reverse polarity protection, short circuit protection, over voltage protection
Ambient Brightness	Sunlight:Max.11000lx;Fluorescent:Max.3000lx
Ambient Temperature	-20~+60ºC(Non-freezing),Storage:-25~+75ºC
Ambient Humidity	0~90%RH
Material	Housing:Cr plated Cu,Lens:PMMA
Cable	Emitter:blackΦ5. 2×0.3mm ²; Receiver: GreyΦ5. 3×0.2mm ²
Protection Rate	IP67
Accessory	Screw

Photoelectric sensor	PM18T-2NL
Detection Type	Opposed type
Detecting Object	Min Φ18mm opaque object
Detecting Distance	20m
Supply Voltage	10~30V DC
No-load Current	Max.40mA
Response Time	Max.15ms
Light Source	Infrared LED(modulated)
Action Mode	Light On
Control Output	NPN open collector
Indicator	Power indicator:Green Action indicator:Red
Circuit Protection	Reverse polarity protection, short circuit protection, over voltage protection
Ambient Brightness	Sunlight:Max.11000lx;Fluorescent:Max.3000lx
Ambient Temperature	-20~+60ºC(Non-freezing),Storage:-25~+75ºC
Ambient Humidity	0~90%RH
Material	Housing:Cr plated Cu,Lens:PMMA
Cable	Emitter:blackΦ5. 2×0.3mm ²; Receiver: GreyΦ5. 3×0.2mm ²
Protection Rate	IP67
Accessory	Screw

Company Profile Tianjin G-TEK sensor technology co..ltd is indicated in providing intelligent sensor products and customized solutions for logistics automation, factory automation and process automation. The predecessor of the company is Tianjin G-TEK automation technology Co.,ltd, a professional sensor manufacturer and sensor solution provider, which was established in 2003 with business ranges from Proximity switch,photoelectric sensor,measurement and safety light curtain to Laser rangefinder sensor,laser radar., etc and serves for Intelligent buildings, intelligent transportation, logistics automation, factory automation and industry robot fields.
Tianjin G-TEK sensor technology co.,ltd was established in 2014 at Xiqing district , Tianjin City and it will fully inherit and expand the original G-TEK automation business with the construction and operation of the new R&D and manufacture base.

G-TEK Sensor Product List
1	Photoelectric Sensor	PMF21/PMF50/PMF55/PMF80 /PM18/PS18/PT12 series
2	Proximity Sensor	IM12/IM18/IM30/IF17 series
3	Infrared light curtain	LSM/LSMC/LSE/LSEC series
4	Safety light curtain	LSA series
5	Infrared vehicle separator	LHA/LHAC/LHN/LHNC series
6	Loop detector	GVD3/GVD1 series
7	Laser radar	LSD/LND series
8	3D TOF product	GDC1100/GDC1101/GDC1102
9	Other sensor product	Microwave radar, Revolving door Anti-pinching sensor
