Textile Machinery Textile Lab Equipment Diaper Penetration Tester

Product Description

Product Description

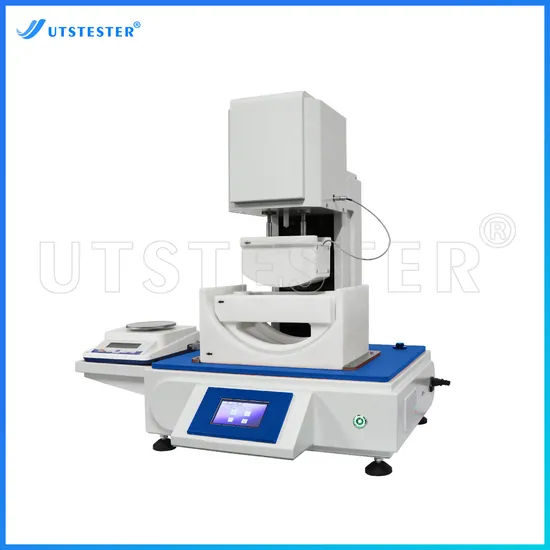

Diaper penetration tester Used to measure the penetration performance of diapers and diapers such as absorption rate, reosmosis and leakage.
Features1, touch screen control, Chinese and English menu, man-machine dialogue mode, convenient operation.
2, built-in thermal printer, convenient on-site quick printing test results.
3, professional computer analysis software can achieve two-way operation with the computer.
4, high precision peristaltic pump, ensure the accuracy of penetrating liquid capacity.
5. Automatic filling and testing without manual filling.
6, electrode selection of special materials processing, good induction, electrode automatic positioning.
7, using stepper motor and high precision ball screw drive, accurate travel control.
8, automatic data processing, test average, standard deviation, coefficient of variation can be obtained.
9, built-in high-precision balance, after weighing directly calculate the amount of leakage and infiltration.

Standard

GB/T 28004.1-2021 Diapers -- Part 1: Baby diapers GB/T 28004.2-2021 Diapers -- Part 2: Adult diapers

Product Parameters

Model	MB19
Accuracy of timing device	0.01s
Liquid filling device	liquid filling volume deviation ±2mL, liquid filling flow rate: 200~800mL/min
Scale accuracy	0.01g, range 300g
Electricity source	AC220V 50Hz 100W
Exterior size	820×575×750mm
Weight	62kg
