CNC Round Rotary Plywood Die Cutting Machine with Cheap Price Rotary Die Making
Basic Info.
Model NO.
WT-RC
Spindle Layout
Vertical
Spindle Number
Double-Spindle
Feed Mode
Mechanical
Controlling Mode
CNC
Certification
CE
Customized
Customized
Condition
New
Color
Blue White
After-sales Service
Provided
Weight
1700kg
Support File
Dxf Dwg CDR Plt
Power
3kw 220V Single Phase
Working Length
3000mm
Working Diameter
170-800mm
Material Thickness
13mm, 16mm
Working Material
Beech, Plywood
Cutting Speed
600-1000mm/Minute
Cutting Accuracy
+/-0.1mm
Motor
3kw Dorna Server Motor
CNC or Not
Yes
Service
Online
Air Supply
0.6 MPa
Usage
Rotary Wood Sawing
Recommend Spare Parts
Saw Blade
Transport Package
Sea-Worthy Wooden Packing
Specification
4200*1200*2200
Trademark
WT
Origin
Dongguan City China Prc
HS Code
8441100000
Production Capacity
200PCS/Year
Product Description
CNC Rotary Die Board Cutting MachineWT-RC Auto CNC Cutting Machine Technical Parameters:
| Technical Parameters | |||
| Cutting Speed | 600-1000mm/minute | ||
| Cutting Gap | 1.42 mm | ||
| Cutting Accuracy | +/-0.1mm | ||
| Server Motor | 3KW DORNA Server Motor | ||
| Main Axis | 20000r /min high speed main Axis Make sure the cutting accuracy | ||
| Gas | Air compressor supported to blow dusty, no need air dryer | ||
| Cooling system | CW-3000 Chiller to cooling main motor | ||
| Working Material | Beech, Plywood etc. | ||
| Material Thickness | 13mm, 16mm, etc. | ||
| Material Length | <=3000mm | ||
| Internal Diameter | 170-800mm | ||
| Best Files format | DXF,DWG,CDR,PLT | ||
| Weight | 1700kg | Volume | 4200*1200*2200 |
| Power | 3kw 110V 220V/ 60HZ 50HZ Single Phase | ||
| Usage | In Rotary Die Making, it Cut Rotary Die Board | ||
| Recommend spare parts | Saw Blade | ||
| H.S Code | 8441100000 | ||
WT-RC Auto CNC Cutting Machine Features: Features : Specially developed software can import your CAD designs of corrugated box, computer controls cutting drill on servo motors to do cutting job on rotary die board, exactly same as your design. Cutting Unit: It cuts with special drill. (one drill can cut several even more than 10 sets of dies)It is not laser. Advantages: Compared to Hand Cutting: higher accuracy, higher efficiency and perfect cutting
Compared to Laser Cutting: low power consumption, low running cost, milling cutter consumption only, no need expensive air, no carbonization which results in better steel rule holding ability. More Environmental protection. Fully automatically drilling cut the installation hole, one-time to complete the rotary die cutting process

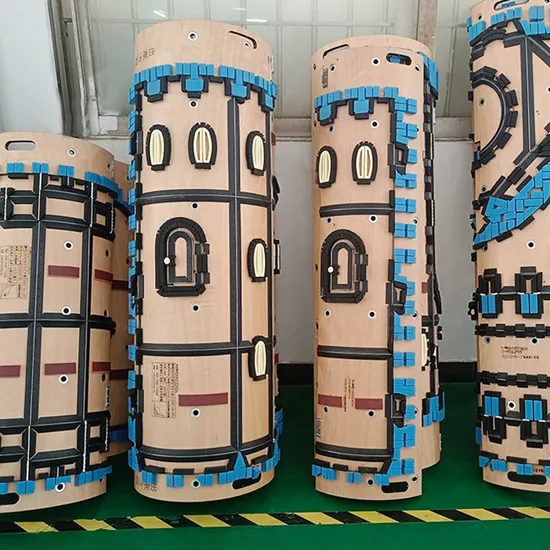

WT-RC Auto CNC Cutting Machine Pictures:
