Red Coating Nano-Crystalline Magnetic Ring for Audio Signal Output Input

Product Description

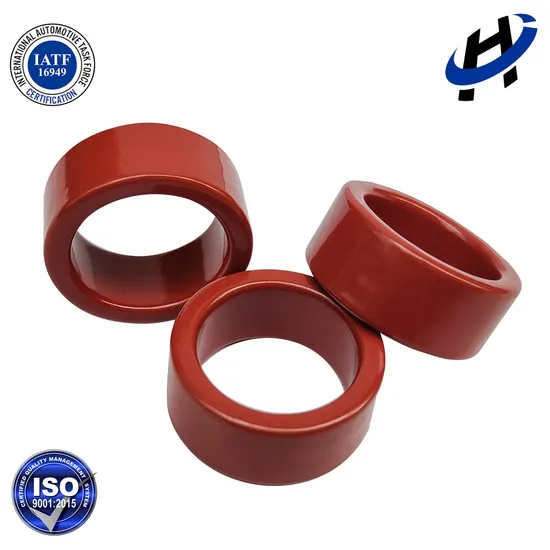

Product Description Red Coating Nano-crystalline Magnetic Ring

Benefits of Nanocrystalline Core:

1. High saturation magnetic induction (Bs)

2. Low core loss compare to other core materials

3. Good frequency and temperature characteristics,usable to 3000KHz

4. Good DC Bias characteristics

5. Low leakage flux

6. Size saving and lighter weight compare to others

Detailed Photos
Product Parameters

Typical Parameter
Item No.				JH252010
Description				Red Coating Nano-crystalline Magnetic Ring
Density				7.25g/cm3
Curie Temperature				Tc =570ºC
Crystallization Temperature				Tx =510ºC
Saturation				Bs= 1.2T
Electrical Resistivity				Ρ=100Ω-cm
Saturation Magnetostriction				λs=2~3
Item Weight (g)				16
QTY/CTN (PCS)				840
Carton Size (cm)				31.5*31*17
Net Weight / CTN (KGS)				11
Gross Weight / CTN (KGS)				12
Package Optional				Various packages meet your demands
Standard Product list:
Item No.	Core Dimensions (mm)			Finished Dimensions (mm)			Core Cut Area (mm2)	Ave. magnetic path length (mm)	AL(µH)
	OD	ID	HT	OD	ID	HT			10KHZ (±30%)	100KHZ (Min)
JH181308	17.5	12.6	8	20.1	9.3	9.6	15.29	47.26	33	4.5
JH201208	20	12	8	22.5	9.8	10.1	24.32	50.24	60	7
JH201210	20	12	10	22.15	10.2	11.6	31.2	50.24	65	8
JH211510	21	15	10	23.9	12.8	13.2	24	57	25	5.25
JH221310	22	13	10	24.1	11.2	11.9	35.1	54.95	70	9
JH251608	25	16	8	28	13	11.5	28.08	64.37	55	5.5
JH252010	25	20	10	27.8	17.4	12.8	19	70.65	31	4
JH261610	26	16	10	28.8	13.7	12.8	38	65.94	72	9
JH281810	28	18	10	30.2	16.2	11.4	39	72.22	60	7
JH302010	30	20	10	32.7	17.7	12.8	38	78.5	60	7
JH302015	30	20	15	32.05	18.05	16.7	58.5	78.5	75	10
JH322008	32	20	8	35	17.5	11.5	31.2	78.5	55	6
JH322010	32	20	10	35	17.5	13	39	78.5	60	7.5
JH372415	37.8	24.2	15	41	21.7	17.5	79.56	97.34	85	13.5
JH383115	38	31	15	41.2	28	17.5	40.95	108.33	70	9
JH382320	38	23	20	41.2	20	22.5	117	95.8	90	14
