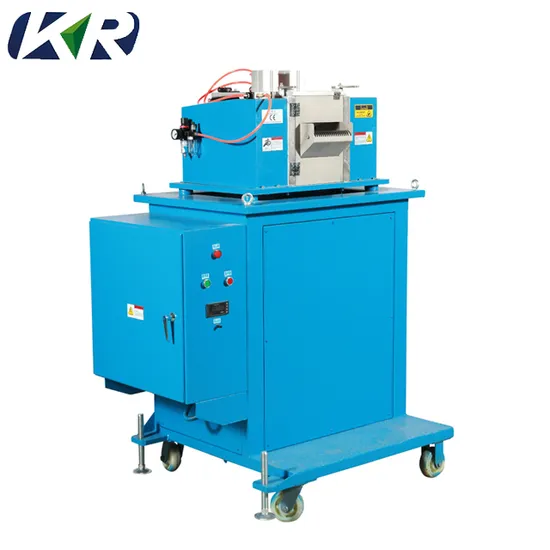

CE&ISO 3*3mm Pellet Plastic Raw Material Cutter /Pelletizer
| US$2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KR-LQ 300
Material Processed
Plastic Flakes
Plastic Type
PE, PP, PVC, ABS, WPC, Polystyrene, PA, EVA,Pet
Screw
Double-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Power
3kw
Effective Rotation Speed
350-1000rpm
Driver Control
Frequency Inverter
Dimension
120*100mm 32 Tooth
Hual off Speed
0-96m/Min
Capacity
300kg/Hr
Voltage
380V 50Hz
Weight
200kg
Standard Pellet
3*3mm
Condition
New
Transport Package
Wooden Case or Pellet Covered by Plastic Fi
Specification
CE ISO9001
Trademark
kairong
Origin
Nanjing Jiangsu(Mainland)
Production Capacity
150sets/Year
Product Description
Parameter Table
| Type | Model | Power | Cutting strand | Granules size(mm) | Max output(kg/h) | Knife number | Rollor length (mm) |
| cantilever | LQ-25 | 0.75 | ≤3 | φ3×3 | ≤40 | 14 | φ60×50 |
| gantry | LQ-60 | 1.1~1.5 | ≤8 | φ3×3 | ≤60 | 14 | φ120×96 |
| cantilever | LQ-300 | 3~4 | ≤14 | φ3×3 | ≤300 | 32 | φ200×100 |
| gantry | LQ-300 | 3~4 | ≤18 | φ3×3 | ≤300 | 24 | φ100×150 |
| cantilever | LQ-500 | 5.5~7.5 | ≤30 | φ3×3 | ≤500 | 32 | φ120×200 |
| gantry | LQ-500 | 5.5~7.5 | ≤30 | φ3×3 | ≤500 | 32 | φ100×200 |
| gantry | LQ-900 | 11~15 | ≤40 | φ3×3 | ≤900 | 32 | φ100×300 |
| gantry | LQ-2000 | 15~22 | ≤60 | φ3×3 | ≤2000 | 32 | φ120×400 |
Function:
Planer type pelletizer is fit to pelletize glass fibre , minerial, enhanced plastics, rubber mixer, PVC, PBT, PA,PP,PE,PS,PET, ABS and other plastics strand pelletizing.
Detailed features:
Cantilever granulator with unique structure,easy maintance,low nosie,high production efficiency,long service life.
Adopt independent pelletizing chanber design,convenient to change color and clean-up remained-material.Cutting tool material are all hard alloy cutter,the more rotary cutter quantity,higher abrasion resistance ,diced evenly, cut flat.
Granulator uses polyurethane roller traction,higher tensile strengh,steady traction,It is suitble for cooling strands pelletizing of high -yield,high strengh engineering plastics, espencially for srands pelletizing of glass fiber reinforced plastic
