Sinotruk Sinotruck HOWO Waste Refuse 4X2 6X4 Light Dump Cargo Heavy Trailer Tank Hook Lift Swing Arm Transport Garbage Compactor Sanitation Vehicle Truck

Sinotruk Sinotruck HOWO Waste Refuse 4X2 6X4 Light Dump Cargo Heavy Trailer Tank Hook Lift Swing Arm Transport Garbage Compactor Sanitation Vehicle Truck

US$13,500.00
1-4 Pieces
US$9,000.00
5+ Pieces

Basic Info.

Model NO.
ZZ1067G3815D1
Type
Compactor
Certification
ISO9000, CCC, CE
Volume
3001-6000L
Emission Standard
Euro 2
Transmission Type
Manual
Payload
3t
Fuel
Diesel
Drive Wheel
4×2
Brand
Sinotruk
Models
Small
Usage
Compression Type
Condition
New
Tanker Volume
6-20m3
Manipulator
as Order
Transport Package
Nude
Trademark
SINOTRUK
Origin
Qingdao, China
HS Code
8705909990
Production Capacity
10000 Units/Year

Product Description

Product Description SINOTRUK HOWO waste Garbage truck 4x2 6m3
The compressed garbage truck is one of the urban sanitation equipment, which is responsible for collecting garbage from various regions, initially compressing it, and transporting it to the compression station.
Detailed Photos

Product Parameters

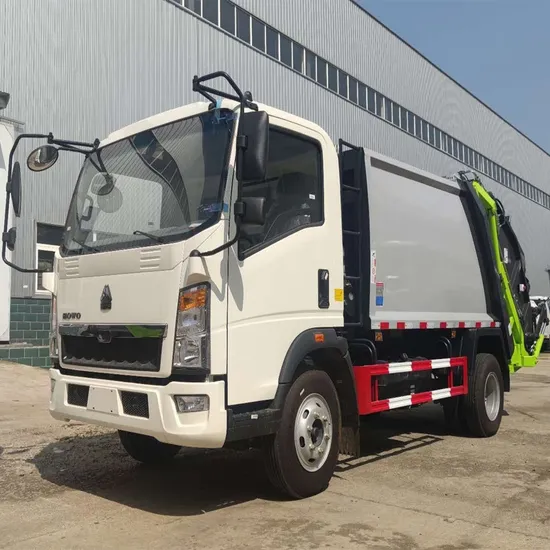

Sinotruk HOWO 4x2 Garbage Compactor Truck
Chassis Model ZZ1068G3815D1 (Left/ Right Hand Driving Type Optional)
Engine Model: YC4110, Euro 2, 116HP
4-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 4.6 L
Clutch Single-plate dry diaphragm spring clutch,hydraulically operating with air assistance
Gearbox Manual operation, WLY653, 6 forward and 1 reverse
Front Axles 2700kg with drum brake system
Rear Axles 7200kg, with drum brake system
Suspension Leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Steering System Hydraulic steering with power assistance
Braking System Front drum rear drum brake, four-circuit protection valve
Service brake: dual circuit compressed air brake
Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels
Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms
Tires 7.25R16, with one spare tyre
Fuel Tank Volume (L) 120
Dead Weight(kg) 6500
Gross Vehicle Weight (kg) 11000
Overall Dimension (LxWxH) (mm) 7200x2400x3050
Wheelbase (mm) 3800
Effective Mixing Voulume(m3) 6
Time of one filler cycle(s) ≤60
Time of discharge(s) ≤90
Production Line and Shipping
Company Profile
After Sales Service
Main Products
FAQ
1: Payment: A:30% advance payment after signed the contract, 70% balance should be paid before delivery. We can accept T/T and L/C 2. Delivery time: A:25-45 working days after payment is received. According to different trucks models 3. How about your product quality? A: The products have passed the ISO, CCC, SGS, BV, and CONTECNA qualification certification. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed. 4: How long is the warranty period? A:The warranty of our products is 1 year or 50000km, which comes first
