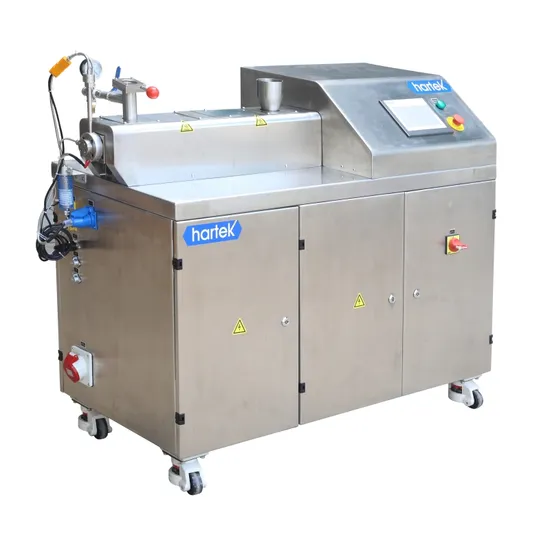

16mm Twin-Screw Extruder – Ideal for Hme (Hot Melt Extrusion) in Polymer and Pharmaceutical Applications

16mm Twin-Screw Extruder – Ideal for Hme (Hot Melt Extrusion) in Polymer and Pharmaceutical Applications

US$41,999.00 1 Set (MOQ)

Basic Info.

Model NO.
HTGD-16
Product Type
Extrusion Molding Machine
Feeding Mode
Optional Forced Feeding
Assembly Structure
Separate Type Extruder
Screw
Twin-Screw
Engagement System
Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Exhaust
Automation
Automatic
Computerized
Computerized
Customizable
Yes
Model
HTGD-16
Screw Diameter
16mm
Length-Diameter Ratio
40:1
Motor Power
2kw
Rotational Speed
600rpm
Temperature
350ºC
Temperature Control Accuracy
±1ºC
Melt Pressure Measurement Range
0~35MPa
Yield
0.1~5kg/H
Weight
268kg
Pharmaceutical
Suitable for Drug Manufacturing (Hme Method)
Transport Package
Standard Export Wooden Packing
Specification
1382*690*1230mm
Trademark
Hartek
Origin
China
HS Code
847720

Product Description

Application range of hot melt extruder:
* General plastics, engineering plastics, elastomers and other materials mixing, mixing extrusion granulation
* Blending modification and reactive extrusion of composite materials
* High efficiency mixing of polymer alloy
* Polymer filling enhanced modification
Performance characteristics of hot melt extruder:
* The extruder is driven by brand variable frequency motor, stable plasticizing and good consistency;
* Building block barrel and screw structure, convenient and quick process adjustment;
* Quick-opening head and net changer, fast cleaning and net changing;
* Choose the brand (Dynisco) melt pressure and temperature sensor, the test data is precise;
* Computer-based measurement and control system and friendly operation interface, easy to operate, more powerful;
* Emergency shutdown device and various safety protection to ensure the safety of operators;
* With the corresponding auxiliary machine, it can be combined into granulation, calendering, casting film and other experimental lines.
* High intelligence, easy to operate.
Technical parameters of hot melt extruder:
Model HTGD-16
Screw diameter 16mm
Length-diameter ratio 40:1
Motor power 2kW
Speed 600
Max Temperature 350ºC(optional 450ºC)
Temperature control accuracy ±1
Melt pressure measurement range 0~35
Output 0.1~5
Weight 268
Dimensions 1382×690×1230

FAQ:
1.Where is our factory?
Hartek: Our factory is located in guangzhou city, guangdong province, China, about one hour by car from guangzhou baiyun airport . All our clients from home or abroad, are warmly welcome to visit us!
2.Why choose us?
Hartek:(1)We have complete system of designing of our equipment.
(2)We can provide the perfect management solutions.
(3)We master the core techonology in this extruder industry.
3.What's the payment method?
Hartek: We accept by T/T ,Western Union,Paypal. 30% down payment should be paid after contract is valid, 70% balance should be paid before shipment.
4.Can we see the running machine in your factory?
Hartek: Yes.Before making your decision buying the equipment or not,you can bring some material here to test-run the equipment.
5.How long of the warranty time?
Hartek:We offer you high quality machines with 12 months guarantee.
6.What is your packaging?
Hartek: After doing the anti-rust treatment, wrap the plastic film around the machine and then fix the machine on the standared export wooden boxes.
7.How can we check the machines before delivery?
Hartek:We can provide online checking when testing the machine on site. We will take and prepare detailed testing videos for your checking before the delivery.
