Steam Heating Design Single Facer Machine for Making Corrugated Cardboard

Steam Heating Design Single Facer Machine for Making Corrugated Cardboard

US$13,200.00-17,500.00 1 Piece (MOQ)

Basic Info.

Condition
New
Certification
ISO 9001:2000
Automation
Automatic
Suitable for
Paper
Paper Thickness
Thin Paper
Brand
Bhs, Tcy, Champion Corrugation Line
Usage
Making Corrugated Cardboard
Use for
3/5/7ply Corrugated Cardboard Line
Machinery Test
Provided
Place of Origin
China
Heating Type
Steam
Transport Package
Export Packing
Trademark
YIKE GROUP
Origin
China
HS Code
84413090
Production Capacity
50 Sets /Month

Product Description

Steam Heating Design Single Facer Machine For Making Corrugated Cardboard Structural Features
1.Adopt vacuum suction structure, with high pressure strong blower. Suction with silencer. 2,base and wallboard cast iron wall, Wallboard thickness130mm.universal Joints.
3,corrugated roller material adopt 48CrMo Alloy steel.
Roller diameters parameters
1,diameter of corrugated roller: ¢280mm
2,diameter of pressure roller: ¢284mm
3,diameter of glue roller: ¢216mm
4,diameter of preheat roller: ¢320mm


main purchased parts,materials and place of origin
Name of main parts Brands or place of origin Material and type
Wall and Pedestals Production own HT200
Rotary joints and metal hoses Shan dong teng zhou luguanqiu
Main drive motor Hebei Hengshui 7.5Kwspeed motor
bearing HRB,ZWZ,CYC or Zhengjiang wanxiang
Seat belt bearing Zhengjiang five rings
High pressure air Shanghai Yingfa
cylinder Zhengjiang Sanzheng
contacts Chint or de li xi

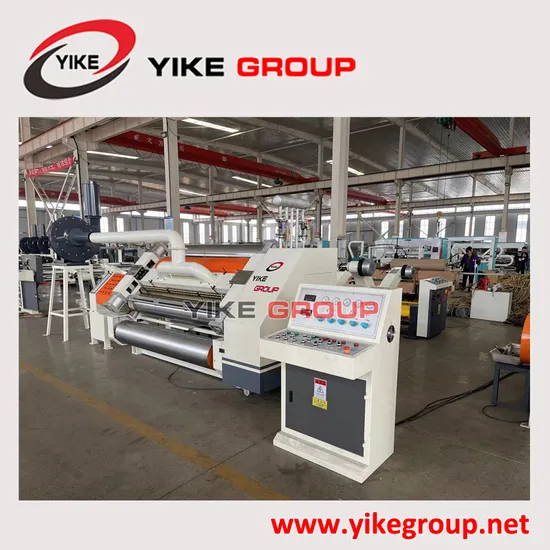

Product show
