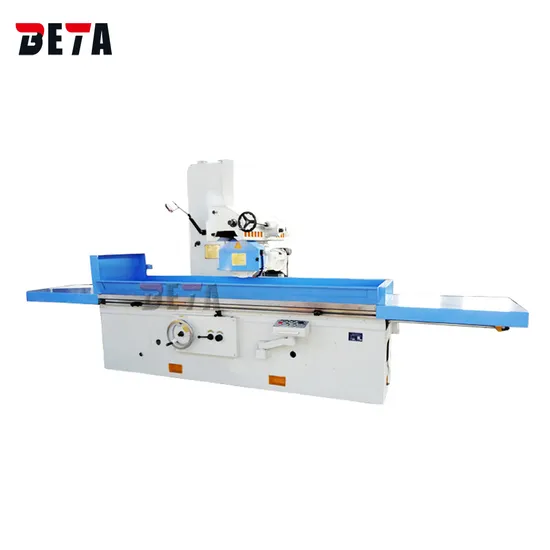

Hydraulic Manual Surface Grinder M7163 Grinding Machine
Basic Info.
Model NO.
M7163
Type
Surface Grinding Machine
Processing Object
Metal
Abrasives
Grinding Wheel
Controlling Mode
Manual
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Name
Big Type Hydraulic Manual Wheelhead Moving Surface
Model
M7163
Worktable Size
1250X630mm
Wheel Speed
1440rpm
Grinding Type
Surface Grinding for Metal
Chuck
Magnetic Chuck Table
Delivery Time
1 Month
Warranty Time
12 Months
Voltage
380V
Longitudinal Moving
Hydraulic
Grinding Wheel Size
400X40X127mm
OEM
Available
Color
Blue and White
Function
Flat Surface Grinding
Coolant
Standard
Transport Package
Wooden Case
Specification
1250x630mm
Trademark
BETA
Origin
Shandong, China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
321.00cm * 190.00cm * 250.00cm
Package Gross Weight
6300.000kg
Product Description
Hydraulic Manual Surface Grinder M7163 Grinding MachineStandard configuration:
Digital readout system wheel flange standard grinding wheel balancing arbor balancing stand balance plate and screw coolant tank & water pipe Leveling wedge and bolt, wheel dresser stand with diamond pen, electromagnetic chuck open-end wrench, screwdriver, inner hexagon spanner, tool box
| Model | M7163*1250 | |||
| Working table | Table size(L * W) | mm | 1250*630 | |
| Max movement of working table(L * W) | mm | 1350 | ||
| T-Slot(number * width) | | 5×18 | ||
| Speed of working table | m/min | 3--25 | ||
| Grinding head | Max distance from spindle center to table surface | mm | 800 | |
| Max travel of grinding head Cross (Manual and hydraulic) | mm | 700 | ||
| Max travel of grinding head Vertical (Manual) | mm | 600 | ||
| Spindle speed | rpm | 1440 | ||
| Wheel Size (Outer diameter * width * Inner diameter) | mm | φ400×40×φ127 | ||
| Scale on the vertical handwheel | mm | 0.01 | ||
| Grinding head feed per revolution of handwheel | mm | 1 | ||
| Total power | kw | 12 | ||
| Spindle motor | Power | kw | 7.5 | |
| Speed | r/min | 1440 | ||
| Rapid up and down motor | Power | kw | 0.37 | |
| Speed | r/min | 1440 | ||
| Oil pump motor | Power | kw | 4 | |
| Speed | r/min | 960 | ||
| Coolant pump motor | Power | kw | 0.125 | |
| Speed | r/min | 2800 | ||
| Oil pump | Flow | L/min | 125 | |
| Working pressure | MPa | 1.5 | ||
| Working precision | The parallelism of working surface to base level | mm | 1000:0.015 | |
| Surface roughness | µm | Ra0.63 | ||
| Weight | N.W./G.W. | kg | 5600/6300 | |
| Overall dimension (L*W*H) | mm | 3210x1900x2500 | ||
