Basic Info.
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Computerized
Computerized
Certification
CE, ISO9001:2008
After-Sales Service Provided
Overseas Service Is Available
Delivery Days
3-5 Working Days
Customers
All Over The World
After-Service
Professioanl Enginers Who Can Speak English
Transport Package
Standard Packaging
Specification
CE, SGS, ISO9001
Production Capacity
200 Set/Month
Product Description

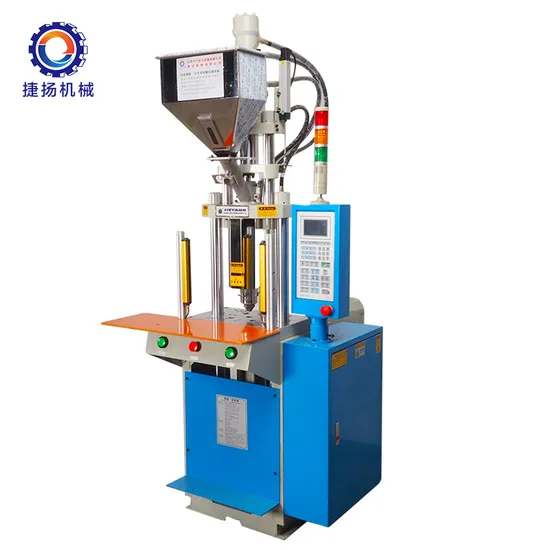

Jieyang Vertical Plastic Injection Machine
Function:
1.Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.
2.With double slide table or rotary design, putin, take out products and molding finish at the same time,
which is more safe and efficient for production , then reduce the cost of production.
3.High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold
clamping work together to greatlyextend machine & mold life.
4.Nitride and NIP/ Nitroflon coated screws and barrels are long-lasting, robust and provide superior acid
alkaline ,resistance.
5.Standard : Varuable Pump for Energy Saving 30%-50%
Parameter of Machine:
Model | Unit | JY-160S2 |
Screw Barrel Diameter | mm | 26 | 28 |
Injection Pressure | kg/cm2 | 1183 | 1019 |
Max. Shot Weight | gram | 50 | 58 |
Max. Shot Weight | cm3/sec | 34.6 | 40 |
Screw Barrel Route | mm | 105 |
Screw Barrel Rotary Speed | rpm | 0-215 |
Nozzle Contact Force | tons | 4.45 |
Nozzle Retraction Nozzle | mm | 130 |
Number of Temperature Control | pcs | 2 |
Clamping Force | tons | 15 |
Platen Size | mm | 450*280 |
Distance Between Tie Bere | mm | 265 |
Min. Mold Height | mm | 100/25 |
Opening Stroke | mm | 190 |
Max. Opening Mold Distance | mm | 290/215 |
Ejetor Force | tons | 1.3 |
Ejetor Stoke | mm | 35 |
Max. Hydraulic Pressure | kg/cm2 | 140 |
Pump Output | L/min | 17.5 |
Oil Resservoir Capacity | Liter | 80 |
Cooling Water Consumption | L/hr | 400-600 |
Pump Motor Power | kw/hp | 2.2/3HP |
Barrel Heating Power | kw | 1.8 |
Total Power | kw | 4.2 |
Machine Weight | tons | 0.45 |
Machine Dimension(LxWxH) | meter | 1.35*0.92*2.06 |
Shipping Weight | tons | 0.6 |
Shipping Measurements(LxWxH) | meter | 1.3*1.0*2.23 |
Application :
About Us
Packing & Shipping
Our Services
1) 24 hours services, the answers to any questions will be replied sooner.
2) Direct factory services, exclusive and unique solution can be provided to you by our professional engineers and staffs teams.
3.)Materials suppliers offered ,the contact ways to different kinds of the materials and equipments of your products can be supported here, you can contact them by yourself .
4) After-sales services, engineers available to service machinery overseas; besides, the videos and document of solution will be sent at once.
5) The full and specific set of the subject for your project will be offered for you by free after we get touch with you.
6)12 Months Warranty and spare parts of machine will be offered within 3 days to avoid to waste your production time.
FAQ
Q1: Are you a trading company or a manufacturer?
A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements
Q2: What's your warranty for the machine?
A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.
Q3: What's your Delivery Time?
A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.
Q4: Where is your factory? How can visit you?
A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.
Q5: Why choose Jieyang Machinery Co., Ltd.?
A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.
