Woodworking Machinery Automatic Wood Pallet Making Cutting Saw with Stacker

Woodworking Machinery Automatic Wood Pallet Making Cutting Saw with Stacker

US$35,000.00-81,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SF8002
Power Type
Electric
Layout
Horizontal
Controlling Mode
Hydraulic Semi-automatic
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
ISO
Customized
Customized
Condition
New
Color
Customized
After-sales Service
1 Year
Brand
Saifan
Product Name
New Type Wood Cross Cutting Saws
Usage
Wood Process
Application
Making Wood Pallet
Voltage
380V, 3 Phase, 50Hz
Cutting Tolerance
in +/-1mm
Transport Package
Warpping Film and Plywood Box
Specification
26kw
Trademark
Saifan
Origin
Shandong of China (Mainland)
HS Code
8465990000
Production Capacity
100 Sets /Month

Product Description

SF8002 Automatic trimming stacking line
Product Description
Full automatic line, high speed 50-60 boards /min
Can connect with other machine to feed the wood automatically into this line.
Advantages:Easy to operate, high efficiency, safty for worker
Model SF8002
Working length 800-1500/2000mm
Double end trim off length Max. 50mm
Working width 85-140mm
Working thickness 15-38mm
Efficiency 50-60 boards/min
Labor 1-2 persons
Air pressure 0.6-0.8Mpa
Finished stack width 800-1200mm
Finished stack height Max. 1100mm
3 ton hydraulic lifting table 2.2kw
Wood arrange table 1.5kw
Sorting table 2.9kw
Double end saw 10.5kw
Waste conveyor 0.75kw
Stacker 8.5kw
Total power 26kw
Voltage 380v 50hz 3phase
Dust collection port 100mm*4pcs
Space 17500*6452mm

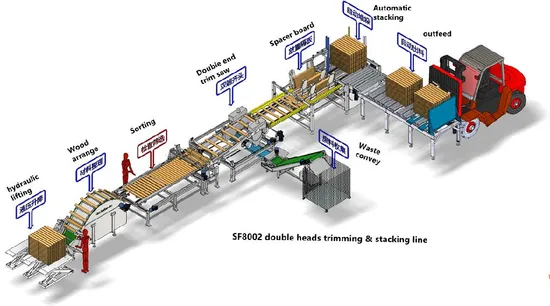

Full line consist with below machines:
3 ton hydraulic lifting table Lifting table Arrange table Double end trim saw Waste conveyor Stacker Detailed Photos
(1)3 ton hydraulic lifting table
Manual feed the wood into this line.
Can replace with other customized automatic conveyors, like chain conveyor or belt conveyor, can connect with other machines to feed wood automatically into this line.
(2)Lifting table
With hopper can transfer pack of wood, then one by one lift to ahead, the lifting table with hook can ensure the wood will be lift one by one.Also can put the wood into this hopper manually.
(3)Arrange table
Here can have inspector to takeaway the bad wood, with a turning device used as a buffer for excessively high speed coming wood, to transfer the wood to sawing area.
(4)Double end trim saw
Left and right side each with 450mm saw blade, both sides sawing heads is 50mm moveable, main used for wood end trimming.
Each side with 4kw powerful motors, ensure high speed feeding and cutting.
With 4pcs 100mm dust collection ports, recommend use 4kw bag dust collector
(5)Vertical waste conveyor
Transfer the wood waste to 1600mm height, then can fall to dustbin.
(6)Stacker
SF8010 stacker, stacks up to 8-12 layers per minute, one layer width 1.2m, height 1.1m, length is 1.5m or 2m. Mechanical stacker, loading weight about 1000kg.
With Drop Type Spacer Feeder 3pcs, can pre-set the spacer quantity and wood layer quantity easily.
(7)Main parts brand
Electrical parts Schneider, Screen PLC Siemens, Inverter Delta, Motor Chinese local brand
Proximity switch: Pepperl+Fuchs, Magnetic switch: AirTac, Diffuse reflection: Banner
Related products
SF1000 Wooden Pallet Production Line
SF2000 Wood Pallet Mat Nailing Machine
SF9022 Wood Pallet Legs Nailing Machine
SF9025 Stringer Wood Pallet Making Machine
SF9010 Stringer Wood Pallet Nailing Machine
SF9026 Stringer Wood Pallet Making Machine
SF7013 Double Heads Notcher
SF7030 Wood Pallet Chamfer Machine
SF7041 Pallet Round Corner Cutter Machine
SF6060 Wood Cross Cut Off Saw
SF6021 Wood Double Heads Trim Saw Machine
SF8005 Multi Heads Trim Saw

Final Product
Company Profile

HICAS group is one leading manufacturing and exporting company of wood working machine in China.
We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter. 1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box. 3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.Our CE Certifications
Package&Shipment
1.Packing details: Warrping film with plywood box or as your request.
2.Shipping: We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation
FAQ
1. Do you offer installation?
Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.

5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

6. Can you customized the machine?
Our machines can be customized made according to buyers' request.

7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.

8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish.

After-sale service
1. We respect your feed back after receiving the goods.
2. Tracing the working condition by email per month.
3. 24 hours technical support by email, call, video.
4. English CD and manual for machine using and maintainance.
5. Whole machine one year warranty.
6. Whole life warranty.
7. Engineers available to serve and train overseas, but your side should pay all the expense.
