Model NO.
PMD6045, PMD3535, PMD3030
Structure
Vertical Drilling Machine
Automatic Grade
Automatic
Certification
CE, ISO 9001
Functions
Drilling, Milling, Tapping
Max. Drilling Diameter
50mm
Max. Drilling Thickness
250mm
Drilling Speed
30-3000 Rpm
Clamping Type
T Slot with Tooling
Control System
Siemens or Fagor
Lubrication
Automatic Lubrication System
Transport Package
4*40hq Container + Wooden Box
Production Capacity
80 Set/Year
Product Description
Product Description

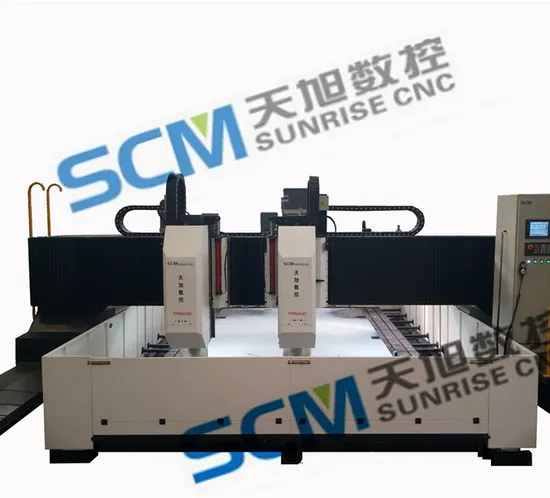

TPM6045-2 High speed CNC drilling machine for large steel plates
Applicable Industry:
The machine is the automatic special drilling machine for steel plates/connection plates, mainly in the field of angle steel tower industry, structure storage facilities, and steel structure construction industries etc.
Advantages of high speed CNC drilling:
1. High speed Max. to 3000 rpm;
2. High production efficiency, for example drill one 30mm hole on 40 thickness just about 6 seconds;
3. High precision, the re-position precision 0.08mm;
4. Controlled by SIEMENS CNC system;
5. Inner-cooling;
6. Automatic lubrication system;
7. Can do the drilling, milling, tapping, reaming works. Specification:
Name | Description | Value |
Max. work-piece size | LXW | 6000x4500mm |
Max. Thickness | 200mm |
Worktable | Width of T Slot | 28mm |
Max. bearig force | 5t/mm2 |
Drilling spindle | Max. Drilling dia. | Φ50mm(carbide) |
Drilling depth/drilling dia. | ≤5 Times than Dia.(carbide,Max. thickness 150mm) |
Max.Tapping dia. | M30 |
Speed | 30-3000r/min |
taper | BT50 |
Power of frequency motor | 2×22kW |
Gantry longitudinal movement(X axis) | Max. stroke | 6000mm |
Moving speed | 0-6m/min |
Servo motor | 2×4.3kW |
Drilling head transverse movement (Y axis) | Distance between two spindle | 860mm-4500mm |
Moving speed | 0-8m/min |
Servo motor | 2×3.1kW |
Drilling head in-feed movement (Z axis) | Stroke | 500mm |
In-feed speed | 0-5m/min |
Servo motor | 2×3.1kW |
Positioning accuracy | X,Y | ±0.1mm/ whole length |
Re-positioning accuracy | X,Y | ±0.05mm/ whole length |
Hydraulic system | Hydraulic pump pressure/flow | 6MPa/25L/min |
Hydraulic pump motor power | 3kW |
Pneumatic system | Air pressure | 0.6MPa |
Electric system | CNC System | Siemens 828D |
No. of CNC axis | 6 |
Total power | About 85W |
Overall size | L xW x H | About 10.7mX9.4mX3.6m |
Weight | About 69t |
