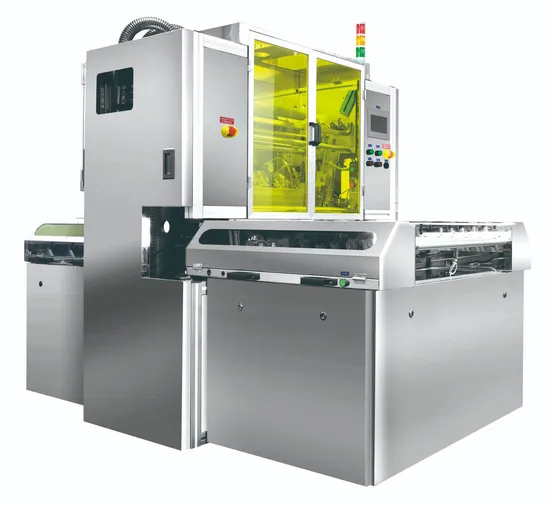

Auto Film Laminating Machine PCB Vacuum Laminator Machine
| US$106,000.00-126,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GH-D740
Classification
Cold Laminating Machine
Application
Aluminium Plate, Film Material, Soft Board
Driven Type
Electric
Automatic Grade
Automatic
Membrane Material
Matt Film
Plastic Film Mulching Modes
Hot Laminating
Performance
Anti Ultraviolet Erosion
Weight
1600kg
Power
AC380V
Maximum Machining Size
760*760mm
Minimum Machining Size
250*250mm
Transport Package
Standard Package, Wooden Package, Vacuum Package
Specification
L2200*W1640*H1910mm
Trademark
xinguanghui
Origin
Shenzhen
HS Code
8486309000
Production Capacity
100sets/Year
Packaging & Delivery
Package Size
240.00cm * 184.00cm * 211.00cm
Package Gross Weight
1700.000kg
Product Description
Product Description Dry Film Auto Cutting Laminator
model number: GH-D740
current source:AC380V 3 Phase 12KW 50HZ
pressure :5-8kgw/cm2
outline dimension:L2200*W1H1910m640*m
The effective width of the film pressure:750MM
Baseline length: 350~760mm
Baseline width: 350~760mm
Baseline thickness: 0.1~3.3mm
Dry film size:
Membrane width:250~750mm
film thickness:15~76μm
Membrane diameter:external diameter 200mm
control method:PLC+human-computer interface
Hot pressure:Ø 78mm*860mm
Heating method:Inductive heater
Number of hot pressing rollers:2
Pressure membrane speed:velocity range0~5.5m/min Man-machine interface is set arbitrarily.
Film pressure temperature:SSR+PLC temperature control indoor temperature~130ºC
Main material:SUS304Mirror stainless steel.
Pressure membrane pressure:2-6kg/cm2(adjustable)
vacuum grip device:Five-section operation width setting
Vacuum pump:2.2KW(3HP)
Vacuum suction disc range:9 "~13 ",14 "~17",18"~21",22 "~25 ",23 "~28 "
Silicone wheel Ø 40m/m,Stainless steel roller Ø 31.5mm P=74mm
structure:Host body mobile type, convenient for dry film replacement
Before dew copper:0.0~49.9mm
After dew copper:0.0~12.9mm
Brass error:±1.0mm
Board edge error:±1.0mm
exhaust:40CM(caliber Ø 4")
Equipment Weight: about 1600 kg
