5 Brushes 4 Dryers Customize Soft Touch Rollover Car Wash Systems

5 Brushes 4 Dryers Customize Soft Touch Rollover Car Wash Systems

US$22,500.00-30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
XL-220
Type
Reciprocating
Application
Automotive Beauty Shop
Fuel
Electric
Cleaning Process
Cold Water Cleaning
Certification
CE
Feature
Sudsing / Foaming
Function
Micro High Pressure Water Cleaning
Material
Galvanized Steel
Condition
New
Main Market
North America
Dryer Quantity
4
Brush Quantity
5
Chemical Spray
Foam and Wax
Body Brush Material
EVA Foam Material
Wheel Brushes
Italy Favagrossa
Car Wash Capacity
15-20 Cars Per Hour
Undercarriage Clean
Optional
HP Water
Optional
Remote Control
Supported
Transport Package
Iron Pallet
Specification
2250(W)x5350(L)x2100(H) mm
Trademark
TOPWELL
Origin
China
HS Code
8424899990
Production Capacity
800/Sets Per Year

Packaging & Delivery

Package Size
580.00cm * 210.00cm * 220.00cm
Package Gross Weight
3000.000kg

Product Description

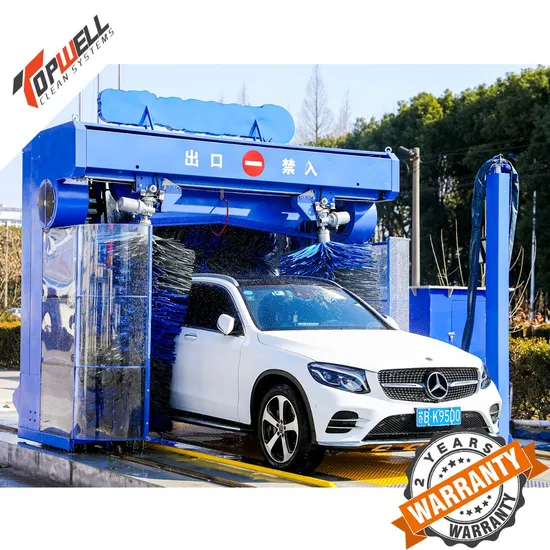

Product Description The 7th-generation rollover car washing machine is equipped with 5 brushes and 4 dryers, including two EVA foam material side brushes, one EVA top brush and two Italy FAVAGROSSA tire brushes. The top four 5.5KW fixed Q-type dryers reduce the failure rate when comparing with old contouring dryers and greatly reduce the frequency of after-sales.
Two independent dosing pump systems control the functions of foam and wax water, can more accurately control the amount of the detergent, and wash one car only consume around 10ml detergent.
4 cleaning procedures provide customers with diversified cleaning options, with a cleaning speed of 12-20 vehicles per hour. In addition, the main advantage of the rollover car wash type is to save space. It only needs 11 meters long and 5 meters wide to install one, which is very good for customers who want to invest in a car washing shop with insufficient space but a good location.
Product Parameters Wash Process
Program A (quick wash): Foam and brushes wash (with wheel brush)-brushes wash and wax-drying-drying
Program B (regular wash): Foam and brushes wash (with wheel brush)-brushes wash-clean water rinse-wax-drying-drying
Program C (standard wash): HP water-foam-brushes wash (with wheel brush)-brushes wash and wax-drying-drying
Program D (superior wash): Rinse-foam-brushes wash (with wheel brush)-brushes wash-clean water rinse-wax-drying-drying

Main Features Of Rollover 1. The whole machine is galvanized, with DuPont baking paint process, more corrosion-resistant and durable
2. Choose well-known brand electronic components to improve the safety and stability of equipment operation
3. Use EVA foam material cleaning car body brushes, with high cleanliness, strong anti-aging ability. In the meantime, the smooth surface does not stick sand so will not scratch the car paint during the rotation
4. High-definition 10' touch screen, real-time display of equipment operating status, with vehicle detection device, can indicate the driver's parking status
5. One-key shielding of fault points to realize emergency car wash function, do not need to worry one component is broken and effect next car washing
6. Car wash counting function, realizing year, month, day, and total statistics
7. Controlled foam and bright wax system by 2 dosing pumps, accurately control the cost of consumables
Machine Framework Drawing
Foundation For Reference
Details You Care About
Client Case
FAQ 1. How to solve the installation problem?
Under normal circumstances, we will send 1-2 engineers to the customer site to install and debug the equipment, and it takes about 10 days for one set machine. Customers need to bear visa fees, round-trip air tickets, local accommodations, and an allowance of 100 USD per person per day.
Affected by the virus, engineers were unable to go abroad to install equipment. However, we will provide very detailed installation drawings and online guidance. The customer needs to have mechanical and electrical engineers on site. At present, customers from Japan, Romania, Ecuador, Mexico, Indonesia, Cambodia, Bolivia, Mongolia, South Sudan have completed the installation through drawings and the equipment is running well. The equipment will be installed and debugged in the factory before leaving the factory, and each component will be marked to keep a one-to-one correspondence with the installation drawing.
2. How to solve the after-sales problem after the equipment is installed?
At present, WhatsApp and other foreign social media software cannot be opened in China without a VPN. Therefore, after cooperation, we suggest the customers download the WeChat App. Topwell will set up a separate group for each customer, which includes the salesperson and the technician in the factory. If you have any after-sales problems, you just need to describe the problem clearly and send relevant photos and videos to the group. Our technicians will guide you and provide a solution immediately.
3. How long is the machine warranty?
For car washes with brushes, the equipment is guaranteed 2 years after the delivery; the touchless car washes are guaranteed for 3 years; During the warranty period, Topwell bears the cost of the accessories, and the customer bears the international freight.
4. How long is the lead time?
Tunnel type-standard 380V, 50HZ needs 40-45 working days; Rollover type-standard 380V, 50HZ takes 20 working days; Touchless type-standard 380V, 50HZ takes 10 working days.
Wheel washing machine-standard 380V, 50HZ takes 5 working days; Bus and truck washing machine-standard 380V, 50HZ takes 30-35 working days. The non-standard voltage needs to add 10-15 working days on the basis of the above, and all electrical components need to be customized by the manufacturer.
5. What about the payment term?
T/T in advance or L/C at sight can be negotiated
6. What are the advantages of Topwell compared with other car washing machine brands?
Brand advantage-Topwell's cooperative factory is the leader in the car washing machine industry, specializing in the production of car washing machines. The equipment is optimal in terms of cleaning effect, stability, and failure rate.
Professional advantage-Topwell has been in the car washing industry since 1992 and has maintained a continuous and good cooperative relationship with the factory, which is equivalent to the factory's export office. At the same time, grasp the current situation of domestic car washing machines, and know the advantages and disadvantages of each car washing machine factory.
Geographical advantage-The distance between Topwell and the factory only costs 1-1.5h, support factory inspection at any time.
Service advantage-Topwell partners actively break the concept of jet lag, stay online 24h, and provide customers with no-worry services
TOPWELL only supplies cleaning system products!
7. I want to connect the car washer to the payment system for unmanned management. Can Topwell do it?
Yes, currently in foreign countries, payment stations support the three methods of coin/banknotes/credit cards. China is currently unable to achieve this type of charging system because credit card receipts and payments require cooperation with local banks. But we can leave the signal wire for the car washing machine in advance, understand the signal wire of the payment machine and just connect the two signals. We are experienced in this area.
8. My staff and I do not have any professional knowledge of equipment, how to manage and maintain it?
Except for the professional car washer agents that we cooperate with (acting for our brands and also for European and American car washer brands), it can be said that most of the other customers are the first time to come into contact with a fully auto car washer. Our equipment is actually very simple to maintain, and the operation manual also gives detailed regular maintenance instructions. For example: regularly apply engine oil to the chain, empty the air inside the compressor every day when the business is closed, wipe the surface of the sensor every day, and so on.
If the equipment fails, the touch screen will give an alarm record. The operator only needs to take photos of the faulty part and the alarm record. We may still need the signal light photo of PLC, after that, our technicians will give the troubleshooting method to find the problem and solve it. Every step is operated after our guidance, which is very easy to handle. And the equipment has high stability, so there is no need to worry about the failure rate.
9. How should I set the charge standard?
The water and electricity consumption of each model is different. The cost of washing a car needs to be calculated based on the local water and electricity bills. At the same time, the rent and the cost of equipment depreciation need to be considered. Refer to the charging standards of manual car wash shops in the same city and the charging standards of competitors for fully automatic car washes to customize profitable and competitive prices.
10. If I want to install a car washing machine, how to choose a site?
The gold rule of omnipotence: the location with high traffic volume is the prime location. Such as gas stations, highway intersections, large supermarkets, large parking lots, dense residential areas, etc.
11. If one part is broken, will it affect the operation of the entire device?
This is one of the advantages of TOPWELL equipment. If an accessory is broken at the peak of the car wash time, there is no time to replace it with a new accessory. The operator can manually turn off that function on the touch screen without affecting the normal operation of other functions. Damaged accessories can be replaced when the shop is closed at night.
12. What are the requirements If I want to be Topwell's agent?
Many customers like to ask the agent at the beginning of the communication. Here we have three suggestions for it:
a) Basic cooperation
b) Own installation and maintenance team
c) Minimum annual sales

TOPWELL is a professional supplier of car wash machines since 1992. Our specialization, your confidence! We keep committing to meet the needs of both market and customers with our innovative technology, high stable quality products, and excellent service. We always combine economic success with a high sense of social responsibility and environmental protection. To meet the needs of customers, to enrich the value of all Topwell staff, to shoulder more and more social responsibility,these are our unremitting pursuits. Until 2022, Topwell has already exported to Saudi Arabia, Singapore, Thailand, South Korea, United Kingdom, Australia, Mexico, Russia, Nigeria, Zambia, and other countries worldwide.
We believe and are to make true Top quality, well service!
