Large Capacity Fertilizer Granulator Machine With Low Energy Consumption
| US$11,111.00-1,111,111.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DH360/DH450/DH650/DH850/DH1050
Type
Pressing Granulator
Object
Fertilizer
Material
Alloy
Size
Medium
Certification
CE
Condition
New
Roller material
Alloy steel
Acceptable raw materials
Potassium
Hydraulic system
Yes
Capacity
1-10t/h/unit
Final product hardness
30N
Sample test
Available
Working method
Double Roller Granulating Dry Powder
Process flow
Compact-crush-screen-package
Granule shape
Irregular Shape
Granule size
2-5mm
Power (kW)
37-400(kw)
Density
Doubling
Voltage
Customized
Color
depends on your need
Transport Package
Big part packed in nude. Small spare parts packed
Specification
One machine includes bin, roller, compact, screen
Trademark
FUYI
Origin
China
HS Code
8474801000
Production Capacity
200 Sets Per Year
Packaging & Delivery
Package Size
360.00cm * 280.00cm * 320.00cm
Package Gross Weight
21000.000kg
Product Description
Large Capacity Fertilizer Granulator Machine With Low Energy ConsumptionINTRODUCTION OF OUR COMPANY
TECHNICAL PARAMETERS (for irregular shape): Notes: Rolled sheet output, finished product output is just for reference and the screen is determined according to the nature of materials.
| Model | DH240 | DH360 | DH450 | DH650 | DH850 | DH1050 |
| Roller diameter (mm) | φ240 | φ360 | φ450 | φ650 | φ850 | φ1050 |
| Valid usable width (mm) | 300 | 170-230 | 190-280 | 290-330 | 420 | 500 |
| Roller speed (rpm) | 50-100 | 10-25 | 10-25 | 10-25 | 9-16 | 8.5-14.5 |
| Max rolled sheet thickness(mm) | 4 | 8 | 12 | 16 | 25 | 36 |
| Rolled sheet output*(kg/h) | / | 1300-2300 | 2500-3500 | 5000-7000 | 12,000-16,000 | 22,000-38,000 |
| Finished product output ((kg/h)) | 2000-3000 (Oblate) | 900-1300 | 1800-2500 | 3500-4000 | 6,000-8,000 | 12,000-16,000 |
| Granular size (mm) | 3.5/4.2/4.5/ 5.5/6.5 etc. | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 |
| Main unit power (KW) | 45 | 30-37 | 55-75 | 90-110 | 220-250 | 400 |
| Total installed capacity (KW) | 55 | 55 | 90 | 175 | 400 | 850 |
| External dimension (mm) | 2300×1700×1860 | 2350×2000×2600 | 2600×2200×2900 | 3600×2800×3200 | 5,000×3,800×4,100 | 7,000×5,000×6,000 |
| Total weight (t) | 5 | 7 | 10 | 21 | 46 | 75-85 |
WORKING THEORY
The powder material is loaded from the top side of the machine and conveyed towards
the compacting rollers by a special motorised helical screw that ensures a constant and
even feeding rate.

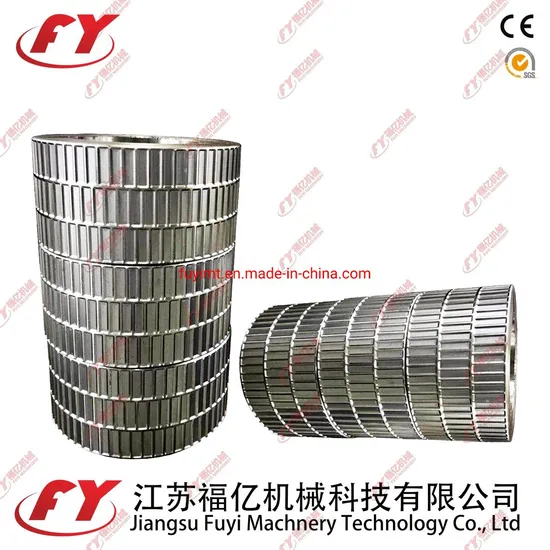

The compacting rollers, made of steel can be caved of different shapes and
size to produce different types of finished products according to different
customer's requirements.
The crusher can be used for crushing the tablets formed by flaking machine to obtain a granular products.
The final granules size is determined by the net mesh that allows for passing only of materials with desired size. Unqualified will be crushed inside until it's qualified. PACKAGING AND SHIPPING
The storage-packing section of the plant is the same as for other fertilizer plants.
The pacakging specification usually is 50kg per bag, if client requires 1 ton per bag, should notify us in advance.
Due to the big dimension of our machines,normally without pacakging, but directly loaded into Open Top Containers by crane. Only some small parts/accessories can be packed into ply-wooden boxes.
AFTER SALE SERVICES
After-sale Techniical service is available if customers required.
