220kw Gx2113 Biomass Power Plant Wood Chipping Machine Wood Chipper

Product Description

Product Description
Basic Introduction of Wood Chipper Shredder machine
Wood drum chipper machine is a kind of special machine to slice the wood for the production of high-quality wood chips.
It is a kind of advanced crushing machine based on the advantages of many other crushers.
It is developed by using the theories of lashing, shearing, impacting, grinding.
1. Mainly used to process various logs, log branch, veneer, bamboo, cotton stalk and other wood fiber into standard size chips. The chips could be used to produce particleboard, MDF, HDF, OSB, OSSB, pulp and paper making.
2. 1) Uniform chips. 2) Low noise. 3) No pollution. 4) Simple operation. 5) Convenient maintenance.
is one kind of special equipment for producing wood chips, widely usedin the raw material preparing process in the factories of flakeboard (shaving board/particle board), fiberboard, papermaking and wood chips making plant. Small drum type wood chipper is the best equipment for factory's laboratory preparing material. Raw material for Drum type wood chipper cutting is mainly small diameter wood, lumbering remains (such as branches, twigs, tres s etc) and woo dworking remains (such as slab, plank, log core, waste veneer etc). It also can be used to chip non-lignin raw material (such as flax pole, bulrush, bamboo)
Product Pictures

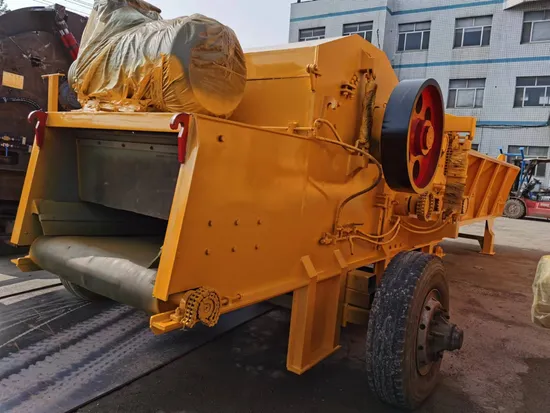

Picture after complete installation
Parameters

Type	HX216	HX217	HX218	HX426	HX428	400AB	400CD
Rotor diameter/blade quantity	650mm /2-6	720mm /2-6	800mm /2-6	650mm /20	800mm /24	650mm/2-6	650mm/2-6
Input size (mm)	240*540	240*680	310x680	250x1250	310x1250	700*400	1000*400
Blade rotational speed (r/m)	590	590	650	600	650	610	610
Rate of feeding (m/min)	38	38	35-38	38	38	38	38
Wood chip length (mm)	Wood chip size normally from 2cm-6cm,we can adjust the size based on required,through:blade quantity,rotation,screen hole size… …
Capacity	5-10	7-12	9-13	8-10	10-15	5-9	7-12
Power (kw)	55 +3+4+5.5	75+3+3+5.5	110+5.5+3+5.5	90+5.5+5.5	110+7.5+7.5	90+5.5+7.5+4	110+5.5+7.5+4
Weight (t)	5.3	6.2	7.3	7.6	9.5	6.6	8.3
Size (m)	1.98*1.95*1.25	2.2*2.1*1.3	2.3x2.15x1.85	2.85x2.78x1.5	3.67x2.45x2.05	7*2.3*2	8.2*2.3*2

Control box
Certificate
Our workshop
Shipment
Machine working sites
Disharged wood chip Exhibition and clients visit
OUR Company:
Q1:Are You Trading Company or Factory?
Shandong Hongxin Machinery is a Factory with 31 years experience in Machinery Manufacturing,we provide you competive Factory Price
and good After-sale Service!
Q2:What About The Machine Installation?
For a single machine or a simple line,we provide you Foundation Drawing ,Installation Instruction Books or sucessful
installed machinery picture or video;for large machines and complex productioin line,we could send our engineers to guide
the installation if necessary
Q3:How About The Spare Parts?
We offer some free spare parts like belt,gasket etc small parts,for the BLADES,KNIVES,SHAFTS etc important wearing
parts,we sugget customers buy some along with the machines to save the shipping cost,and we have enough spares parts
in stock.
Q4:What Will We Do If We Have Problems in Machine Working After We Buy the Machine?
We has people special for after-sale service,if customers outside China have problems when machine working,just feel
free to send us the picture or video to show us,we will give you solutions in 24hours.
Q5:Could We Visit Your Factory and Test the Machine?
We warmly welcome you to visit our factory anytime,and we are very glad to test our machine with your raw material.
