Tck46A Conventional CNC Lathe Machine Universal Manufacturer Used Metal Lathe for Sale

Product Description

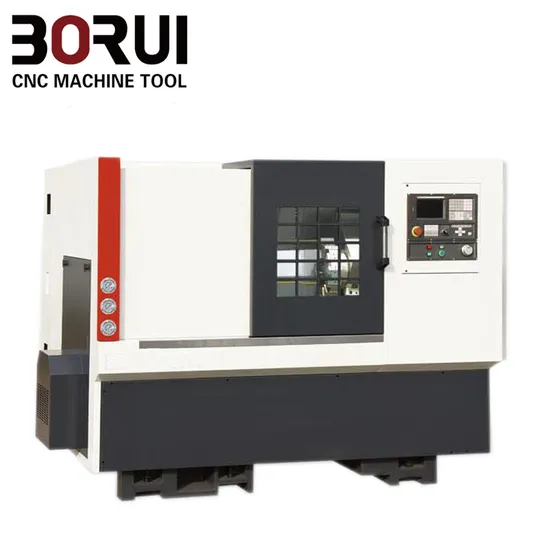

TCK46A Conventional CNC Lathe Machine Universal Manufacturer Used Metal Lathe For Sale
Product Description
The machine is the machine is suitable to process all kinds of small and middle-size shaft and plate work piece,and could also turn various threada,circle arc,circular cone,inside and outside surface of revolved body.this machine is widely used in sanitary,valve,electrical appliance,instrument,automobile,motorcycle,bearings and so on.
Product main technical Specifications:

Specification	Units	TCK46A
Max.swing over bed	mm	460
Max.machining diameter	mm	400
Max.swing over carriage	mm	170
Max.turning length	mm	350
Two top distance	mm	370
Spindle head form (optinal chuck)		A2-5(8")
Spindle motor power	kw	5.5
Spindle speed	rpm	3500
Spindle bore	mm	56
X/Y axis lead screw specification		3210/3210
X Travel	mm	240
X axis motor torque		7.5
X/Z axis rail specification		35/35
Z Travel	mm	400
Z axis motor torque		7.5
X, Z axis Connection mode		direct connection
Optional turret (special configuration)		80-8T/12T
Knife tower Center height	mm	80
Tailstock bore	mm	65
Tailstock travel	mm	80
Tailstock sleeve travel	mm	200
Tailstock taper		morse 4
The bed form and inclination	°	Body/30°
Machine dimensions(L*W*H)	mm	2500×1700×1710
Weight	kg	2600

Standard Accessories:
1.GSK980TDC or Siemens 808D NC system
2. Servo motor 7.5 kw

Optional Accessories:
1. NC System: KND1000Ti, Fanuc Oi Mate-T
2. Main Motor: Servo 11/15 KW

3. Turret: 8 station electric turre
4. Chuck: 8″Non-through hole hydraulic chuck

5. 8″Non-through hole hydraulic chuck (Taiwan)
6. 8″through hole hydraulic chuck(Taiwan)
7.10″Non-through hole hydraulic chuck
8. 10″through hole hydraulic chuck(Taiwan)
9.Chip conveyor
10.Steady Rest
11.Without tailstock
12.Inverter 11 KW
CNC Lathe Features
1. Highter accuracy Taiwan linear guideways
2. Highter speed spindle unit,optional homemade spindle
3. Highter rigidity cast iron
4. Integrated automatic lubrication
5. One-piece casting slat bed cnc lathe

Product Details
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Information

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
