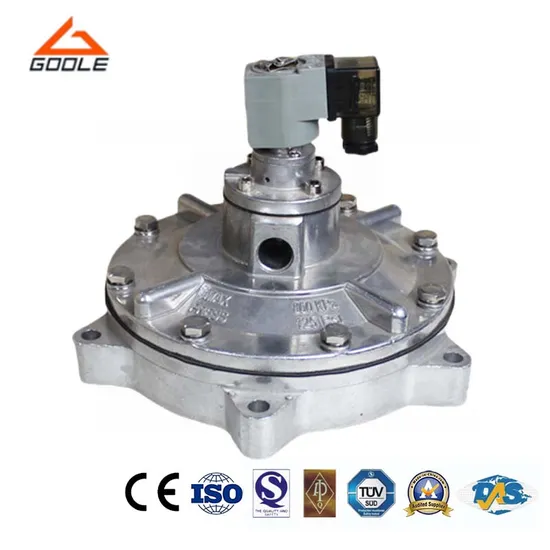

Submerged DMF-Y Electromagnetic Pulse Valve
| US$1.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GADMF-Y
Actuator
Electric
Connection Form
Thread
Type
Direct Acting
Material
Stainless Steel
Pressure
Low Pressure
Valve Structure
Direct-Acting Piston Structure
Power Supply
AC Solenoid Valve
Usage
Emptying, Drain, Flow Control
Standard
GB
Application
Industrial Usage, Water Industrial Usage, Household Usage
Transport Package
Plywood Case
Trademark
GOOLE
Origin
Wenzhou, China
HS Code
8481802190
Production Capacity
1000PCS/Month
Product Description
Submerged DMF-Y Electromagnetic Pulse Valve Product DescriptionBrief Introduction
Submerged electromagnetic pulse valve is a type of electromagnetic pulse valve inside the submerged pulse valve air bag. The submerged electromagnetic pulse valve seat is embedded in the air bag for installation, with low resistance, good flow, high injection volume, increased load carrying capacity, and expanded range of gas source pressure. This submerged pulse valve is more suitable for use in situations with wide gas source pressure.
Specification Specifications
2 Way Direct Acting Solenoid Valves 1/2"~2"
1, Brass body
2,2W Series water solenoid valve Product Details Ordering Code
| - | 160 | - | 15 | S | - | E | - | AC110V |
| Orifice Size | Port Size | Coil | Sealing Material | Standard Voltage | ||||
| 160:16mm | 15:1/2" | Blank:Round coil | Blank:NBR | DC12V | ||||
| 200:20mm | 20:3/4" | S:Square coil | V:PTFE | DC24V | ||||
| 250:25mm | 25:1" | NO:Normally open | AC24V | |||||
| 350:35mm | 35:1-1/4" | NC:Normally close | AC110V 50HZ/60HZ | |||||
| 400:40mm | 40:1-1/2" | Z:Ex-proof | AC220V 50HZ/60HZ | |||||
| 500:50mm | 50:2" | AC380V 50HZ/60HZ | ||||||
| Model | 160-15 | 200-20 | 250-25 | 350-35 | 400-40 | 500-50 |
| Working Medium | Air,water,oil,gas | |||||
| Action Type | Direct Action(Normally open/close) | |||||
| Orifice Size | 16 | 20 | 25 | 35 | 40 | 50 |
| CV Value | 4.8 | 4.8 | 12 | 24 | 29 | 48 |
| Port Size | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| Fluid Pressure | Air:0~1.0MPa;Water:0~0.7MPa;Oil:0~0.9MPa | |||||
| Medium Temperature | NBR:-5~80ºC,EPDM & PTFE:-5~150ºC | |||||
| Material of Body | Brass | |||||
