DRO-equipped 5HP M5 Vertical Turret Milling machine Fresadora made in China
| US$3,300.00-7,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M5
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
process material
metal, plastic etc.
Transport Package
Pallet
Specification
1750*1500*2100
Trademark
Hercules
Origin
China
HS Code
8459699000
Production Capacity
20000sets/Year
Product Description

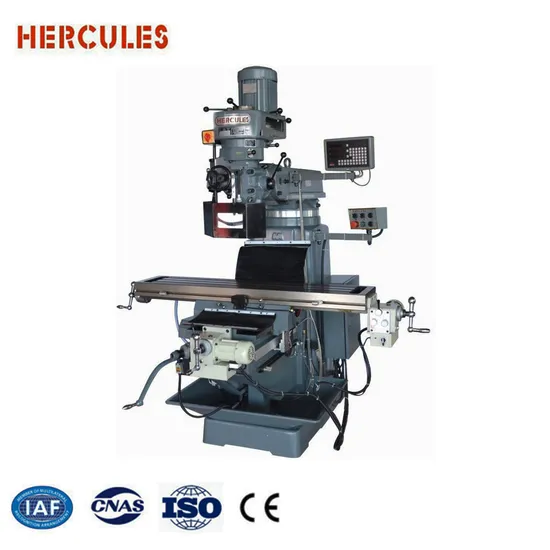

M5 Turret Vertical Milling MachineEconomic Series
| Model | M5(M5E) |
| Economic Series | |
| Table size(L*W)(mm) | 1370x305 |
| Max.load of table (kg) | 300 |
| X axis(mm) | 1000 900 with power feed |
| Y axis(mm) | 440 |
| Z axis (mm) | 480 |
| Work table T slot (No.-size*pitch) (mm) | 3-15.88x63 |
| Distance between spindle and table(mm) | 20-500 |
| Ram travel (mm) | 500 |
| Travel of spindle quill (mm) | 120 |
| Auto crossward feed(mm/rev) | 0.04/0.08/0.15 |
| Spindle speed(rpm) | 70-3600rpm 10steps |
| Spindle hole taper | NT40 |
| Main Motor | 5HP |
| Tilt angle for milling head | left and right±90º |
| Guiding tracks(X.Y.Z) | X axis dovetail, Y/Z square |
| Dimension(L*W*H)(mm) | 1850x1650x2300 |
| Milling head | Square head with side brake |
| Weight (kg) | 1450 |
| Optional milling head : Round step milling head; Square head with side brake milling head; Variable stepless milling head | |
| Hercules Machinery Equipment Ltd. | |
Standard configuration:
Collet chuck kits
Drill chuck
Draw bar
Reduction sleeve
Work lamp
Electrical cabinet
Coolant system
Wrenches
Plastic Cover
Z axis elevating motor
Optional parts:
3-axis DRO
X-axis ALSGS power feed
Y-axis ALSGS power feed
Z-axis ALSGS power feed
X,Y,Z Mechanical power feed
Air draw bar
Variable speed milling head
6" Machine vice
Separately operate panel box
Machine images and processing steps for reference only:
