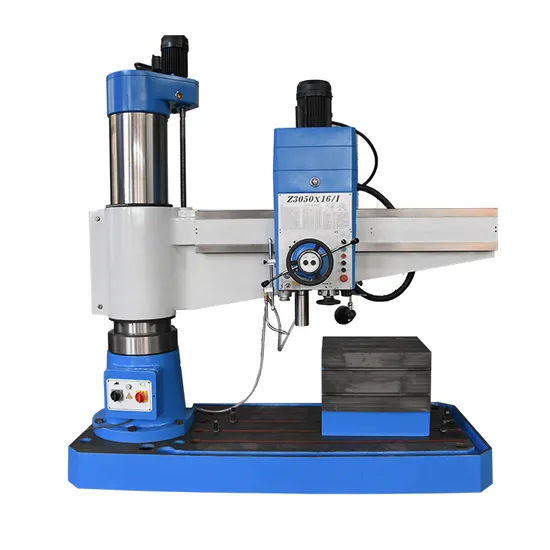

Z3063*20 High Precision High Speed Radial Machine Drilling with Ce
| US$2,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Power Type
Electric
Drill Capacity
32mm-80mm
Beam Length
1100mm-2000mm
Drive Type
Mechanical/Hydraulic
Transport Package
Plallet
Specification
32mm-80mm
Trademark
BOLI
Origin
China
HS Code
8459290000
Production Capacity
5000
Product Description
RM4011/RM4014/RM5016 Radial Drilling Machine· Mechanical driven
· Mechanical clamping
· Mechanical changing speed
· Up & down by power
· Auto feeding
Standard Accessories:
> Rise block
> Taper sleeve
> Tool releasing wrench
> Drift
> Eyelet bolts
> Box work table
Optional Accessories:
> Quick instead chuck
> Tapping chuck
> Angle work table
Technical Parameters:
| Model No. | Unit | RM4011 | RM4014 | RM5016 |
| max drilling capacity | mm | 40(1.57") | 40(1.57") | 50(1.97") |
| distance between spindle surface to work table | mm | 260~1050(10.24"~41.34") | 260~1150(10.24"~41.34") | 260~1150(10.24"~41.34") |
| distance between spindle center to column center | mm | 360~1100(14.17"~43.31") | 360~1400(14.17"~55.19") | 360~1600(14.17"~63.00") |
| spindle travel | mm | 200(7.87") | 200(7.87") | 220(7.87") |
| spindle taper | MT4 | MT4 | MT5 | |
| spindle speed range | r.p.m. | 75,130,240,380,660,1200 | 75,130,240,380,660,1200 | 78,135,240,350,590,1100 |
| spindle steps | steps | 6 | 6 | 6 |
| spindle feed range | r.p.m. | 0.10~0.25 | 0.10~0.25 | 0.10-0.56 |
| spindle feed steps | steps | 3 | 3 | 6 |
| spindle rotary angel | ° | 360 | 360 | 360 |
| main motor power | kw | 2.2 | 2.2 | 4 |
| up & down motor power | kw | 0.75 | 1.5 | 1.5 |
| packing size | mm | 1500×705×2200 | 1800×810×2300 | 2170×950×2450 |
| G.W. | kg | 1600 | 2200 | 2800 |
