Chinese Manufacturering Production of 50 Ton Large Hydraulic Mining Excavator

Product Description

Product Description

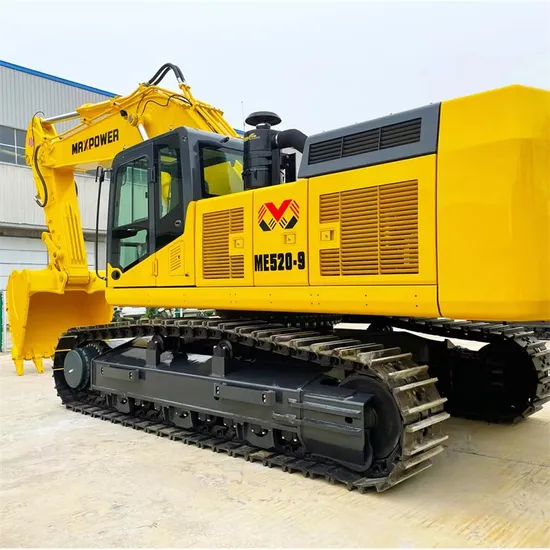

Large Excavator ME520
Suitable for mine, stockyard and port etc. working conditions.



The world known famous of hydraulic system, which ensures the reliability and durability of the product.

Structured design of the working device and chassis to make its strength withstand the rough working.

New comfortable cabin, with AC, radio and USB joint, larger vision.
Detailed Photos
Product Parameters

Model			ME520.9
Bucket capacity (m3)			2.8
Operating weight (T)			47500/49500
Volume of fuel tank (L)			650
No.	Name	Item
1	Engine	Brand	6WG1X
		Rated power (kw/r/min)	300/1800
		Torque / speed
		Intake mode	Turbocharged
		Fuel system mode	Electronic injection
		Emission standard	EURO
2	Chassis	Drive mode	hydraulic
3	Main pump	Brand	InlineHP3V212D
		Rated pressure	37
		Flow	385×2
4	Swing motor	Brand	Inline HM5X130CHB×2
		Rated pressure	28.4
5	Travel motor	Brand	OK F100
		Rated pressure	37
6	Control valve	Brand	Inline HVME400
		Rated flow	400
		Brake form	Hydraulic
7	Hydraulic oil	Model and dosage	HM046/335
8	Chassis parts	Track form	/3-teeth
		Track width	600mm
		No. of track	(Each Side) 49/50
		Average grounding pressure(KPa)	72
		No. of track rollers	(Each Side) 9

Our Advantages
Quality manufacturing
The product line includes various types of excavators ranging from 3.5 tons to 70 tons. The company's existing production workshop is 20,000 square meters, with an annual production scale of 3,000 general-purpose excavators, special excavators and their variants. Two assembly lines, more than 20 sets of professional manufacturing equipment.
Best chinese excavatorHigh-quality products and high-quality services make the products of the Maxpower brand sell well all over the country, and are exported to 50 countries and regions such as Oceania, the Middle East, Africa, Eastern Europe, Southeast Asia, and South America.
FAQ
Q: How long is the machine warranty time?
A: One year.
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines.
Q: What is the terms of payment?
A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.
Q: What is the delivery time ?
A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: Can the machine use the trademark of our own company?
A: Yes ,sir ,of course.
