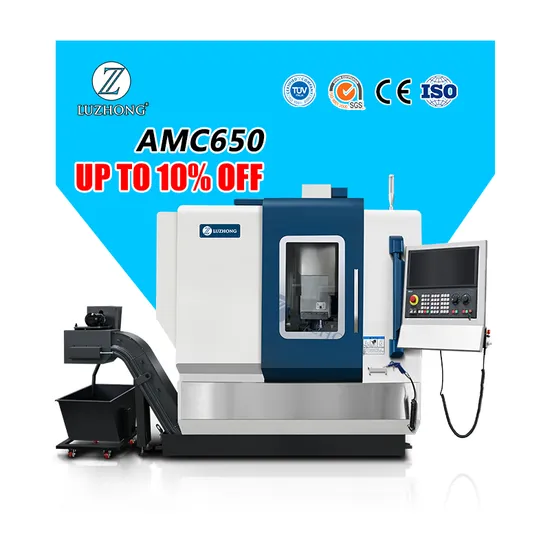

Factory Direct Sale AMC650 5-axis Vertical Cnc Machining Center For Metal

Product Description

Heavy duty cnc machining tool 5-axis cnc milling machine center price
Product Description
Product Parameters

Standard configurations: Siemens 840/ONE Taiwan direct drive motor rotary table with double axis and single arm Full-axis scales with fully closed-loop control 24 Mechanical arm tool magazine Chain type chip conveyor

Optional configurations: Heidenhain TNC 640 five-axis linkage CNC control system Taiwan HSKA63-150-12000 rpm direct-connected spindle unit 170 direct drive electric spindle unit Renishaw tool setter TS-27R Renishaw workplace measuring system OMP60
SPECIFICATIONS	Units	AMC650
Table size	mm	Φ650
T-slot size	mm	14H8
Table center hole	mm	φ50H8
Max.table load	kg	850
X-axis travel	mm	600
Y-axis travel	mm	650
Z-axis travel	mm	600
A-axis rotation range	°	±120
C-axis rotation range	°	360
Distance from spindle nose to table surface	mm	150-750
Spindle taper	--	HSK-A63
Max.spindle speed	rpm	15000
Spindle motor power	kW	25/37.5
Max.torque of spindle	N.m	91.7/37.5
Tool magazine type	--	Flat Chain Type
Tool magazine capacity	pcs	40
Max.diameter tool(full/Empty)	mm	Φ76/Φ125
Max.tool length	mm	300
Max.tool weight	kg	8
Tool change time(T-T)	S	2~~4
Rapid feed speed(X/Y/Z)	mm/min	36000/36000/36000
Cutting feed speed(X/Y/Z)	mm/min	1-10000/1-10000/1-10000
Positioning accuracy(X/Y/Z)	mm	0.008
Positioning accuracy(A/C)	mm	5
Repeat positioning accuracy(X/Y/Z)	kg	0.005
Repeat positioning accuracy(A/C)	mm	4
Machine weight		15000
Machine overall size(L*W*H)		4600*3840*3300

Detailed Photos
TAIWAN PRECISION SPINDLE1. Spindle taper is HSK-A63;
2. Spindle speed 15000rpm
3. Spindle passed dynamic balance ISO rating test
TAIWAN TOOL MAGAZINE1. Standard with Taiwan 40 Arm tool magazine, tool change time only 3 seconds.
2. Brand: OKADA
LEAD SCREW AND COUPLINGTaiwan precision lead screw. Lead screw bearing use or NACHI bearing, 2. Coupling R+W directly connected .
TAIWAN PRECISION LINEAR RAILS
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI

Rotary worktable
Standard with rotary worktable.
TOOL UNCLAMP CYLINDERTaiwan spindle Tool unclamp cylinder

CONTROL SYSTEMStandard: Siemens 840D/ Siemens ONE control
Optional : GSK etc.
AIR STORAGE TANKAir storage tank to ensure the stability of spindle tool change

AIR CONDITIONERStandard with Industrial electrical cabinet air conditioner. Cooling the electric box better .
LUBRICATION SYSTEM Automatic centralized lubrication device .
ELECTRICAL COMPONENTS1. with safety electrical components
2. quick plug as standard
PNEUMATIC COMPONENTS
Standard with Pneumatic Components

AIR GUN AND WATER GUNHigh-pressure air guns and high-pressure water guns

TESTING Each machine passed Renishaw laser interferometer testing and ballbar testing

MACHINE CONSTRUCT High strength high quality cast iron, 2. long span bed base and vertical column structure

SPINDLE RING COOLING
Standard with Spindle ring cooling function.
