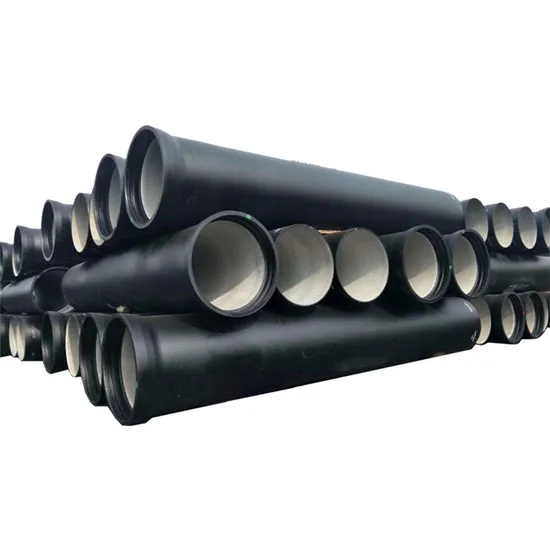

ISO2531 En545 En598 Ductile Iron Pipe Class K7 K9 K12 C40 C30 C25

Product Description

Product Description :
It has been more than 17 years since the invention of ductile iron pipe in the 2005 . With its high strength, high elongation, corrosion resistance, resistance to shock, easy construction and many other fine features, ductile iron pipe is the best choice in today's world for conveying water and gas safely. Ductile iron, also called nodular iron or spheroidal graphite iron, is characterized by the presence of spheroidal graphite in the resultant castings.
Flexible Joint Spherical Pipe 370MPa Large Diameter Steel Pipe Municipal Water Supply Ductile Iron Pipe Ductile iron pipes are available in a range of diameters from 80mm to 1600mm and are suitable for both potable water transmission and distribution (in accordance with BS EN 545) and sewerage (in accordance with BS EN 598).
Ductile iron pipes are simple to joint, can be laid in all weather conditions and often without the need for selected backfill. Its high safety factor and ability to accommodate ground movement make it the ideal pipeline material for a wide range of applications.
DN80mm DN2600mm Anti-Corrosion Coated K7/K8/K9 300 MPa Yield Ductile Iron Steel Pipe for Water Supplying

Product name	Flexible Joint Spherical Pipe 370MPa Large Diameter Steel Pipe Municipal Water Supply Ductile Iron Pipe
Standard:	ISO2531, EN545, EN598, etc
DN:	DN80mm~DN2600mm
Thickness:	K7. K8 K9, K10, C Class
Length:	5.5 m to 6 m
Application:	Water supply project, drainage, drinking water sewage water, irrigation, water pipeline.
Certificate:	ISO9001, ISO14001,ISO45001,SGS, WRAS
Quality Control:	Mechanical Properties Testing Chemical Component AnalysisHydraulic pressure Test
Brand Name	zhuosheng

Ductile iron pipe refers to the pipe made by high-speed centrifugal casting of centrifugal ductile iron machine after the addition of spheroidizing agent with cast iron of more than 18, referred to as ductile iron pipe, ductile iron pipe and ductile cast pipe, etc. Mainly used for the transmission of tap water, is the ideal choice of tap water pipeline materials.

DN(mm)	DE(mm)	T(mm)			weight (kg)	weight (kg)			total weight (kg) length(6000mm)			total weight (kg) length (5000mm)
		K8	K9	K10		K8	K9	K10	K8	K9	K10	K8	K9	K10
80	98	6.0	6.0	6.0	3.4	12.2	12.2	12.2	76.5	76.5	76.5	64.4	64.4	64.4
100	118	6.0	6.0	6.1	4.3	14.9	15.1	15.1	93.7	95	95	78.8	79.8	79.8
125	144	6.0	6.0	6.3	5.7	18.3	18.3	19	119	119	121	97.2	97.2	100.7
150	170	6.0	6.0	6.3	7.1	21.8	22.8	22.8	138	144	144	116.1	121.1	121.1
200	222	6.0	6.3	6.4	10.3	28.7	30.6	30.6	183	194	194	153.8	163.3	163.3
250	274	6.0	6.8	7.5	14.2	35.6	40.2	44.3	228	255	280	192.2	215.2	235.7
300	326	6.4	7.2	8.0	18.9	45.3	50.8	56.3	290	323	357	245.4	272.9	300.4
350	378	6.8	7.7	8.5	23.7	55.9	63.2	69.6	359	403	441	303.2	339.7	371.7
400	429	7.2	8.1	9.0	29.5	67.3	75.5	83.7	433	482	532	366	407	448
450	480	7.6	8.6	9.5	38.3	80	89	99	515	574	632	438.3	483.3	533.3
500	532	8.0	9.0	10	42.8	92.8	104.3	115.6	600	669	736	506.8	564.3	620.8
600	635	8.8	9.9	11	59.3	122	137.3	152	791	882	971	669.3	745.8	819.3
700	738	9.6	10.8	12	79.1	155	173.9	193	1009	1123	1237	854.1	948.6	1044.1
800	842	10.4	11.7	13	102.6	192	215.2	239	1255	1394	1537	1062.6	1178.6	1297.6
900	945	11.2	12.6	14	129.0	232	260.2	289	1521	1690	1863	1289	1430	1574
1000	1048	12.0	13.5	15	161.3	275	309.3	343.2	1811	2017	2221	1536.3	1707.8	1877.3
1200	1265	13.6	15.3	17	237.7	374	420.1	466.1	2482	2758	3034	2107.7	2338.2	2568.2
1400	1462	16.0	17.1	19	385.3	487.0	547.2			3669			3121
1600	1668	18.4	18.9	21.0	526.0	614.5	690.3			4015

Producing Process
Ductile iron pipe performance :
Ductile iron pipe is mainly called centrifugal ductile iron pipe. It has the essence of iron and the performance of steel, excellent anti-corrosion performance, good ductility, good sealing effect, easy installation, and is mainly used for water supply, gas transmission, and transportation in municipal and industrial and mining enterprises. oil etc. It is the first choice for water supply pipes with high cost performance. Compared with PE pipes, ductile ink tubes are simpler and quicker to install than PE pipes in terms of installation time, and the internal and external bearing pressure is better after installation; from the perspective of airtightness and corrosion resistance, ductile ink pipes are better airtight after installation, and also Various anti-corrosion methods can be used to improve the anti-corrosion performance; from the perspective of hydraulic performance, the specification of ductile ink tube generally refers to the inner diameter, and the specification of PE pipe generally refers to the outer diameter, because under the same specification conditions, the ductile ink tube can achieve greater runoff flow; from In terms of comprehensive installation and maintenance costs, the ductile ink tube has a more superior cost performance. The inner wall is sprayed with zinc, cement mortar anti-corrosion materials, etc.
Detailed Photos
Application : Mainly used in municipal, industrial and mining enterprises for water supply, gas, oil and so on ,
1. Urban domestic water. The domestic water in the city is getting more and more tense, so in addition to drinking water, reclaimed water can be used for irrigation, car washing, etc.;
2. Water diversion pipe. In cities, in order to avoid the depletion of groundwater, cast iron pipes can be used to transfer water from lakes to cities for daily use.
3. Agricultural irrigation. Because the iron cast pipe has good corrosion resistance and strong compression resistance. In agricultural irrigation, cast iron pipes can be used regardless of the nature of the soil
4. In industrial production. Iron cast pipe has good rigidity and toughness, which play a great role in use. It can bear load and resist pressure, and transport industrial materials safely
