Reed Moving Bath Towel Loom Textile Making Machines

Product Description

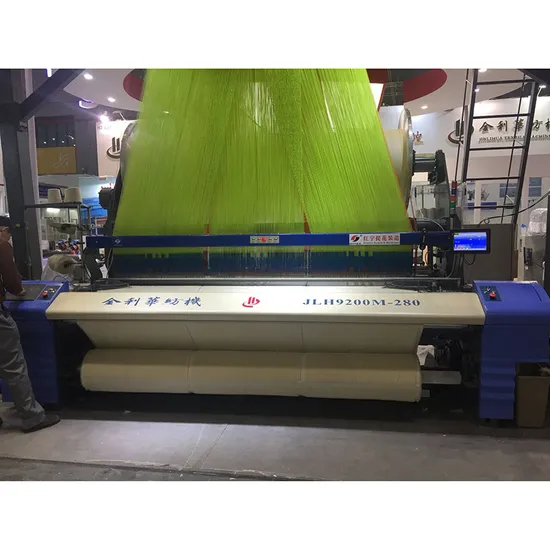

JLH9200M Terry towel air jet loom
JLH9200M air jet terry towel loom relying on JLH9200(same with Tsudakuma ZAX9100)textile machinery advanced technology, with low energy consumption, high efficiency and wide adaptability as our purpose, is such a high speed air jet towel loom.

Through a new three-dimensional design and computer analysis, and applying for virtual prototype technology,
we designed the weft insertion, open, beating and loop mechanism, success to meet the rising demand of air jet towel loom in domestic and abroad.

At the same time, our air jet towel loom also has excellent performance in high speed adaptability and variety adaptability. Currently that is one of the most excellent products on the market.
Product Parameters

specifacation of JLH9200M towel air jet loom

Item	JLH9200M air jet towel loom configuration	Remark
Reed space	190,210,230, 260,280,340	Useful reed width:Below 230cm cut 0-60cm Above 230cm cut 0- 80cm
Drive	Motor choose by reed. Shedding type	Dobby shedding 3.7kw, Jacquard shedding:5.5kw
Weft selection	( )set weft storage,( )main nozzle, any weft	2 color; 4 color; 6 color
Weft insertion	Electronic control mail, auxiliary nozzle relay weft, with auxiliary main nozzle, SMC solenoid valve from Japan
Beating	More support feet beating solid shaft, With weight, Crank linkage beating	above 280cm six-bar linkage, below 280cm four-bar beating
Let off	Electronically controlled continuous positive let-off, suitable for φ800 beam φ1000mm beam
Take up	electronic take up ; Weft density:25~300pick/inch inside the machine cloth roller maximum roll diameter 600mm
shedding	positive cam shedding(up to 8)shaft crank shedding (4)shaft electronic dobby shedding(up to 16)shaft	Cam box and dobby manufacture: Bintian (made in China) Staubli
Shedding cams	1/1 ; 2/1 ; 3/1 ; 2/2 ; 4/1 shaft
Heald frame	Number of New Light heald frames
Heald wires	Heald wires J type 331 ; O type 330
cutter	Mechanical shears
Selvage	Mechanical Leno Selvage
temple	30 hoops temple in the cloth above
Back beam	Double back beam, positive loose warp

Advantages of JLH9200M air jet towel loom :
>>Superior speed performance
>>The wide range of product adaptability
>>easy operability.
>>Reliable quality assurance
>>Excellent environmental protection measures
Raw material: combed cotton yarn:7s-80s
Weaving scope:terry towel,bath towel
Respective fabric:Hotel terry towel and bath towel,baby products
Standard configuration:5 sets servo,double let-off,take-up,electronic dobby,
double nozzle electronic feeder
Air jet terry towel loom speed is higher than rapier loom,the fabric quality is better.
Specially by fabric moving type to make terry,good future market.

Respective machine:
Reed width:260cm
Shedding :electronic dobby
Electronic feeder:2 nozzle
Double beam
Electronic let-off and take-up
Motor:4.0kw
Air consumption:0.7---1.2(different fabric,different air consumption)
R.P.M 450-500
Company Profile
Established in 1973.
Fast develop since 2009.
We produced shuttle loom, rapier loom, carding machine before 2003.
Since 2003, we start to produce shuttleless loom-water jet loom.
Model: JLH851 and JLH408
We exported water jet loom to India, Pakistan, Tailand, Korea, Ethiopian, South Africa,
Indonesia, Egypt since 2009. In big quantity to India maret.
Because of market changed, we start to research and develop medical gauze machine.
As we know, most of gauze is making by shuttle loom or air jet loom made in Japan or Europe.
Our Chinese customer visit our factory, and advise general manager to make low cost gauze weaving machine for them. Within 1 year, repeat test and update, our gauze air jet loom get huge market in China.
We made model JLH740 gauze loom in 2010, and sell in domestic and abroad. Get good reputation. Our JLH740 gauze loom is very popular in Sri Lank.
Based on market changed, we produce JLH425S gauze loom, which is sell in big quantity in China. Aslo export to Uzbekistan, Russia since 2013. It is the advantest loom to make gauze in low investment.
Our product get 98% market in Wubei province, which is the gauze base industrial. World famous company "Winner", "Allmed" is our customer.
Market is not good in 2014 and 2015, but our company not stop our develop and innovate. We use 2 years to make new model air jet loom JLH9200, air jet terry towel loom JLH9200M, high speed water jet loom JLH8200, economical type air jet loom JLH425M. And update gauze loom JLH425S and JLH740.
Meanwhile, we have the ability to help customer to build a new and complete medical gauze production line. We have the knowledge, technique, and sales service over sea.

We believe that good product will get good market.We will have a good future from 2019.
Customer visits
Certifications

Packaging & Shipping
FAQ

Q:How about your machine quality?We are worry about the quality.
R: We did research in technology, our design including structure and detailed security and precision has enhanced greatly, and can match all the CE standard or more strict standard. our machines distribute worldwide to about 30 countries. And where are our machines, there are good reputation and terminal user satisfaction.
We always provide high quality machine, oversea market is more imoprtant and difficult than domestic market as the communication time costing after sales, so as always, our machine has strict quality standard to make sure the machine can work more than the real warranty period. In this way, we will save a lot of energy and think in advance for the clients.
Q: Whether the machine price can be more discount?
We are sure to provide quality=price and price=quality products. The matched price and acceptable for the clients and durable for our machines we welcome your negotiate with us and get a good satisfaction.
Q:Are you factory or trade company?
A:We are factory with trade department
Q:What kind of product do you make?
A:Water jet loom,air jet loom,medical gauze loom

Q:Do you have engineer work available in abroad?
A:Yes,we have more than 20 engineers for sales service in domestic and abroad.

Q:How can we go to your factory?
A:Arrive at Qingdao air port,take one hour to our factory by car.We will pick you up from air port.
