Rubber Raw Material Machine Manufacturer Rubber Cutter/Rubber Bale Splitter

Product Description

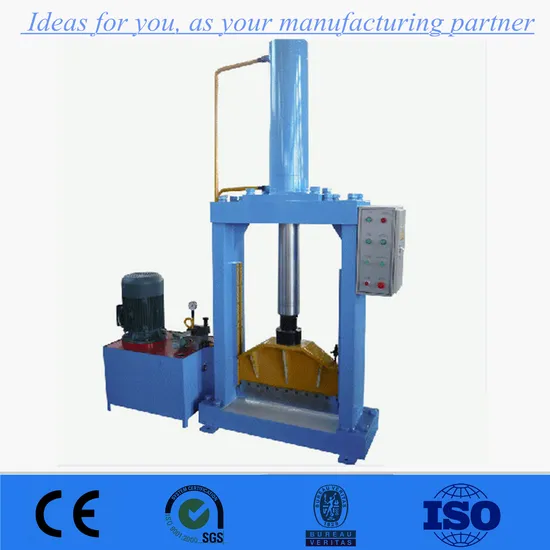

Rubber raw material machine manufacturer rubber cutter/rubber bale splitter
rubber bale splitter Usage:
This rubber bale splitter is mainly used to cut the natural rubber,synthetic rubber and other plastic materials,especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber

Features of rubber bale splitter
1.This rubber bale splitter mainly consists of cutting knife,frame,cylinder,base,auxiliary table,sydraulic system and electric system.
2.The nylon plate is installed on the base under the cutting knife for protecting the edge of the cutting knife.
3.When cutting the raw rubber,put the raw rubber under the cutting knife,the press the start button,the knife can cut the rubber.
5.Two limited switches are installed on the frame to control the reversal valve to change the movement direction of the knife,at the same time,it protects the cover of the cylinder.

rubber bale splitter Technical Information:

Type	XQL-8	XQL-16
Width (mm)	660	1000
Stroke (mm)	680	680
Diameter of the piston (mm)	150	150
Time Taken by the Stroke (second)	16~25	10~16
Power (KW)	5.5	5.5
Overall Dimension (LxWxH)	1900×720×2580	2240×720×2580
Weight (kg)	1500	2000
