Serigrafia Maquinaria Cylindrical Silk Screen Printing Machine Silk Screen Printer for Bottles/Cups

Product Description

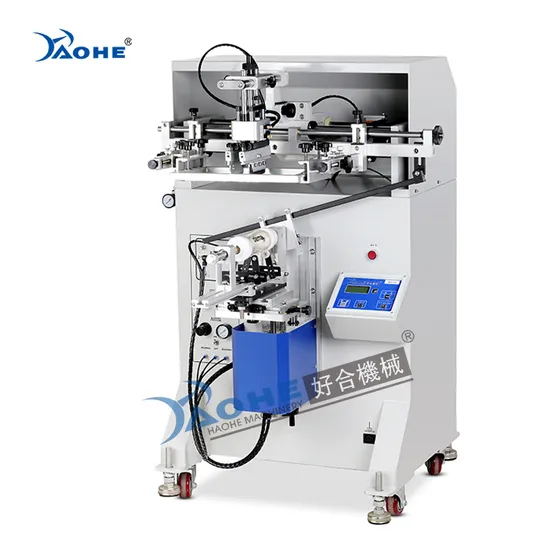

Product DescriptionHA-3A semi-automatic bottle and container screen printer is a well designed and versatile machine. The HA-3A can screen print
on flat and cylindrical objects such as blow molded bottles, cosmetic tubes, aluminum water bottles, drum sticks, glass pipettes,
etc. The HA-3A features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the
front panel, making the HA-3A the perfect all around universal screen printing press.Machine Features:
1. Pneumatic controlled with shock absorbers;
2. Microprocessor controlled-PCB;
3. Vertical part lift with height adjustment;
4. Print stroke controlled with rodless cylinder;
5. X/Y/R positioning ware-mounting table;
6. Linear ball bearings on hardened shafts;
7. Squeegee tilt, skew, and height adjustments;
8. Screen frame angle 7 tilt adjustable;
9. Synchronized bottle inflation system with regulator;
10. Regulated squeegee pressure with pressure gauge;
11. Floor levelers & casters;
12. Foot switch controlled.
Product Parameters

Model	HA-3A
Drive System	Pneumatic
Printing Cycle Speed	1200 cycles/hr
Frame Up/Down Stroke	100 mm
Max. Print Area Round Max. Print Area Oval MAX. Print Area Flat	110 mm 340 mm 200*320 mm
Squeegee Pressure	2-4 bar
Squeegee Speed	20 min
Squeegee Angle	0-15°
Working Table Size	250x400 mm
Table Adjustment	X, Y±15mm/θ15°
Max. Screen Frame Size	380*580 mm
Screen Frame Thickness	18-25mm
Voltage	110V/220V 50/60Hz 50W
Air Pressure Input	80 psi
Air Consumption	0.7L/cycle
Weight	150kg
Crated Weight	230kg
Dimension	880*830*1350 mm
Crated Dimension	1050*980*1430 mm

Company ProfileHowell Print Technology Ltd. is located in Dongguan Guangdong province, covering an area of about 10,000sqm for more than 20 years.
Our company specialized in making pad printing machine & screen printing machine for semi-automatic and fully automatic equipments.We are a leading manufacturer and exporter of pad printing machine and screen printing machine Since 1996, We making all the parts that designed by our engineer with more than 20 years experience of the printing machines.
OEM and ODM are acceptable.
Our Advantages1. 20+ Years Experience
Since 1996, Howell started pad&screen printer business in Guangdong as a manufacturer, in the year 2020, we expanded our factory to 10,000 sqm.
2. Professional Team
R&D department, 3 person, OEM&ODM are acceptable; Sales department, 8 international sales and 10 domestic sales.
3. Production Line
7 CNC machines, spare parts made by ourselves and more than 100 sets products output per month.
4. After-sale Services
Online training, Online support, Video technical support and 1 year warranty.
Certifications
Packaging & Shipping
FAQ1. Are you a factory or trading company?
A: We're original manufacturer, more than 20 years experience in machinery industry.
2. Do you support OEM/ODM?A: Yes, we have a professional technique team, we could produce the machine depends on your requirements. 3..How to place order to your company?A: Kindly send inquiry with the details product via Made in China or email ID to us. 4.What's payment do you support?
A: T/T, Paypal, Western Union, L/C is accepted. 5.What are your main production?
A: We are professional manufacuring in Screen printing machine, Pad printing machine, Ceramic printing Machine and related mechanical accessories.
Welcome your Inquiry!
