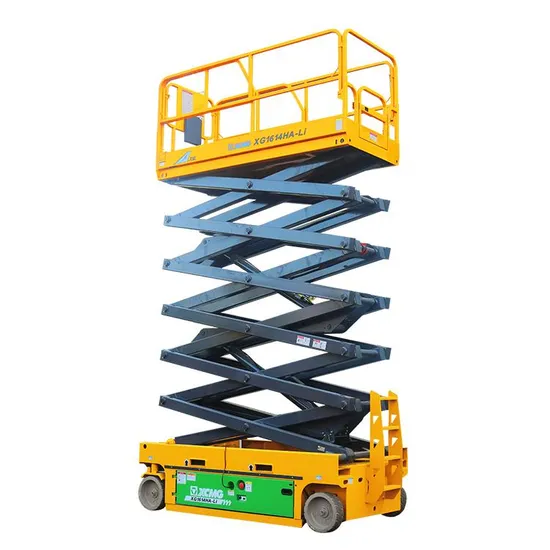

Hot Sale Xcm G 16 M Xg1614ha-Li Scissor Lift

Product Description

Detailed Photos
Product Parameters

Item	Unit	Parameter
Dimension of machine Length (without ladder)	mm	2840 (2630)
Dimension of machine Width	mm	1270
Dimension of machine Height (platform folded)	mm	2600 (2060)
Wheelbase	mm	2240
Wheel track	mm	1123
Min ground clearance (Pit protector ascending/descending)	mm	100/20
Dimension of working platform Length	mm	2640
Dimension of working platform Width	mm	1120
Dimension of working platform Height	mm	1263
Dimension of working platform Extension length of the auxiliary platform	mm	900
Centroid position of machine Horizontal distance to front shaft	mm	1127
Centroid position of machine Height of centroid	mm	720
Total mass of machine	kg	3350
Max. height of platform	m	13.7
Min. height of platform	m	1.478
Max working height	m	15.7
Min turning radius (inner wheel/outer wheel)	m	0/2.65
Rated load	kg	230
Payload of extended platform	kg	115
Lifting time	s	65-82
Lowering time	s	61-80
Drive speed(lowered)	km/h	3.2
Drive speed(elevated)	km/h	0.8
Max. gradeability	%	25
Tilt warning angle (side/forward and backward)	°	1.5/3
Lifting / traveling motor Model	-	-
Lifting / traveling motor Rated power	kW	4.5
Lifting / traveling motor Manufacturer	-	-
Battery Model	-	T1275/6-EV-100
Battery Voltage	v	24
Battery Capacity	Ah	300
Battery Manufacturer	-	Trojan/ Leoch
Tire models	-	Traceless and solid /381×127
