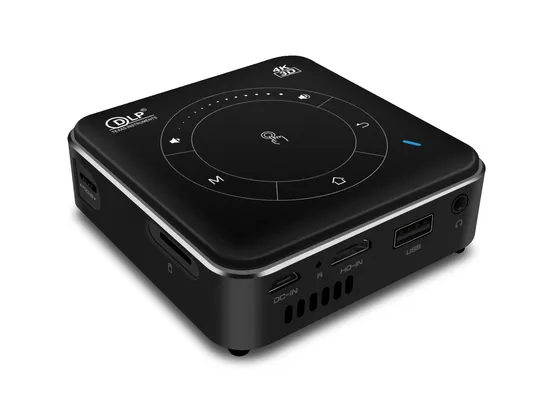

DLP 50 Lumens Android 9.0 DLP Smart Projector
Basic Info.
Model NO.
MP11
Brightness
>2500 Lumens
Working Principle
DLP
Video
Video
Communication
Wireless
Color
Black
Composition
Mini DLP Projector
Projection Technology
DLP(0.2"DMD)
Projection Light
RGB LED Osram Q6
Light Life
up to 20, 000 Hours
Light Luminance
50 Lumens
Light Type
LED
Standard Resolution
WVGA 854*480
Projection Area
40-300 Inch
Contrast
500:1
Projection Ratio
1.4:1 31 Inch
Projection Distance
1-8m
Aspect Ratio
16:9
Focus Mode
Manual Focus
Keystone Correction
Multi Angle Adjustment
Projector Character
Interaction
Projection Mode
Front Projection
Transport Package
OEM
Specification
8x8x2.8cm
Trademark
OEM
Origin
Shenzhen
Production Capacity
5000PCS/Month
Product Description
50 Lumens Four-corner DLP Smart Projector
Parameters
| Projection Specification | |
| Projection Technology | DLP(0.2"DMD) |
| Display Chip | RGB LED OSRAM Q6 |
| Light Life | Up to 20,000 hours |
| Light Luminance | 55 Lumens |
| Light Type | LED |
| Standard Resolution | WVGA 854*480 |
| Projection Area | 30-120 inch |
| Contrast | 500:1 |
| Projection Ratio | 1.35:1(33.5 inch@1M) |
| Distortion | <1.0% |
| Luminance Uniformity | >85% |
| Projection Distance | 1-5m |
| Aspect Ratio | 16:10 |
| Focus mode | Manual focus |
| Keystone Correction | Vertical ±45 degree,Horizontal ±40 degree,Multi angle adjustment |
| Projector Character | Interaction |
| Projection Mode | Front Projection |
| Offset function | NO |
| 3D | YES |
| System Parameters | |
| Screen Mirror | Airplay/MiraCast |
| OS | Android 9.0 |
| CPU | T972(Amlogic) |
| Basic Frequency | Quad Core ARM Cortex-A55 CPU |
| GPU | ARM Mali-G31 MP2 GPU |
| Buffer Memory | 2GB/4GB LPDDR4 |
| Memory | 16GB/32GB EMMC |
| WIFI | 2.4G/5G |
| Bluetooth | BT 4.2 |
| Basic parameters | |
| Built-in Battery | 3000mAh 3.7V 11.1Wh |
| Usage time | work for about 1.5 hours |
| Video Support(up to 4k) | VP9-10,H.265,H.264,MPEG-4,WMV/VC-1,MPEG-2,MPEG-1,RealVideo 8/9/10 etc. |
| Audio Support | MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV |
| Image Support | Supports variety of image formats browsing (jpg, png, bmp etc.) |
| Extended Storage | Support TF Card and Hard Disk |
| Remote Control | Support(IR) Infrared and 2.4G wireless control |
| Built-in speaker | one 1W speaker |
| Light machine Consumption | 3W |
| Whole Power Consumption | 8W |
| Power Performance | AC100-240V,50/60Hz DC 5V 3A |
| Interface | 1*TF Card: Max 32GB |
| 1*HDMI: HDMI Input 1.4 | |
| 1*USB: USB 2.0 Support USB hard disk data read | |
| 1*Earphone: Audio output, 3.5mm joint (can connect with earphone or speaker box) | |
| 1* MICRO USB input: DC 5V 3A & OTG | |
| Package | |
| Colour | Gray(2GB+16GB) / Black(4GB+32GB) |
| Net weight | 188g |
| Dimension | 80*80*28mm |
| Gift Box weight | 580g |
| Gift Box Size | 145.5*105*84mm |
| Carton box weight | 6.14kg (10pcs) 12.1kg (20pcs) |
| Carton box size | 445*165*230mm (10pcs) 445*310*225mm (20pcs) |
Features
DLP 50 lumens; Android 9.0; 3D/4K decoding HDMI input; 2.4/5G wifi; up and down trapezoid automatic correction + four corner correction + zoom; Android&IOS wireless same-screen button panel, metal middle frame
