Professional Manufacturer Long Span Wire Mesh Decking Racks
Basic Info.
Usage
Tool Rack, Tools, Industrial, Warehouse Rack
Material
Steel
Structure
Wire Mesh Decking
Type
Wire Mesh Decking
Mobility
Mobile
Height
0-5m
Weight
300~1500kg
Closed
Open
Development
Conventional
Serviceability
Common Use
Load in 40hq
2448
Channel Type
Flared/U/Inverted Channel, etc.
Finish
Zinc Plated/ Hot DIP Galvanized/Powder Coating
Style
Accessories of Warehouse Rack
Color
Customized
Steel Type
Mild Steel Q235
Certification
ISO9001/TUV/ BV/ SGS
Transport Package
Plastic Banding+Stretch Film Wrapped
Specification
W880*1100d mm
Trademark
Jiamu
Origin
China Dalian
HS Code
73269000
Production Capacity
100, 000 Pieces/Month
Product Description

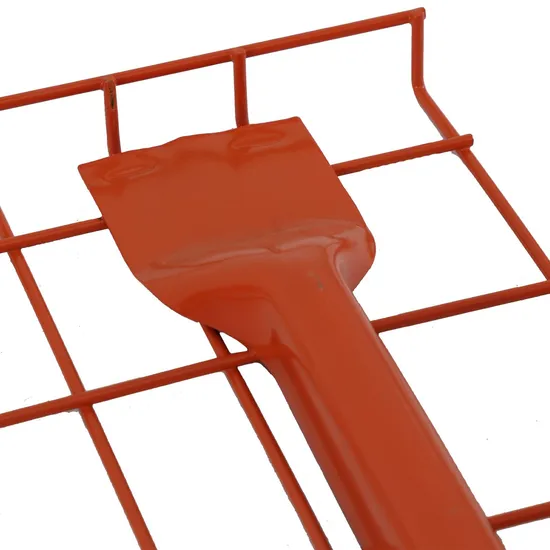

Product Description Wire decking is used as support of material or products that are placed on certain pallet rack. It allows the visibility and air flow of racking system , and it's easy installation by just put the wire deck on rack without no tools required.Strong, lightweight welded wire mesh construction. Custom designable, Our wire decking is made to fit the specific depth, length and load capacity of your rack system. Two styles are our standard: for step beam and box beam pallet racks.
Wire deck specification:
Wire thickness 3.0-5.0mm Grid :25x100mm,50x100mm Channel thickness : 1.5-2.0mm Loading capacity : up to 1500kg per piece Surface finishing : hot dip galvanized, zinc coat and powder coated
Features: Easy installation Visibility Strong and light weight Cheap compared with wood panel & steel panel
| Euro Sizes | ||
| A. Loading capacity 300kg | B. Loading capacity 800kg | C. Loading capacity 1000kg |
| Mesh 50×150 mm | Mesh 50×100mm | Mesh 50×100mm |
| Dim (D×W) (mm) | Dim (D×W) (mm) | Dim (D×W) (mm) |
| 600×880 | 1000×880 | 1000×1340 |
| 1000×880 | 1050×880 | 1050×1340 |
| 1050×880 | 1100×880 | 800×1340 |
| 1100×880 | 1000×1090 | 1200×1340 |
| American Sizes | ||
| Standard U-channel | Flared channel | |
| Dim (D×W) (mm) | Dim (D×W) (mm) | |
| 24"×46" | 42"×46" | 24"×46" |
| 30"×46" | 42"×52" | 36"×46" |
| 36"×34" | 42"×58" | 36"×52" |
| 36"×46" | 48"×34" | 42"×46" |
| 36"×52" | 48"×46" | 42"×52" |
| 36"×58" | 48"×52" | 44"×46" |
| 42"×34" | 48"×58" | 48"×46" |
