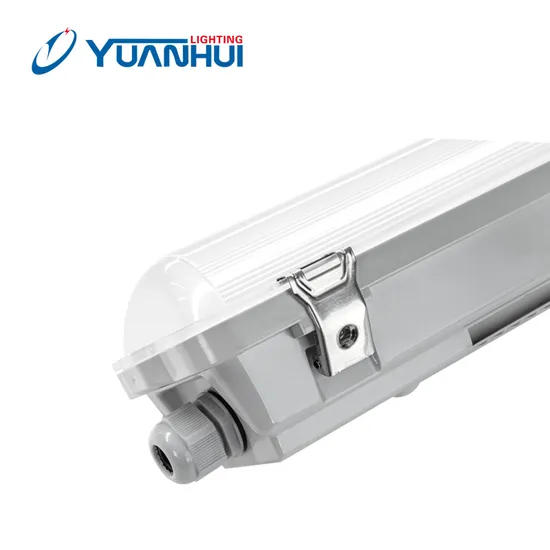

LED Lamp Fixture IP66

Product Description

1.Technical Parameters(Test Conditions:25ºC/55%-60%Humidity):

Model No.

LMF12-600

LMF24-600

LMF24-1160

LMF36-1160

LMF48-1160

LMF34-1560

LMF54-1560

LMF70-1560

Lens

OPAL

CLEAR

OPAL

CLEAR

OPAL

CLEAR

OPAL

CLEAR

OPAL

CLEAR

OPAL

CLEAR

OPAL

CLEAR

OPAL

CLEA

CCT@Lumen Output(lm)

2700K-6500K(Standard: ANSI C78.377)

1372

1537

2648

2967

2527

2831

3716

4163

4840

5423

3207

3593

5082

5694

6291

7048

Certificate

CE-LVD EMC ROHS GS CB ENEC SAA C-TICK CCC UL

Power(W±10%)

12W

24W

24W

36W

48W

34W

54W

70W

LED No./Spec.(SMD)

24PCS

50PCS

50PCS

75PCS

104PCS

78PCS

120PCS

156PCS

Input Voltage(V)

AC220-240V,50/60Hz

CRI

80

Beam Angle(°)

120

Driver Type

OSRAM

LED Chips

EVERYLIGHT 2835/LEXTAR 2835

Operating Ambient Temperature(ºC)

-20ºC~40ºC

Operating Humidity(ºC)

10-%~90%

Warranty

Up to 5 Years

IP

IP66

IK

08

GLOW WIRE TEST

Pass 850ºC

Material

Polycarbonate material

Net Weight(kg)

0.96

1.96

1.78

1.92

1.92

2.56

2.56

2.56

Product Size(mm)

600*120*108

1160*120*108

1560*120*108

2.Product Descroption:
1.INPUT VOLTAGE: AC220V-240V, 50/60Hz.
2.HIGH PERFORMANCE- OSRAM DRIVER for maximum efficiency.
3.EFFICACY- High Quality LED chips: from EVERYLIGHT /LEXSTAR for maximun light output and life.
4.RELIABILITY- Reflector with MCPCB as heat sink.
5.RUGGED- Body & Diffuser have an High Impact Rating IK08 and GLOW WIRE TEST Inflammability Test to 850ºC.
6.PERFECT REPLACEMENT for the whole set of T8 fluorescent lightig fixture.
7.SAVE UP to 60% in electricity consumption compared to fluorescent lighting fixture.
8.LONG LIFETIME- 50,000 hours or typically Ten Years before replacement.
9.LIGHTWEIGHT body material, corrosion resistant, waterproof and dustproof.
10.EASY INSTALLATION with fast connection design, shorten the installasion process and save labor cost.
11.FLEXIBILITY- Module can be fitted with Microwave sensors and an Emergency Battery to meet your special order requirement.
12.WIDE OPERATING RANGE- IP66 Dust, Dirt and water jet proof and temperature from -20ºC~40ºC.
3.Applications:
Multi-storey Car Parks, Warehouse and Factories, Farm Buildings & Stables, Transport Hubs(platforms), Schools & Hospitals (walkways & kitchens) ,Glasshouses/Horticultural buildings, Sports Stadiums etc.
FAQ:
Q1: Can I have a sample order for led light?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What is the lead time?
A2: Samples need 3-5 working days, mass products need 7-10 days.
Q3: Do you have any MOQ limit for led light order?
A3: Low MOQ, 1pc for sample checking is available.
Q4: How do you ship the goods and how long does it take to arrive?
A4: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5: How to proceed an order for led light?
A5: Firstly let us know your requirements or application.Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.
Q6: Is it OK to print my logo on led light product?
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A7: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A8: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
