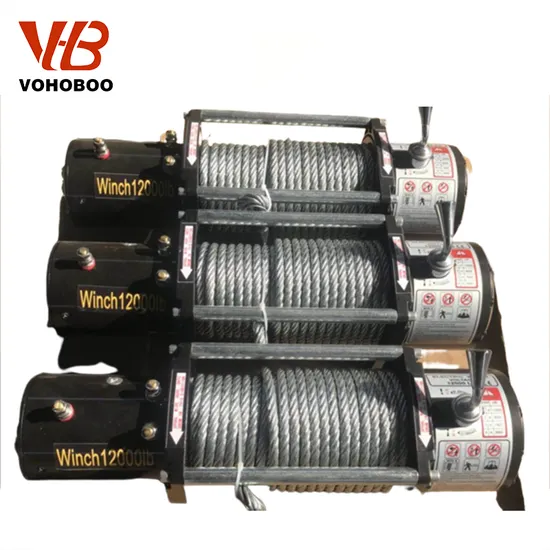

Good Quality 12V/24V Car Electric off Road Winch
Basic Info.
Model NO.
VHB
Type
Electric Winch
Power Type
Series Motor DC
Pull Direction
Forward
Manual Winch Type
T10
Electric Winch Model
ATV
Working Voltage of Electric Winch
Low Voltage
Hydraulic Winch Type
High Pressure
Brand
Vohoboo
Applicable Environment
Mountain Road
Product Name
off-Road Winch
Rope Length
6m/ 10m/ 20m /24m
Lashing Capacity
2000lb-16800lb
Color
Black or Customized
Voltage
DC 12V or 24V
Ratio
153:1 / 136:1/164:1/265:1/358:1
Drum Size
1.25"/1.45"/2.52"
Control
Remote Switch
Application
ATV/UTV, Car
Power Source
Electric
Clutch
Turning 180°
Rope Type
Wire Rope/Single Rope or Double Rope
Usage
Cable Pulling Machine
Material
Steel
Brake
Automatic
Transport Package
Standard Export Packing
Specification
2000lb-16800lb
Trademark
VOHOBOO
Origin
Hubei, China
HS Code
84253190
Production Capacity
5000sets Per Month
Product Description
Product Description Specifications:DC 12V Car Winch, mini 12v or 24v electric winch:
1. Capacity: 2000-15000lbs
2. Sling type: wire rope
3. Voltage: DC 12v or 24v
DC 12V Car Winch, mini 12v electric winch Introduction:
DC 12V/24V Car Winch is the most common winch, driven by vehicle's own power system. It works in such a way that converting automobile engines power into electricity power to drive the motors and drag noose. It enlarges the output power by the inside planetary reducer to achieve deceleration & torsion enhancement and pull cargo.
Product Features:
It is generally installed in the middle of the front car and connected with the car frame, exposed or hidden in the bumper.
Winch traction is valued by pound which can be converted to ton or kilogram. Do not exceed the rated traction.
The more cycles of winch wire rope on the reel, the less pull the outer cycle to bear.
The best advantage is that it can be normally used in condition of vehicle switch off while others can not.
Easy and multi-position installed, fast movable.
High density & high strength wire rope, durable and firm.
Product features:1.12/24V volt series wound motor for power and fast line speed2. Low-profile design will fit suv, offroad, jeep and so on3.Durable, smooth, and reliable three-stage planetary gear train4. Automatic load-holding break for safety5. The clutch allows you to release winch rope by hand6. Aircraft grade wire rope, or synthetic rope is optional7. Remote switch + wireless remote control8. We have 100% testing on winch pulling capacity and function9. Our products are of well-designed, beautiful appearance and easy to install
Product Details
Product Advantages
Product Parameters
| Model | Lashing Capacity | Rope length | Rope diameter | Voltage | Ratio | Drum size | Weight |
| 2000lb | 2000lb | 6m | 4mm | DC 12v or 24v | 153:1 | 1.25” | 6.5kg |
| 3000lb | 3000lb | 6m | 5mm | DC 12v or 24v | 153:1 | 1.25” | 7kg |
| 3500lb | 3500lb | 10m | 5.4mm | DC 12v or 24v | 153:1 | 1.45” | 9kg |
| 4000lb | 4000lb | 10m | 6mm | DC 12v or 24v | 136:1 | 1.45” | 10kg |
| 4500lb | 4500lb | 10m | 6mm | DC 12v or 24v | 136:1 | 1.45” | 12kg |
| 6000lb | 6000lb | 20m | 6.4mm | DC 12v or 24v | 164:1 | 2.52” | 28kg |
| 9500lb | 9500lb | 24m | 8.3mm | DC 12v or 24v | 265:1 | 2.52” | 37kg |
| 12000b | 12000b | 24m | 9mm | DC 12v or 24v | 265:1 | 2.52” | 38kg |
| 16800lb | 16800lb | 24m | 10.5mm | DC 12v or 24v | 358:1 | 2.52” | 56kg |
Packaging & Shipping
