PLC/Ipc Control CNC Mandrel Pipe Bending Machine Pipe Bender CNC Tube Bending Machine Copper, Brass, Stainless Steel, Aluminum, Carbon Steel (GM-SB-38CNC-2A-1S)
| US$14,500.00-16,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GM-SB-38CNC-2A-1S
Warranty
2-year
Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Pipe and Tube Bending Machine
Certificate
ISO 9001:2008
Applicable Material
S. S., M. S., Copper, Aluminium, Alloy, Galvanized
Applicable Shape
Round, Rectangle, Square, Oval, Solid Bar, Profile
Technical
Draw Bending/Drawing Bending+Booster/Rolling
Optional Function
Manual Feeding or Manual Rotating
Transport Package
Iron Frame/Wooden Case
Specification
CE
Trademark
GMACC
Origin
China
HS Code
8462219000
Production Capacity
5000PCS/Year
Product Description

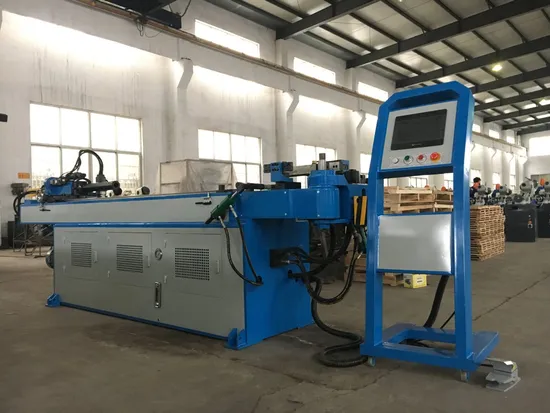

GM-SB-38CNC-2A-1S Full-Auto Numerical ControlSingle-Head Bending Machine
Model:SB38×2A×1S
Machine Characteristics
GM-SB-38CNC-2A-1S Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe rotating(B axis), and pipe feeding(Y axis) are both driven by servomotor. Pipe bending(C axis) is hydraulic by cylinder.
Main Technical Parameter
| Name | Unit | Parameter |
| Max. Bending Capacity | mm | ¢38*2 |
| Bending Radius Range | mm | 20-200 |
| Max. Bending Angle | ° | 190° |
| Bending Speed | °/sec | 60 |
| Turning Speed | °/sec | 200 |
| Feeding Speed | mm/sec | 1000 |
| Bending Precision | ° | ±0.10 |
| Turning Precision | ° | ±0.10 |
| Feeding Precision | mm | ±0.10 |
| Turning Servomotor Power | kW | 0.4 |
| Feeding Servomotor Power | kW | 1 |
| Though Effective Distance | mm | 3200 |
| System Motor Power | kW | 4 |
| Max. Pressure | Mpa | 16 |
| Oil Pump Delivery Volume | L | 14 |
| L*W*H (Packaging Dimension) | mm | 3500*700*1300 |
| Weight | T | 2.0 |
| Name | Manufacturer |
| Hydraulic Motor | Siemens Beide or Suzhou Runmali |
| Hydraulic Pump | Wuxi Tuoli |
| Hydraulic Valve | Yuci Yuken |
| Oil way Board | Suzhou Boguan |
| Cylinder | Shanghai Qifan |
| Oil tube | Suzhou Kejia |
| Touch screen | Taiwan Weinview(Imported) |
| PLC | Japan Mitsubishi(Imported) |
| Servo Motor | Japan Mitsubishi(Imported) |
| Angle controller | Japan Nemicon(Imported) |
| Switch power | Wenzhou Changxing |
| Contactor | German SCHNEIDER(Imported) |
| Other Electric Parts | German SCHNEIDER,Omron, Taiwan SHILIN(Imported) |
Contact Person: Mr. Ronaldo Chen
