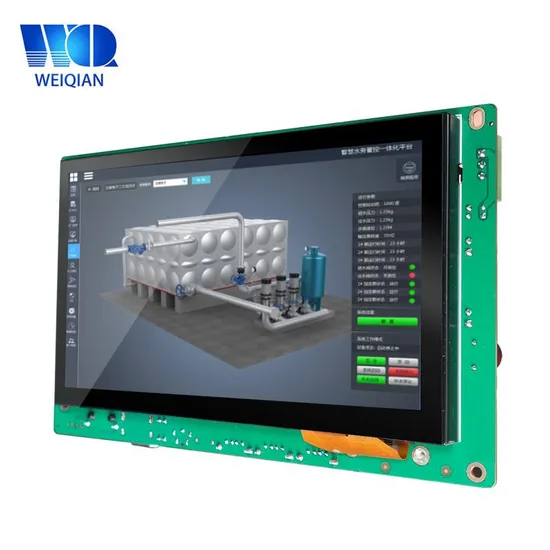

Embedded Fanless Wide Tablet Multi Size IP65 Waterproof 7 10.1 Inch Industrial Touchscreen Android Panel PC

Product Description

Embedded Fanless Wide Tablet Multi Size Ip65 Waterproof 7 10.1 Inch Industrial Touchscreen Android Panel Pc


1. Parameter

Product model	WAR-070C-RN00
Basic parameters	CPU:Quad-core Cortex-A17; Frequency 1.6GHz GPU: Quad-core ARM Mali-T764 Memory:2GB DDR3 EMMC:8GB EMMC
Display screen	Size:7 inch Resolution:1024×600 Wide-temperature type,16000k colors or 24-bit true colors LED backlight:lifetime > 25000 h
Touch screen	Capacitance touch screen
Hardware interface	4 channel 3-wire RS-232 serial port (COM1~COM4). 3 channel RS-485(COM1,COM2,COM5), multiplexing with RS-232 ( COM1/COM2 ) . 1 channel USB Device interface,support ADB connect to PC to exchange date and debug application . 3 channel USB Host interface, support usual USB device such as mouse, keyboard, U disk ,etc. 1 channel 1000M Ethernet interface. 1 channel SD/MMC slot,support TF and MMC card. 1 channel 3.5mm Audio output interface. 8 channel IO port ( Customize input and output ). 1 channel HDMI interface. ( Optional ). 1 channel MIC interface (optional) . 1 channel External Power Amplifier (8Ω/2W) (optional). 1 channel CAN (optional) , multiplexing with RS-485 (COM5). 1 channel 2EDG3.5 (DC 12~24V) Power iuput interface. Built-in WIFI ,4G , BT (optional) .
Attention	When the serial port is connected, The GND wire of the two devices must be connected to avoid burning the serial chip and affecting communication.
OS	Android 8.1.0
Defend degree	/
Working environment	Power:DC 12~24V (24V as recommendation) Working temperature:-10~60ºC Storage temperature:-20~80ºC Working humidity:10~90%RH
Size	Caseless Size :188×117×41 (mm)
Application area	industrial control,detection device,instruments and meters,security monitoring,medical apparatus and instruments, intelligent terminals embedded high-end application. Support CAN bus network deployment.
Software support	Support Eclipse,Android Studio,QT Creator,Visual Studio 2015/2017 development,support JAVA/C/C++/C# ,etc . Linux support Eclipse, QT Creator, arm Linux GCC /g++ compiler, shell programming, STL library, python2.7 development, support JAVA/C/C++/C# and other languages . Easy change the user-defined splash screen.

2.Interface definiton
2.1 RS-232 interface4 channels RS-232,support the highest-level Baudrate 115200bps. The corresponding interface in Android system is COM1 ~ COM4 .2.2 RS-485 interface3 channels RS-485, The corresponding port in Android system is COM1,COM2,COM5,and multiplexing with RS-323 (COM1/COM2) .
2.3 CAN Bus interface
The function of Can-bus interface is optional , and multiplexing with RS-485 ( COM5).
3.Exterior size
Exterior size :188x117x41(mm)
Company Profile
FAQ Q: What kind of all-in-one industrial panel pc do you manufacture? A: Windows CE / Android / Linux Industrial Panel PC based on ARM Architecture ;Windows 7 /Windows 10 based on X86 Architecture since 2005 .Q: What is the main size for your panel pc and industrial monitor? A: 4.3" / 5"/ 7"/ 8"/10.1"/10.2"/ 10.4"/11.6"/12"/13.3"/15"/15.6"/17"/19"/21.5"/32" and wide screen the same zise. We also support the customized.Q: Does this industrial panel pc support secondary development? A: Weiqian's industrial panel pc can support secondary development.Q: What industry is your industrial panel pc applied in? A: Medical Equipment,Electric Power Equipment, Intelligent Parking ,Industrial Automation Production, Environmental Monitoring System, Smart Factory, Smart Warehouse, Smart Buildings, Smart Transportation, Smart Farming, Computer Room Monitoring system, instruments and meters, security monitoring, intelligent terminals embedded high-end application, etc.Q: Can we printing our logo on the Plastic case or Metal case ? What is MOQ ? A: Yes,we can do the silk-printing or UV printing LOGO in the case. MOQ is 200pcs.Q: Whether your industrial panel pc support the OEM / ODM? A: Weiqian 's industrial panel PC support the customization with size, function, appearance, resolution, high brightness ,boot interface and etc.Q: What kind of inspection you can provide? A: Weiqian has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales representative, to guarantee all signage players are in perfect condition before shipment.Q: What is your warranty period? A: 1 Year warranty period & Lifetime technical support.
