Tungsten Carbide Precison Dies for Gringding Wheel Making
| US$45.00-70.00 | 5 kg (MOQ) |
Basic Info.
Model NO.
Tungsten carbide precison dies
Processing Method
Punching and Shearing Mould
Technics
Tungsten Carbide Cold Heading Dies
Process Combination
Composite Mould
Manufacturing Technology
Automation Technology
Driving Motor Type
Hybrid
Mold Cavity Technology
CNC Milling
Milling Speed
Normal Speed
Parts Detection Method
Measurement of Three Axis NC
Product Name
Tungsten Carbide Precison Dies for Gringding Wheel
Other Name
Tungsten Carbide Forging Dies
Key Words
Carbide Dies, Carbide Mold
Applciation 1
to Be Used as Wear Parts
Applciation 2
to Be Used as Mold to Make Nails
Field Can Be Used 1
Fastener Industry
Field Can Be Used 2
Auto Industry
Field Can Be Used 3
Where High Enduribity Requried
Transport Package
in Carton
Specification
customized
Trademark
UBT
Origin
China
Production Capacity
40tons/Month
Product Description

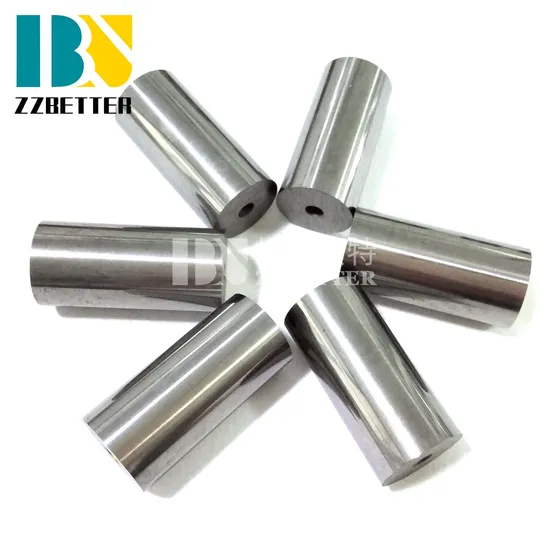

Tungsten Carbide cold heading dies have high impact resistance, toughness, and wear resistance. They are mainly used in processing some hard metal tools, especially for bolts, rivets, heading of screws, nibs nuts, and so on.
Grade recommended:
| Grade | ISO | Performance | Performance&application recommended | ||
| Density | Hardness | TRS | |||
| G/Cm3 | HRA | N/mm2 | |||
| YG11C | G20 | 14.4 | 88.5 | 2600 | Forming or stamping dies for metal powders and nonmental powders. |
| YG15 | G30 | 14.0 | 87.5 | 2800 | For punching, stamping, forging tools under large stress. |
| YG18C | G30 | 13.7 | 84.5 | 3100 | Impact resistance forging dies,hot-press forging dies and rollers. |
| YG20 | G40 | 13.5 | 85.5 | 3200 | For fabricating of stamping dies for watch parts, spring plates of musical instruments, battery jars, screws, screw caps. |
| YG20C | G40 | 13.5 | 83.5 | 3300 | Dies for wear resistant or impact resistant application. |
| YG22C | G40 | 13.3 | 83 | 3500 | Nut forming dies and high impact resistance forging dies. |
| YG25C | G50 | 13.1 | 82.5 | 3600 | Stainless bolt header dies and rollers |
The advantages of ZZbetter tungsten carbide heading dies
1. Many carbide grades available
2. Numerous sizes available
3. Normal and abnormal shapes available
4. High performance for hot forging and cold heading
5. Maintain good shape in high bending strength
6. Can offer precision grinding service
7. Accept custom design
8. Provide professional suggestions
9. Free sample can be provided
10. Strict quality controlled and short production time
Welcome to contact us for more details!
