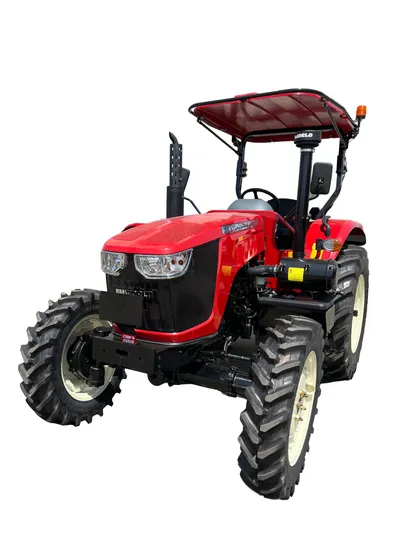

Fmworld 704f Agricultural Farm Mini Wheel Tractor 70HP
| US$9,000.00-9,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WD704F(F-Series)
Type
Wheel Tractor
Usage
Farm Tractor, Garden Tractor, Lawn Tractor, Multi-Functional
Certification
ISO, CE
Drive Wheel
4WD
Emission Standard
Cn Stage II
Fuel
Gas / Diesel
Service Life
6-10 Years
Size
Medium
Color
Red &Black
Condition
New
Power
70HP
Transmissions
Shuttle 12f+12r
Grand Clearance
490mm
Tires(F/R)
9.5-24 R-1W/14.9-30r-1W
Ballast Weight Front/Rear
180/90kg
Mini Operation Weight
2540kg
Transport Package
Container
Specification
3820*1710*2550mm
Trademark
FM World
Origin
China
HS Code
87019210
Production Capacity
20000 Sets Per Year
Product Description
Feature:-High quality engine with strong power but low fuel consumption
-Adopt transmission 12F+12R shuttle for easier operation which caters to different needs
-Axles wiht outstanding sealing performance ensure tractors working well in water or deep muddy field
-High quality bearings are used for long prolonging working life
-ROPS&Canopy are equipped as standard, while cabin and air brake are optional for comfor and road transport
Specification
| Model | WD554F | WD604F | WD704F | |
| Structure | 4*4 | |||
| Engine | Engine Power@speed(HP) | 55@2300 | 60@2300 | 70@2300 |
| Engine Type | 4 Cylinder, Inline, Vertical, Water-cooled, diesel engine | |||
| Fuel Tank Capacity(L) | 60 | 115 | ||
| Battery | 12V | |||
| Air Cleaner | Dry | |||
| Transmission | Gears | Shuttle 12F +12R | ||
| Clutch | Dual Clutch | |||
| Brake | Mechanical disc | |||
| Differential Lock | Pin Type, Mechanical | |||
| PTO System | Direction of turning | Clockwise,viewed from tractor rear | ||
| Diameter of PTO Shaft(mm) | 35 | |||
| PTO Speeds(rpm) | 540/760 | |||
| Hydraulic system | Type | Category II & 3 point hitch | ||
| Control System | Position ,draft | |||
| Rear Auxiliary Remote Valves | 2 groups | |||
| Lifting Capacity(KG) | >=970 | >=1588 | >=1853 | |
| Other Parameters | Steering | Hydraulic Power Steering | ||
| Dimension(mm)@canopy | 3570*1710*2660 | 3820*1850*2720 | ||
| Gorund Clearance(mm) | 460 | |||
| Tires(F/R) | 8.3-20/12.4-28 PR-1 | 9.5R24/14.9R30 R-1W, other size optional | ||
| Wheel Base (mm) | 1992 | |||
| Wheel Track(F/R)(mm) | 1300~1400/1300~1500 | 1300~1400/1300~1500 | 1300~1400/1300~1500 | |
| Ballast Weight Front/Rear(kg) | 180/90 | |||
| Min Operation Weight(kg) | 2326(canopy) | 2500(canopy) | ||
