Toolsmaker Microscope with Video Inspection Function

Product Description

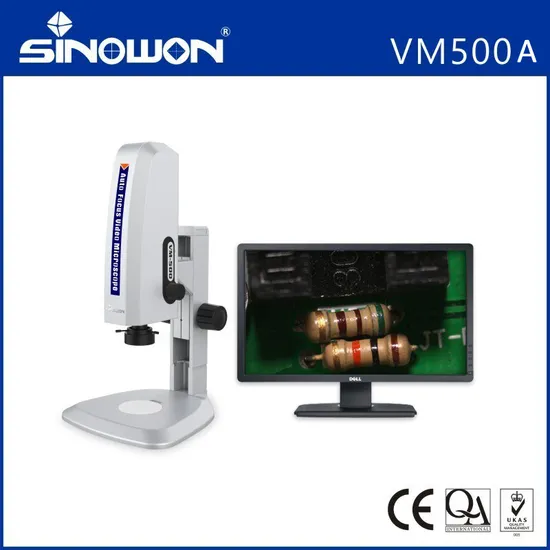

Auto Focus Video Microscope VM-500A

Application:
Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.
Product Characteristics: Integral design, exquisite, fashion, generous; Built-in FULL HD sensor and VGA integrated camera, can directly connect with the monitor to realize video image and can also use SD card to take picture or record video, which integrate video observation and image storage; With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification; With adjustable LED surface reflection illumination, is able to control brightness independently; With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.
Technical Specification:

Product Name	Auto Focus Video Microscope
Model	VM-500A
Code#	451-450A
Electronic Magnification	33.47X~215.19X( HDMI 16:9 21.5"Monitor;)
Optical Objective	0.7X~4.5X Zoom Lens
	Zoom ratio:6.5:1
Camera Parameters	2 million pixel (1920*1080)
	Image Size:1/2.8"
	Frames Per Second:30fps
Camera Function	Auto Focus
	Cross Line
	Photograph and Video Record
	Output: HDMI
	White Balance; Brightness Control; Digital Noise Reduction
Illumination	Surface: Adjustable LED Surface Illumination
	Ring Fiber Illumination Optional
Microscope Stand	Z-axis Travel: 100mm
	Coarse Lifting System
Electrical Parameters	AC90~240V;50~60HZ
Dimension	310*285*500 mm
Weight	6Kg

Standard Delivery:

Microscope Main Body VM500A	0.5x Objective lens
HDMI 21.5" Monitor	Mouse
HDMI Cable	Kingstore 16GB USB
Power Cable	Operation Manual/Warranty Card/Certificate/Packing list
