PV Solar Panel Cable PV1-F H1z2z2-K Photovoltaic Solar Cable

Product Description

PV1-F Single-Core Tinned Copper Multi-Strand Solar Cable
Product Description:
The PV1-F Solar Cable is a high-performance, single-core photovoltaic cable designed for efficient and durable energy transmission in solar power systems. Manufactured to meet international standards, this cable is made from high-quality tinned copper with multi-strand construction, offering superior conductivity and resistance to corrosion over time.
This cable is specifically designed for DC solar power applications, ensuring maximum efficiency in energy transmission from photovoltaic panels to inverters or other solar power equipment. The tinned copper conductors enhance durability in outdoor environments, as they provide excellent resistance to oxidation, UV radiation, and harsh weather conditions.
The PV1-F solar cable is highly flexible, making it easy to install and adapt to various layouts in solar power systems, whether for residential, commercial, or industrial applications. It is rated for long-term performance, able to withstand high temperatures and demanding outdoor conditions, ensuring reliable energy transmission for up to 25 years.
Key Features:
Type: PV1-F Single Core Tinned Copper Multi-Strand Wire Application: DC solar power systems, photovoltaic systems Conductor Material: Tinned copper, multi-strand for enhanced flexibility and conductivity Insulation: High-quality insulation for UV, temperature, and weather resistance Standards: Manufactured according to National Standards (GB) and IEC standards Voltage Rating: 1.5kV (DC) Durability: Excellent resistance to UV rays, moisture, and environmental degradation Typical Use: Solar panel arrays, solar power systems, DC power transmission Specifications:
Nominal Voltage: PV1-F: DC 1.8KV AC 0.6/1.0KV H1Z2Z2-K: DC 1.5KV AC 1.0/1.0KV Ambient Temperature: -40ºC~+90ºC Max.Temperature at conductor: +120ºC Service life: >25 years ( -40ºC~+90ºC) Withstand voltage(V/5min): AC6500 Min bending radius(mm) : 5*D Applications:
Solar power plants Residential solar energy installations Commercial solar energy systems Photovoltaic panel connections Parameters

1	2	3	4	5
Number and nominal sectional area of conductors	Thickness of insulation	Thickness of sheath	Maximum resistance of conductor at 20ºC	Current carrying capacity
mm2	mm	mm	Ω/km	A
1x1.5	0.7	0.8	13.7	30
1x2.5	0.7	0.8	8.21	41
1x4	0.7	0.8	5.09	55
1x6	0.7	0.8	3.39	70
1x10	0.7	0.8	1.95	98
1x16	0.7	0.9	1.24	132
1x25	0.9	1.0	0.795	176
1x35	0.9	1.1	0.565	218
1x50	1.0	1.2	0.393	276
1x70	1.1	1.2	0.277	347
1x95	1.1	1.3	0.210	416
1x120	1.2	1.3	0.164	488
1x150	1.4	1.4	0.132	566
1x185	1.6	1.6	0.108	644
1x240	1.7	1.7	0.817	775

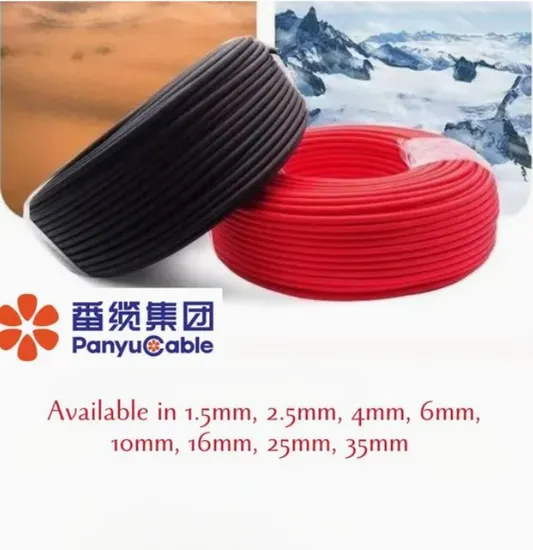

Product photographs
