Straight Line Fine Copper Wire Making Machinery

Product Description

Striaght line wire drawing machine

Model	350	400	550/560	600
Inlet Wire Dia.(mm)	3.5	4.2	6.5	8
Outlet Wire Dia. (mm)	0.6	0.8	1.4	1.6
Motor Power(KW)	5.5-11	7.5-15	18.5-22	22-37
No. of drafts	8-12	8-12	8-12	6-10

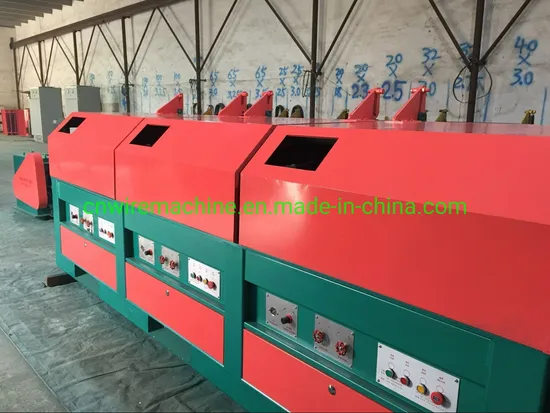

Straight line wire drawing machine
Inlet wire diameter:6mm
Outlet wire diameter:2mm
Speed:9m/s
Capstan:steel ZG45~55, hardness alloy tungsten carbide is spraying-painted on working surface, with HRC60, lifetime>=26000hours. The height of the capstan is 280mm. The height of spraying tungsten carbide is 80mm and the thickness is 2mm. The temperature of the capstan< 80ºC. Roughness <0.8μmm. There are operation buttons in front of each capstan used to adjust the tension. Cooling type: narrow slit water cooling with water proof and anticorrosive treatment.
Die box:Welding part is adopted for die box, the spraying-painted tungsten carbide is
adopted for the surface of guide wheel and guide roller. The die box is divided into lub. powder cavity and water cooling cavity (water flowing automatically for cooling)
Drive mode:Belt and gear box.The gear is made of the hard surface 20CrMnTi. The noise is less than 78db. Bearing:Produced in Wafangdian,made of GCr15 steel. Motor:22kw, 7sets,Inverted motor.Brand:Shandong Jinsheng. There is a brake to stop the motor and avoid turning in the opposite direction.Brake material: Nodular cast iron.
Inverter:SINEE/INVT brand,22kw
PLC:Mitsubishi/INVT brand,control the inverter speed Low voltage electric appliances:Chint Brand
Control station: Contact screen, EMG stop, Switch, Start button,Stop button, Acceleration button, Deceleration button and Reset button. Contact screen:Weinview/INVT color contact screen.Function: Set the wire diameter , speed and PID.It also can display and adjust the weight and length.If the four buttons "EMG Stop, System operation, Instructions, Inverter start" shows green, it means normal.When buttons change into red, it means break down .
Sensor: brand
Protective cover: Made of cold rolled steel(or stainless steel ). There is a window on the plate to observe the drawing process. Before running, you will need to drop the protective cover. If the protective cover opens, the drawing machine will stop automatically. Power consumption: Rated Motor 154KW, in reality 77kw/h Electric counter:we will equipt with electric counter for clients,
Our service Q1:Is Rising a machine manufacturer?
A:Yes,we have over 15 years experience in wire harness processing.
Q2:Does Rising use advanced machine parts in the world ?A:Yes,we brought and integrated advanced technology from Japan,Occident,and Taiwan area.
Q3:About warranty period?A:We are committed to offer about 1 year free warranty (not including wearing parts) ,we can provide door-to-door service,We promise offering life-long maintenance for the products we sold.
Q4:About online technology support?
A:We are currently preparing the online customer service platform, to solve the customer's problem through online audio and video chat.
Q5:How long can I receive my products?
A:30-55 days after we confirm payment.
