Paper Bobbin C Glass Yarn for Fiberglass Mesh
| US$1.40-2.55 | 1 kg (MOQ) |
Basic Info.
Yarn Structure
Single Yarn
Surface Treatment
Starch
Fiberglass Type
E-Glass
Twist
S/Z
Linear Density F Type
11-816tex
Sizing
Silane, Starch, Paraffin Wax
Combustible Matter Content
Less Than 1%
Temperature Resistance
550 Degree Centigrade
Transport Package
in Pallet
Specification
11-816tex
Trademark
JLON
Origin
China
HS Code
7019
Production Capacity
10000ton
Product Description
Introduction:Fiberglass yarns consist of a defined number of E-Glass filaments of a certain nominal diameter, brought together to form a yarn. The structure of the yarn is fixed and protected by a size and a slight twist, generally in Z-direction.

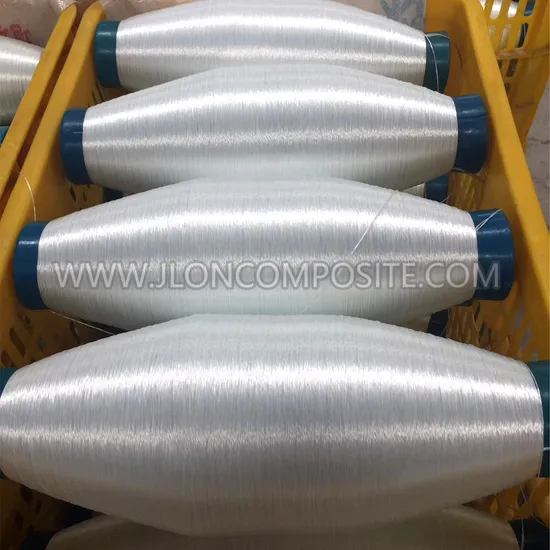

Our E-Glass fiberglass yarns are wound on hard paper/plastic bobbins and supplied in a "milk bottle" shape.The glass yarns can be also supplied on beams. The glass composition meets the certification for E-Glass as defined by ASTM's D578-00 Standard Specification for fiberglass filaments.
Application:
For composite industries and electronic industries.
Specifications:
| Metric | English | Sizing | Density | Bobbin | Legnth | Net weight |
| Tex | m | kg | ||||
| EC5 5x1x2S168 | EC D450 1/2 4.2S | Y5 | 22.4 | 4K | 166000 | 3.72 |
| EC6 33x1x2S112 | EC DE150 1/2 2.8S | Y5.S508 | 66 | 4K | 60000 | 3.96 |
| EC6 68x1x2S112 | EC DE75 1/2 2.8S | Y5.S508 | 137.4 | 4K | 26700 | 3.67 |
| EC6 75x1x2S112 | EC DE67 1/2 2.8S | R126 | 150 | 4K | 24200 | 3.63 |
| EC7 22x1x2S112 | EC DE225 1/2 2.8S | Y5 | 45 | 4K | 62000 | 2.79 |
| EC9 33x1x2S112 | EC G150 1/2 2.8Z | Y1 | 66 | 4K | 60000 | 3.96 |
| EC9 68x1x2S112 | EC G75 1/2 2.8Z | Y1.S508 | 137.4 | 4K/8K | 26700/62000 | 3.67/8.52 |
| EC9 136x1x2S112 | EC G37 1/2 2.8Z | Y1 | 272 | 4K | 13500 | 3.67 |
| EC9 136x1x3S112 | EC G37 1/3 2.8Z | Y1 | 408 | 4K | 9000 | 3.67 |
| EC9 136x1x4S112 | EC G37 1/4 2.8Z | Y1 | 544 | 4K | 6750 | 3.67 |
| EC9 136x1x5S112 | EC G37 1/5 2.8Z | Y1 | 680 | 4K | 5400 | 3.67 |
| EC9 136x1x6S112 | EC G37 1/6 2.8Z | Y1 | 816 | 4K | 4500 | 3.67 |
| Metric | English | Sizing | Density | Bobbin | Legnth | Net weight |
| Tex | m | kg | ||||
| EC5 11 Z40 | EC D450 1/0 1.0Z | Y5 | 11.2 | 2K | 166000 | 1.86 |
| EC6 33 Z28 | EC DE150 1/0 0.7Z | Y5.S508 | 33 | 4K | 12000 | 3.96 |
| EC6 68 Z28 | EC DE75 1/0 0.7Z | Y5.S508 | 68.7 | 4K/8K | 53500/124000 | 3.67/8.52 |
| EC6 75 Z28 | EC DE67 1/0 0.7Z | Y5.S508.R126 | 75 | 4K/8K | 48500 | 3.64 |
| EC6 136 Z28 | EC DE37 1/0 0.7Z | Y5.S508 | 136 | 4K/8K | 27000/62000 | 3.67/8.43 |
| EC7 22.5 Z40 | EC E225 1/0 1.0Z | Y3.Y5 | 22.5 | 4K | 125000 | 2.81 |
| EC7 45 Z40 | EC E110 1/0 1.0Z | Y3.Y5 | 45 | 4K | 82000 | 3.69 |
| EC9 33 Z28 | EC G150 1/0 0.7Z | Y5.S508.R126 | 33 | 4K | 124000 | 4.09 |
| EC9 68 Z28 | EC G75 1/0 0.7Z | Y5.S508.R126 | 68.7 | 4K/8K | 53500/124000 | 3.67/8.52 |
| EC9 75 Z28 | EC G67 1/0 0.7Z | Y1 | 75 | 4K/8K | 48500 | 3.64 |
| EC9 110 Z28 | EC G45 1/0 0.7Z | Y1.R | 110 | 4K/8K | 34000/74000 | 3.74/8.14 |
| EC9 136 Z28 | EC G37 1/0 0.7Z | Y1.R | 136 | 4K/8K | 27000/62000 | 3.67/8.43 |
| EC9 204 Z20 | EC G25 1/0 0.5Z | Y1.R | 204 | 4K | 18000 | 3.67 |
| EC11 136 Z20 | EC H37 1/0 0.5Z | Y1.R | 136 | 4K/8K | 27000/62000 | 3.67/8.43 |
| EC11 204 Z20 | EC H25 1/0 0.5Z | Y1.R | 204 | 4K | 18000 | 3.67 |
| EC13 272 Z20 | EC K18 1/0 0.6Z | Y1.R | 272 | 8K | 31000 | 8.4 |
