Customized Cost Effective Own Control Panel Cutting Machine CNC Turning-Milling Compound Machine

Product Description

Product Description

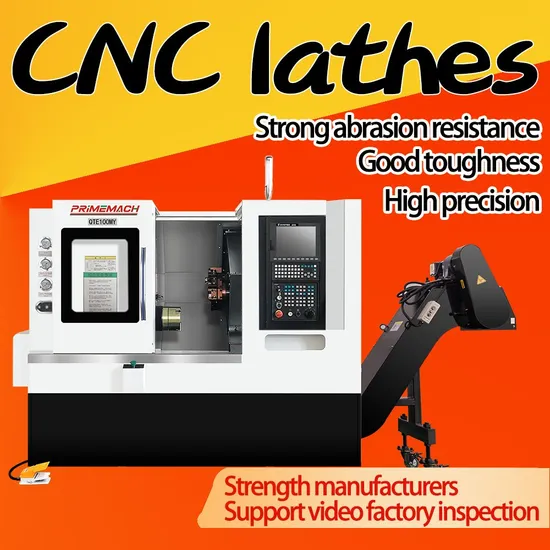

QTE100MY CNC turning and milling complex machine tool is a set of turning and milling functions in one of the high-precision, high-efficiency CNC equipment, suitable for complex parts processing needs, widely used in aerospace, automotive manufacturing, mold processing and other fields.QTE100MY CNC turning and milling complex machine tool with its high precision, high efficiency and multi-functional characteristics, has become an indispensable high-end equipment in modern manufacturing industry, especially suitable for the processing needs of complex parts.
Detail
The mechanical device used to clamp the workpiece on the machine tool, through the rotation and clamping action, to ensure the stability and accuracy of the workpiece in the process of processing
Operation panel of CNC machine tool. Including a display screen, used to display programs, parameters, processing status and other information; There are numerous keys in the middle and bottom, including alphanumeric keys for entering program instructions and function keys for selecting different operation modes.
The internal machining area of a CNC machine tool. The chuck can be seen for clamping the workpiece for processing; Next to the tool holder, on which different tools can be installed, through the program to control the rotation and movement of the tool holder, so that the tool can accurately turn the workpiece, drilling and other processing operations.

CNC control system	SYNTEC22TB
Maximum turning diameter	Φ 500 mm
Max machining diameter x length	300×330mm
Spindle through hole diameter	Φ 56 mm
Maximum bar material machining diameter	Φ 46 mm
Maximum spindle speed	4200rpm
Spindle end form	A2-5
Chuck size	6inch hollow chuck
X axis maximum travel	480mm
X axis fast moving speed	20m/min
Maximum Y-axis travel	±35mm
Maximum z-axis travel	500mm
Z-axis fast moving speed	20m/min
Number of tools installed on the tower	12/15t
Outside diameter tool bar height	20*20mm
Inside diameter Maximum diameter of tool bar	Φ 25 mm
Spindle motor (rated)	7.5 kw
Milling shaft	2.3 kw
Total machine power	25kw
Cooling tank capacity	160L
Machine height	1950mm
Floor area (length * width)	2400*1650mm
Gross machine weight	3200kg
GSK/FANUC system	7.5KW electric spindle
High pressure effluent 30/70Bar	Power seat radial 0°
Feeder, feeder	8inch hollow chuck
Tail seat thimble	Power cutter seat axis 90°
Automatic door	/

Company Profile
Anhui Primacon Intelligent Equipment Co., Ltd. is an Anhui Province SMEs and a national high-tech enterprise. Located in the beautiful city of Tongling, Anhui Province, the company focuses on the research, development, production and sales of multi-axis CNC lathes and machining centers. Introducing advanced technology from Germany and Japan, is committed to improving the quality of machine tools and high level of application, and we also offer automation integration services. Our products are mainly used in fields such as automotive manufacturing, aerospace, mold manufacturing, engineering machinery, and general equipment industry.
The company's main products:
1.High precision CNC lathe HQT series, QTE series; 2.High-precision turning and milling composite series; 3.Vertical, Horizontal, Gantry Machining Center series. We always adhere to the breakthrough innovation, deep plowing expertise, continue to strive forward!
Exhibition
Our Advantages
Certifications
Packaging & Shipping
FAQ
Q: What machining functions do your machining centers support?
A: Our machining centers support drilling, tapping, milling, boring, and turning functions, with multi-axis options (such as 3-axis, 4-axis, and 5-axis) to meet the needs of complex workpiece machining.
Q: What is the precision of your CNC lathes?
A: The machining precision of our CNC lathes typically ranges from 0.001mm to 0.003mm. Depending on the model, higher precision can be customized upon request.
Q: Can the machines be customized according to customer requirements?
A: Absolutely! We support customization of machining range, spindle power, automation level, and fixture and tooling configurations to meet your production needs.
Q: Can you provide automation solutions?
A: Yes, we can provide automation solutions, including automatic feeding systems, robotic arms, and production line integration.
Q: What does your after-sales service cover?
A: Our after-sales service includes providing detailed operation manuals, instructional videos, and remote technical support to help customers quickly learn how to operate the equipment. Additionally, we maintain dedicated service records for each customer to monitor equipment performance and ensure long-term stability. We also supply spare parts and respond promptly to customer inquiries and needs to ensure proper equipment functioning.
Q: What should I do if the machine breaks down?
A: If the machine breaks down, you can contact our after-sales team at any time. We offer remote video diagnosis, phone guidance, and, if necessary, dispatch engineers for on-site repairs.
Q: How long is the delivery time?
A: Standard models usually require 30-45 days for delivery. For customized models, the delivery time may take 60 days or longer, depending on the complexity. The exact delivery time will be confirmed with the order.
Q: How are the machines packaged and transported?
A: Our machines are packaged with waterproof and rustproof materials, reinforced with sturdy wooden crates, suitable for sea and long-distance transportation to ensure the products arrive at your specified location in perfect condition.
Q: What payment methods do you accept?
A: We accept various payment methods, including T/T bank transfers and Letters of Credit (L/C). Please contact us if you have other requirements.
Q: Do you have export experience?
A: Yes, we have been exporting machines to many countries worldwide for years and are familiar with export procedures, including customs declaration, clearance, and providing relevant certificates such as CO, invoices, and packing lists.
