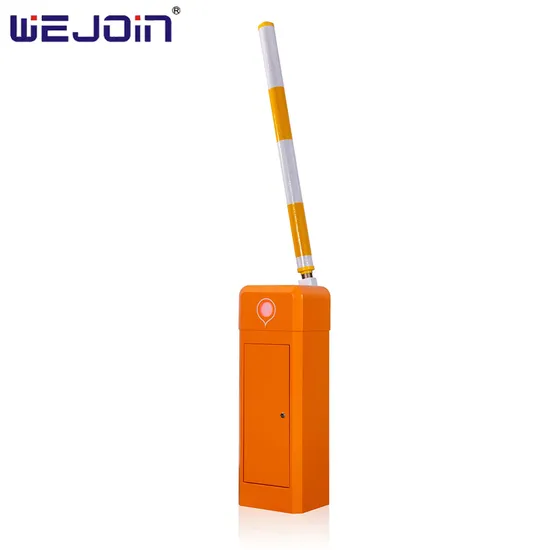

DC Brushless Servo Automatic Straight Arm Boom Barrier Gate for Parking Lot

Product Description

WEJOIN High-Grade Servo Barrier Gate (WJCB01SV) Product Description Product Introduction
This is our newly- produced DC servo barrier gate, which utilizes the updated electronic control technology and machinery processing technology, no limit switch design, to realize non-adjust of mechanism, adjustable speed, automatic speed reduction, ect. In this way, make the barrier operator more steadily and more reliably. This product is highlighted in frequency applications and longer lifetime.
Technical Data

Model	WJCB01SV-H	WJCB01SV-I
Running Speed	1/1.5/2S	3/4/5S	5S	5S	5S	5S
Boom Type	Straight	Straight	90° Folding	180° Folding	2 Fence	3 Fence
Max Boom Length	3.5M~4.5M	4.5M~6M	5M	4M	4.5M	4M
Input Voltage	AC220V±10%, AC110V±10%
Frequency	50/60HZ
Motor Voltage	DC310V
Enclosure Rating	IP54
Working Temperature	-35°C ~ +85°C
MTBF	6000000 times
Traffic Flow Appication	24 hours uninterrupted operation
Max Motor Power	150W
Max Motor Speed	36r/min
Max Torque	240N.m

Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power conaumption, high efficiency and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
9). 4-digit digital tube display, displays more information.
10). NO/NC wire control signal input are optional.
11). Integrated RS485 communication, infrared photocell and loop detector interface. RJ45 network, loop detector, and radar module can be added.


Machine Core
More products show
Optional Accessories

Packing List

Name	Specification	Quantity	Unit	Application
Screw, Nuts, Flat Pad	M12*70	2	sets	Fixing the boom
Boom Fixing Bar		1	pcs	Fixing the boom
Boom Holder Plastic Cover		1	sets	Optional
Cabinet Fixing Bar		2	pcs	Fixing the boom
Expansion Screws	M16*150	4	sets	Fixing the boom
Support Post		1	pcs	Optional
Radio Emitter		1	pcs	Optional
Keys		2	pcs	For cabinet door
Remote Controller		2	pcs
Manual		1	pcs
