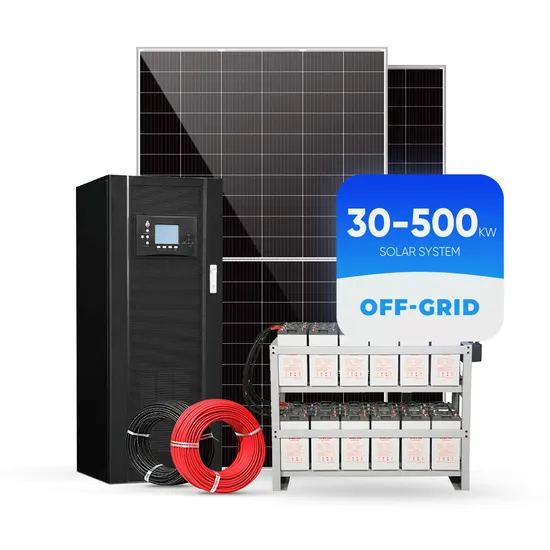

Sunpal Complete off Grid Solar System 35 Kw 100kw 150kw Solar Power Energy System Kit Set

Product Description

Product Description
Warranty
How It Works
What It's Included

Model	SE-30KW-OFF	SE-60KW-OFF	SE-100KW-OFF
Half Cut Mono 560W Solar Panel	55 Pieces	108 Pieces	180 Pieces
PV Combiner Box	5 Input 2 output 1Piece	3 Input 1 output3Pieces	5 Input 1 output 3Pieces
Off Grid Hybrid Inverter Charger	30KVA	60KVA	100KVA
Deep Cycle VRLA GEL Battery	30Kwh	60Kwh	100Kwh
DC Cable 4mm2	500 meter	1000 meter	1500 meter
MC4 Connector	20 Pairs	50 Pairs	90 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	Wire Cable Cutter & Stripper, Disassembly Tool
Model	SE-200KW-OFF	SE-300KW-OFF	SE-500KW-OFF
Half Cut Mono 560W Solar Panel	360 Pieces	540 Pieces	900 Pieces
PV Combiner Box	5 Input 1 output 6Pieces	5 Input 1 output 9Pieces	5 Input 1 output 15Pieces
Off Grid Hybrid Inverter Charger	100KVA/2PCS	100KVA/3PCS	100KVA/5PCS
Deep Cycle VRLA GEL Battery	200Kwh	300Kwh	500Kwh
DC Cable 4mm2	3000 meter	4500 meter	7500 meter
MC4 Connector	180 Pairs	270 Pairs	450 Pairs
Mounting System	Customized Product Based On Installation Roof/Ground
PV Installation Tools	Wire Cable Cutter & Stripper, Disassembly Tool

Half Cut Mono 560W Solar PanelPeak Power Watts: 560WMaximum Power Voltage: 42.06V Maximum Power Current: 12.84A Open Circuit Voltage: 49.75V Short Circuit Current: 13.63ADimensions:2279x1134x35mm Weight:26.9 kgOff Grid Hybrid Inverter ChargerMulti-string PV connected.Inbuilt AC rectifier and MPPT control modules, configured battery parameters by operating interface,self-regulation for charging voltage and current.Hot-swap MPPT modules for easy maintenance and power expansion.Auto access MPP tracking states, be most probable to use PV energy in priority.Deep Cycle VRLA GEL BatteryDG (Deep Cycle GEL ) series is pure GEL battery with 20 years flfloating design life, it is ideal for standby or frequent cyclic discharge applications under extreme environments. By using strong grids, high purity lead and patented Gel electrolyte, the DGseries offers excellent recovery capability after deep discharge under frequent cyclic discharge use, and can deliver 450 cycles at 100% DOD.PV Mounting SystemMounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt. Mid & End Clamps: 35,40,45,50mm L Foot Asphalt Shingle Moount & Hanger Bolt Optional Cable Clip & Tie Optional Ground Clip & Lugs OptionalPV Combiner BoxIP Rating: IP65Rated Voltage: 1000VDCInput cable terminal: 4-6mm2DC Cable & MC4 ConnectorCross Section: 4mm2, 6mm2 OptionalRated Voltage:600VDC(UL)/1000VDC(TUV)Rated Current: 55A,70AColors: Black For STD, Red Optional.Lifetime:≤25 YearsDC & AC Disconnect SwitchIP Rating: IP66Rated Voltage: 1000VDCConnection Type: M20,M25,MC4Rated Current: 16A,20APV ToolsWire Cable Cutter & Stripper,MC3 MC4 CrimperMC4 Connectors AssemblyDisassembly ToolPackaging & Shipping
