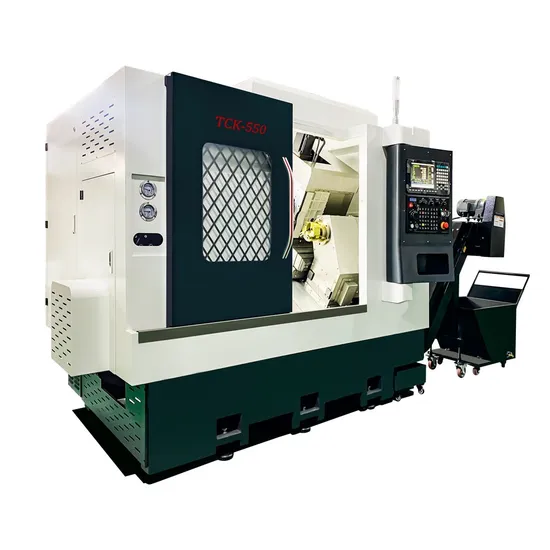

Double Spindle CNC Turning Milling Universal Lathe Machine with Power Turret CNC Lathe with Counter Spindle Tck-550

Product Description

Product Description
Dual spindle cnc lathe machine with counter spindle
Model Number : TCK-550
* Stable performance and excellent structure
* High precision
* Automatic feeding
* Easy to operate
* Customized service provided
Detailed Photos
Quality CNC system Siemens 828D
Comply with the ergonomic interactive interface to complete the precision machining requirements . (Fanuc/Mitusubishi/Siemens/Syntec)
Choose Materials Carefully
Keep improving and use high-quality materials to make the machine last longer.
Quality castings
The base is cast as a whole, with a 45-degree inclined bed, high strength and good shock absorption .
3-jaw chuck (Main spindle:6 inch,counter spindle : 5 inch.)
The chuck of this machine tool is a standard configuration, which can meet the processing needs of most users. Products from other manufacturers can also be configured according to user needs.
Counter Spindle


Driven Turret with BMT45 tools
Specifications :

Max. turning diameter over bed	Φ500mm
Max. turning diameter over slide	Φ200mm
Max. machining diameter (disc workpiece)	Φ300mm
Max. machining length	300mm
Maximum bar through hole diameter	Φ45mm
Z-axis travel	320mm
X-axis travel	180mm
Y-axis travel	±50mm
X/Y/Z-axis fast move	24/24m/min
X/Y/Z-axis servo motor	1.8/1.8/1.8kw
Spindle nose	A2-5
Spindle through hole diameter	Φ56
Spindle max. speed	4500rpm
Spindle power	7.5~11kw
3-jaw chuck	6"
Power Turret with Live Tool	15 stations
Live Tool Speed	6000rpm
Tool Diameter	Φ16
Distance from spindle center to ground	1010mm
Distance from spindle center to front door	450mm
Positioning accuracy	±0.005mm
Repeat positioning accuracy	±0.003mm
Bed slant	30°
X-axis linear rail	35mm roller type
Z-axis linear rail	35mm roller type
X-axis screw/pitch	Φ32mm/10mm(double nuts)
Z-axis screw/pitch	Φ40mm/10mm(double nuts)
Center height of turret	80mm
Machine Size	2850x1865x2080mm
Machine weight	4200kg
Main Components Brand
Controller	Syntec in Taiwan
X/Y/Z-axis servo motor	Syntec in Taiwan
X/Y/Z-axis Ball Screw	TBI in Taiwan China
X/Y/Z-axis Guide Rail	Hiwin/PMI in Taiwan
Spindle Bearings	NSK in Japan
Power Turret	Swift in Taiwan
3-jaw chuck	BDEFU
Hydraulic power unit	Menfu in Mainland China
Electric Counter Spindle Information
Counter spindle nose	A2-4
3-jaw chuck	5"
Counter spindle speed	6000rpm
Spindle Power	11kw
Distance between two spindle noses	680mm(A2-5/A2-4)
Reverse machining length	120mm
Max. machining diameter (disc workpiece)	Φ200mm
Linear guide rail	35mm roller type
Accessories
Foundation pads	1set
Chip conveyor with cart	1set
Chuck wrench	1pc
Tool kit	1pc

FAQ
Q1: How can I choose the most suitable machines ?
A1: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .Q2: What's your main products of your company?A2: We specialized in CNC Milling Machine ,Vertical Machining Center ,Lathe Machines , Drilling Machine, Tapping Machine and so on.Q3: What's the Payment Terms ?A3: T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight.Q4: What's the MOQ?A4: 1setQ5: What's the warranty?A5: One year.
